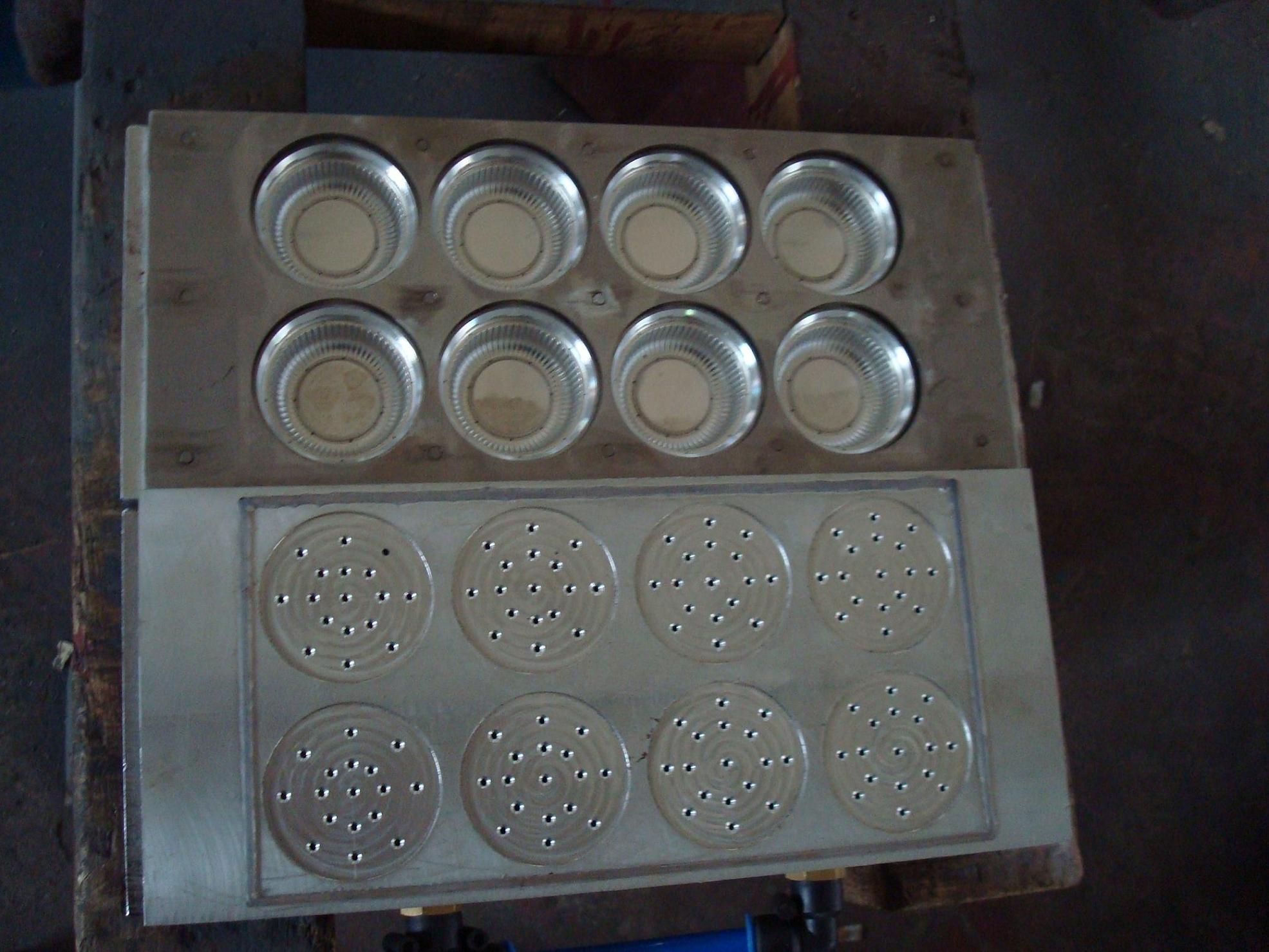

This AL. Mould is our Cover Forming Machine's mould.
|
Model |
HQ-60 |
HQ-200 |
|
General Stroke |
100mm |
100mm |
|
Working Stroke |
5mm |
5mm |
|
Supercharge Ratio |
1:22 |
1:72 |
|
Air Consumption |
0.0095m3/(min) |
0.054m3/min |
|
Power Consumption |
100w/hr |
100w/hr |
|
Max. Mould Size(mm) |
510×670 |
700×1300 |
|
Air Pressure |
0.6-1.0Mpa |
0.6-1.0Mpa |
|
Power |
220v 50Hz |
220v 50Hz |
|
Speed Force(kgf) |
824-1374 |
1752-2920 |
|
Returning Force(kgf) |
1580-2638 |
4500-7540 |
|
Punch Force(T) |
38.4-66 |
128-220 |
|
Weight(kg) |
2000 |
6000 |
|
Dimension(mm) |
1220×1200×2050 |
3420×1500×2100 |
Ruian Donghang Packing Machinery Co., Ltd. Which is a professional manufacturer more than 15years as well as plastic thermoforming machine, the innovative development and the pursuit of perfect idea, we had successed produced Negative Forming(Vacuum) Machine, Hydraulic Vacuum Forming Machine, Foam EPS Thermoforming Machine, Hydraulic Cutting Machine, Hydraulic Cover Forming Machine, Plastic Cup Curling Machine and Cup Counting Machine, also together with moulds.
We has passed the CE Certification and has obtained ISO9001 quality system certificate which combined design, development, manufacture, installation and service in to system., in strict accordance with quality standards production. We have won the honor and good image in manufacture industrial, our products are well sold throughout the country and exported to East Asia, Southeast Asia, Europe, Middle East, Africa and South America and so on. "QUALITY+SERVICE==SUCCESS"is our consistent aim, we sincerely cooperate with clients from home and abroad, old and new to develop commonly hand in hand!
For further information on our products or cooperation opportunities, please contact us at any time. We look forward to hearing from you soon.
