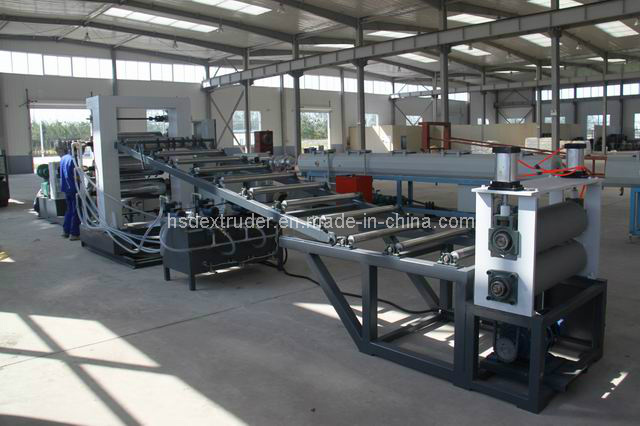

Cross-Linked Polyethylene Heat Shrinkable Sleeve Extrusion Line The heat shrinkable sleeve production line composed by Heat shrinkable sleeve basic film extrusion line and Adhesive coating line.
The product is mainly used for heat shrinkable sleeve production, then used on petrolem pipeline anti-corrosion, steel pipe anti-corrosion, electronic cables protection and drainage/sewage pipeline joint.

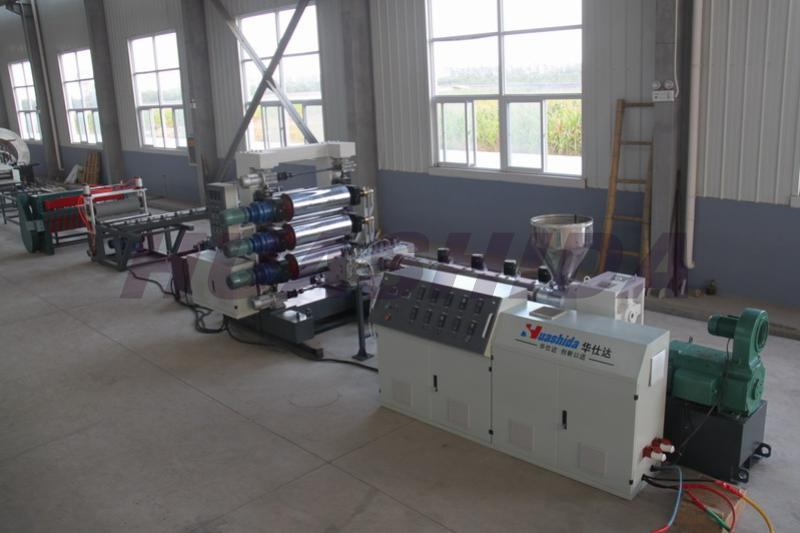

Heat shrinkable sleeve basic film extrusion line:
The line is mainly used for the production of heat shrinkable sleeve substrate. With the unique design die mold, can produce a variety of sheets and plates. Daily output is 2-4 tons.

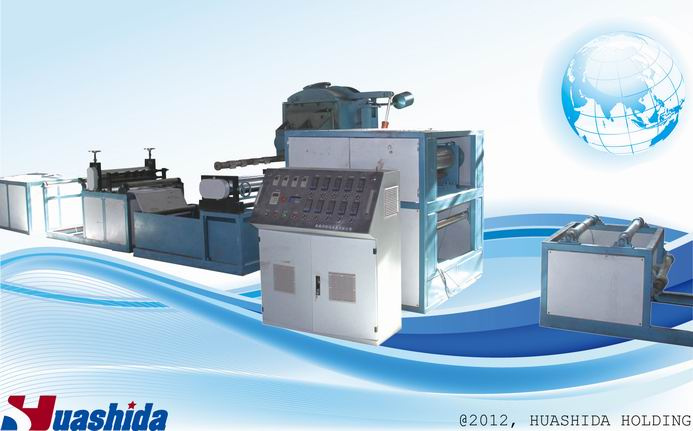

Adhesive coating line:
1. Unique design of the reactive mix machine, caoating and tensile integration, stable and reliable performance.
2. Specific technical line drawing, stretching equipment without expensive and complex.
3. Stable equipment, mature technology, the production rate of heat shrinkable than the two-step with the cost savings of more than 30%.
PE Sheet Extrusion LineEVA Gluing machine
PE Heat Shrinkable Sleeve for kinds of Pipes
Model |
Thickness |
Wide |
Speed |
Capacity |
Installed capacity |
SJ65/650 Model |
0.5-2mm |
70-650 |
0-5m/min |
150kg |
90kw |
SJ90/1200 Model |
0.5-1mm |
300-1200 |
0-8m/min |
300kg |
160kw |
Qingdao Huashida Machinery Co., Ltd. Was established in Qingdao High & New Technology Industrial Area.
HSD have twenty years plastic machinery and related products manufacture experience, structured working attitude and responsibility. Assimilate and master technology introduced from abroad, we developed series of high effective single screw extruder.
As a professional manufacture in plastic pipe and plastic sheets machinery in China, Qingdao Huashida Machinery Co., Ltd. is specialized in designing and manufacturing plastic extrusion lines as well as welding equipments etc.
Our products have exported to many countries, such as Japan, Taiwan, Russia, Uzbekistan, Kazakhstan, Turkey, Thailand, Brazil, Saudi Arabia, Egypt, South Africa, India etc.
