Cup Thermoforming Machine (Titing Mould)

Cup Thermoforming Machine (Titing Mould)
Price: Negotiable/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Western Union
Applicantation: For all kinds of PP, PS, HIPS, PVC, PET, PLA cup, bowl, box, square container...

Fully automatic  FORMING+CUTTING+COUNTING+STACKING

I. FEATURES

1. PLC controlled and touch screen
2. Servo motors for sheet feed, plug assist, cup catching, cup stacking
3. Full automatic to save production and labor cost
4. Fast feed to meet high level production
5. Mould memory function
6. Automatic forming, cutting, counting, stacking.

II. ELECTRICAL BRAND

1. Taiwai Delta inverter
2. Omron PLC controller
3. Taiwan EV HMI
4. Korean LG air switch
5. Yamatake temperature controller
6. Schneider relay, contactor, buttons
7. SMC Electromagnetism valve
8. FESTO cylinder
9. Ireland ceramic heater
10. Japan Yaskawa servo motors

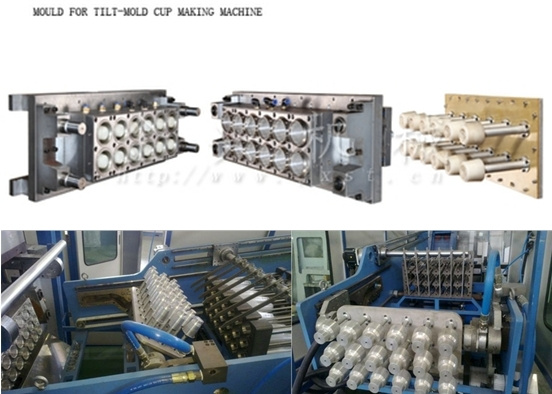

III. MACHINE & MOULDS
IV SAMPLE

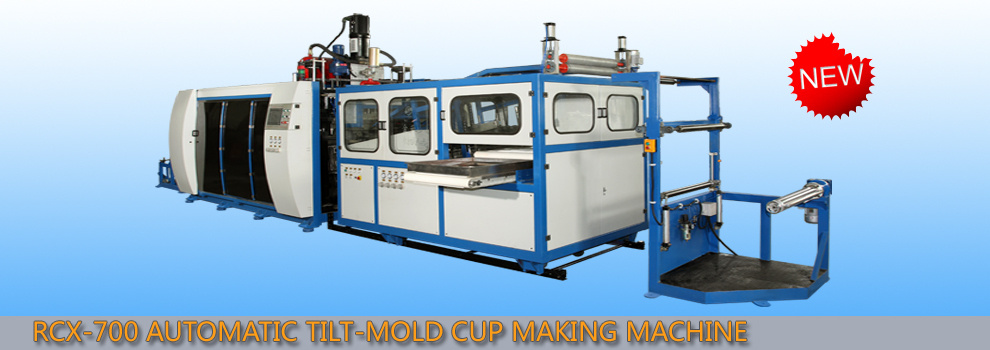

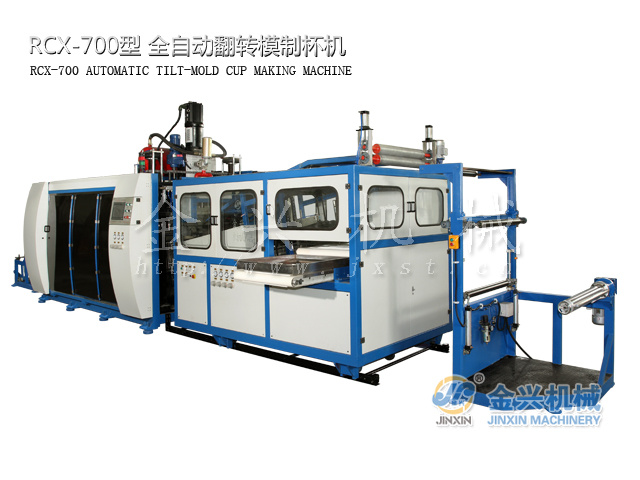

  Mode  RCX-700 Tilt-Mould Cup  Making Machine
  Available Material  PP, PS, PVC, PET, PLA
  Max. Forming Area(mm)  700*350
  Max, Depth(mm)  160
  Sheet Thickness(mm)  0.3-2.0
  Max. Speed(cycles/min)  28
  Power for Sheet  Feed Motor(kw)  5
  Power for Main Machine(kw) 11
  Power for Plug Assist(kw)  11
  Total Heating Power(kw)  120
  Air Wastage(L/min)  ≥ 2500
  Water Wastage(L/min)  50-100
  Dimension(mm) 14000*3500*3300
Prod Model: RCX-700
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Guangdong Jinxin Machinery Co., Ltd. is a private-owned high-tech enterprise specializing in design, manufacture and distribution on plastic packing machine and food packing machine with over decade experiences. With the excellent engineer team, advanced digital processing equipments and nearly 10, 000M2 standard factory, Shantou Jinxin Machinery Co., Ltd is outstanding within the competitors and famous in the filed.

The major products of our company are: Automatic hydraulic cup making machine, Automatic cam cup making machine, Plastic sheet extrusion machine, Multi-layer plastic sheet extrusion machine, Automatic cup overlapping machine, Curved offset surface printing machine, BOPS thermoforming machine, Vacuum absorbing machine, Six-unit automatic bottle blowing machine, Automatic filling and sealing machine, Series sucker making machine, etc. (All equipments can be customized. ). Our products have already obtained more than 10 patents which is outstanding within the counterparts and enable our machines being sold to Europe, South America, Africa, Middle East, and Southeast and etc. With the strategic cooperation with the famous domestic enterprise and excellent selling record both domestic and abroad, "Jinxin" is a well-known brand in the market.

Our motto on production is "Quality is the life of an enterprise", so that we strengthen the management on production and administration by referring to the international management mechanism which has enable us passing the ISO9001: 2008 certificate. "Customer and market are our center and orientation" is our selling motto, so that we keep improving on our products in order to assist the customer obtain the max. Benefit and strength their competition. We will keep on designing and manufacturing the high tech machineries by focus on the latest development of the plastic and package machineries and try to be the best enterprise in the field of plastic machineries.
