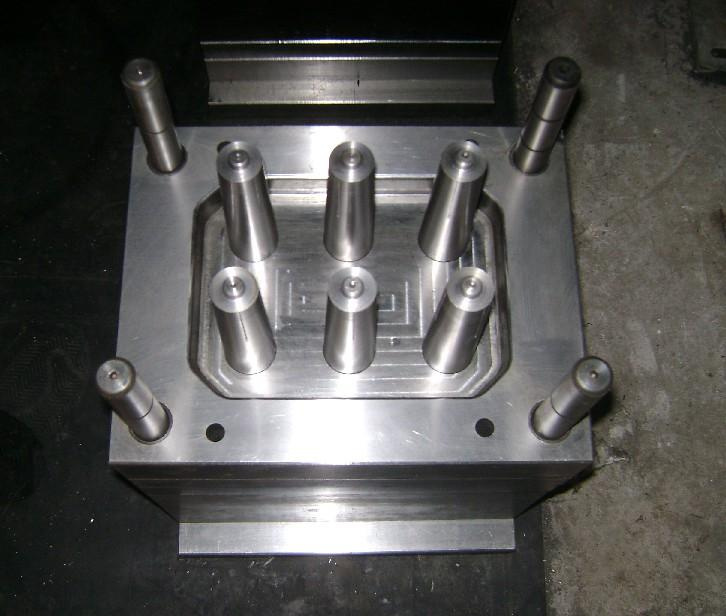

Custom Industrial Injection Plastic Moulding

Custom Industrial Injection Plastic Moulding
Price: US $ 2000-6000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Money Gram,Western Union
Injection Plastic Moulding

Custom Industrial Injection Plastic Moulding

We are professional mould manufacturer and as well as produce products for more than 10 years.
SGS certification we got

Company brief introduction:

1. Over 10 years experience
2. Highly qualified engineering team
3. Competitive price
4. High-tech development direction
5. SGS certification

Mould description:
SGS certification
1. Steel of Cavity and core: 2738
2. Mold base: LKM
3. Cavity: 1x1Cavity
4. Mold gate way: Yudo hot runner
5. Cooling system: Enough cooling
6. Surface: Mirror polishing
7. Tolerance: 0.02mm, 2D/3D control
8. Mould life: 1, 000, 000 shots
9. Finishe time for first sample: 40 days.

Key Specifications/Special Features:

In order to make sure doff automatic and without any eject mark, must be arrange high Polish for this Plastic Injection Mould/Mold. This rack choose PP material, then advice choose hard enough steel
1. Customized designs, sizes and frames are accepted
2. Mould steel: NAK80 forging for cor and cav, LKM for moUld base (customized)
3. Mould treatment: Final treatment for cor and cav plates by vacuum queching to 38 to 42deg; (whole plates 0.3mm hardness)
4. Mould cavity: 1*1
5. Mould software: Choose UG for 3D design, AutoCAD for 2D drawing, mould flow for runner analyze

6. Mould size: 600 x 500mm (depends on client's machine upon changing mold size)
7. Mould fix machine: 350T on injection molding machine
8. Plastic material: PP (on normal choose PP)
9. Mould cycle time: 32 seconds/shot (without cool water when test this mold)
10. Mould doff way: Automatic by ejectors and air spring (Hasco standard)
11. Mould lifespan (minimum): 1, 000, 000 shots

12. Mould base: Copy standard mold base
13. Mould gate way: Hot runner (customized)
14. Mould packing: Standard wooden case
15. Minimum mould order should be one set
16. Mould shipment will be arranged within seven days after confirm amples and received balance
17. After product, if needs long time stay, should put oil (butter mix benzene) on the cor and cav, slider's surface prevents rust, with free spare parts during mould minimum life and technical Aegis.

1) We can provide plastic mould for various parts according to your requirements
2) We own CNC processing centers, CNC spark working machinery and various advanced mould tooling equipment. We also have established a CAD / CAM / CAE mould design and development center.
3) Our quality, price, after sale services are really competitive
4) Our range covers from eletrical accessory, auto parts, household appliance, computer accessory, medical appliance, car accessory, digital&security parts ect.
Name Plastic injection mold
Specification Depends on customer's requirements
mould material S136,45#,P20,718H,2738,2344 etc.
Mould  Base  Material  LKM,FUTABA,HASCO etc.or as per customer's requirement.
Cavity Single cavity,Multi Cavity,based on customer's requirement.
Runner Hot/cold
Mould life 500,000-100,0000shots
Surface treatment Powder coating, polishing, chrome plating
Color White,black or as per customer's requirement
Packing  Inner-Plastic Bag; Outer -Standard Carton Box.
Design software CAE Moldflow,UG,PROE,CAD etc.
File Format Solidworks,Pro/Engineer,Auto CAD,PDF,JPG
Equipments CNC,EDM,ArgieCharmilles,Milling  Machine,3D CMM,Projector,HG,   Injection Machine
Working Process Stamping, deep stamping, bending, punching, threading,welding, tapping, riveting
Applications All kinds of cars, machinery, home appliance, electronic products, medical devices, stationery, computers, power switches, miniature switches, architecture, commodity and A/V equipment, hardware and plastic molds, sports equipment and gifts etc
Quality Control Conducted by ISO9001
Inspection IQC, IPQC,FQC,QA
Service Warm and quick response service provided by the professional Export Sales Team with many years' experience in handling exports to the USA, Europe, Japan and other countries and regions.
Delivery time 35-60days
Prod Model: WS-65NK
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Plastic Material: Any Kinds Are Available
Surface Finish: Polishing and Texturing Available
Dimension Tolerance: ISO 2768 Unless Specified
Material Certificates: RoHS,UL,Reach,Pah and MSDS Available
Mould Standard: Hasco,Dme and Misumi Available
Material Properties: Flame Retardant,UV Resistant Available
Secondary Processing: Printing,Plating and Prainting Available
Quality Certificates: ISO 9001:2008
Shaping Mode: Injection Mould
Application: Hardware
Installation: Fixed
Process Combination Type: Compound Die
Wishsino International Group Ltd.(Shenzhen), is a group of team to serve mold tooling and injection molding by OEM\ODM\New Concept Eruption, strong R&D proficiently performs project design and development, engineering and troubleshooting, plastic and metal.

WISHSINO, founded in 2001, located in Shenzhen, southern part of China, neighboring HongKong, very convenient with transportation and shipping.

WISHSINO, shown itself to all over the world as professional manufacturer of injection mold and plastic parts:

1. Tooling workshop, equipped with CNC, EDM, lathe, wire-cutting machine, grinding machine, drilling & boring machines, etc, professionally tool and manufacture molds according to customer´'s drawing, samples, tooling drawing can be shown to customers before actual tooling which profiles tooling structure, such as, slides, injection gate, cooling system, insert, cavity status.

2. Injection workshop, 24 injection machines in-house, 20 injection machines with partners, running from 80T~ 1600T, injection weight running from 60g~13000g, can serve all kinds of plastic material, ABS, PC, PP, PMMA, PVC, EVA, etc, overmolding is also done in-house, quality control and punctual production schedule guarantee the leadtime of transportation and shipping without compromising customer's expectation!

3. R&D, strongly staffed with veteran engineers who can proficiently perform product design and develop by OEM\ODM\New Concept Eruption, product ranges from auto field, lab accessories, LCD/LED plastic & electronic, and any other fields, etc, materialize the concept to actual product with lowest cost is the biggest strong-point of R&D's capacity, quick design and feedback in English help move project to success at proudly quick speed.

4. After-market service, our company owns the principle for customer that quality first, customer first, we are responsible for all defects or loss resulted from the goods we manufacture and ship, and correct the method to improve all quality up to or beyond customer's expectation.

5. Stamping partner, can supply all kinds of stamping parts but with competitive price, professional team with strong capacity of sheeting design and manufacture can produce products up to the spec exactly.
