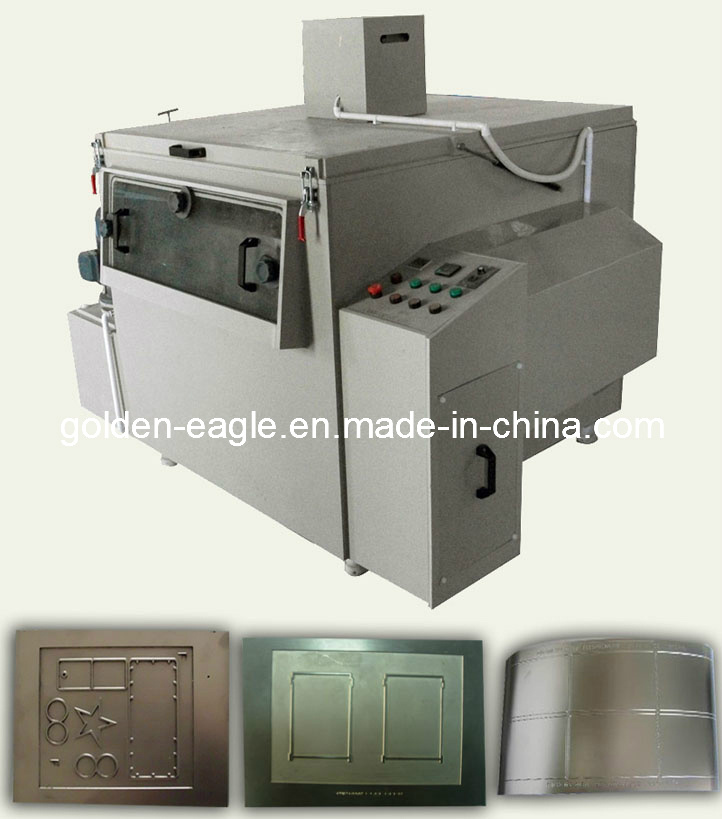

DB5060 Steel Flexible Dies Etching Machine
Power: 7.5KW/380V
Working Size: 500*600mm
Etching type: Vertical spraying
Working Temp: 40~55 degrees
Heat System: Titanium, 3KW
Cool System: Titanium Pipe
Motor power: 4KW/380V
Machine Size: 1950*1350*1550mm
Weight About; 550kgs
Control system: Temperature, Speed, Pressure, Network Filter
Making Process: Dry film photoresist & ink --- expose --- developer --- etching -- stripper --- cleaning --- drying --- CNC engraving ---- nickel & chrome plating --- finished
Introduction:
1. Flexible Dies Etching machine is a photoengraving machines for steel or high-carbon steel plate mold pretreating etching to advance following engraving processing.
2. After etching, the cutting knife-edge and knife depth is etched out.
3. Then the following CNC engraving Knife sharpening works is easy and fast.
4. It can save lots of unnecessary cost compare to use CNC engraving to working completely.
BeijingGolden Eagle Electronic Equipment Co., Ltd. Was built in 2003, and local Beijing the capital of China. It own a metal crafts company, a metal wet etching processing factory and this photochemical etching machines factory now. Be working in photo chemical etching for more than ten years, we advance by special experience and continual reseach works. We can supply whole processing equipments and support with whole processes technique training. Maily used In metal etching, PCB etching, FPC etching, precision parts etching, flexible Dies & hot stamping dies etching, nameplate & signs etching, decoration plate etching and so on. Material can be stainless steel, copper, brass, aluminum, zinc, magnesium and so on. The past ten years, we sold variety of etching machines to USA, UK, Europe, Middle East, Africa, Australia and many other countrys.
