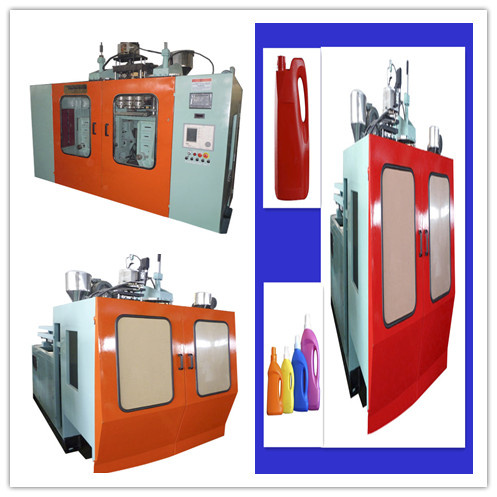

Detergent Bottle Swan Bottle Jerrycan Extrusion Moulding Machine

Detergent Bottle Swan Bottle Jerrycan Extrusion Moulding Machine:
1). Extrusion blow molding machine experience for more than 12 years
2). Machine produce kinds of plastic products, such as bottles, cans, and etc.
3). The famous imported components for machine
4). Taiwan Yuken hydraulic valve for stable working

Detergent Bottle Swan Bottle Jerrycan Extrusion Moulding Machine:
EXTRUSION UNIT
Screw mode: Gradually changed screw with same distance and different deep;
Diameter of screw: φ 50mm, L/D: 24/1;
Material of screw: High quality nitriding steel 38CrMoAlA, with nitriding surface HV≥ 800, brittleness≤ 2;
Material of barrel: High quality nitriding steel 38CrMoAlA, with nitriding surface HV≥ 900, brittleness≤ 2;
Drive mode: Japanese Toshiba converter instrument + Hard gear surface decelerator;
Drive power: 11KW;
Plasticizing capacity: 30Kg/hr;
Temperature controlling: Adopt automatic temperature control model such as Japan Mitsubishi. Temperature controlling precision: Various ± 1%;
Mode of heating: Cast-aluminum heater with heater preserving and protecting cover of stainless steel;
Heating power: 10.8KW;
Zones of heating: 3 zones;
Mode of cold: Automatic blowing, three blowers. Power: 90W× 3;

DIE HEAD SYSTEM for Detergent Bottle Swan Bottle Jerrycan Extrusion Moulding Machine:
Central-incoming extruding die head;
According to the different plastic product, there is one series of die head for choice, such as double die (center distance: 130mm), Tetra-die (center distance: 75mm);
Mode of heating: Adopting heaters made of stainless steel;
Temperature controlling precision: Various in ± 1
Heating power: 4.2kw;
Temperature control: Automatic temperature control model such as Japan Mitsubishi Temperature controlling precision: Various in ± 1%;
Max annular diameter: 75mm;

CLAMPING UNIT
Single station with high-precision guide and large arm cylinder axle;
Clamping force: 38KN (max);
Platen opening stroke: 130~370mm;
Platen size: 280× 370mm;
Max mould size(W× H): 350× 370mm/205× 600mm;
Mould thickness: 135~210mm;

CUTTING DEVOICE
High speed electrical heating cutter is equipped;

HYDRAULIC SYSTEM
The whole hydraulic system adopts Japanese YUKEN components and proportional controlling circle;
Import hydraulic valve, seal and proportional control;

ELECTRONIC CONTROLLING
U. S. A. AMERSON PLC + Taiwan HITECH LCD monitor + MITSUBISHI Automatic temperature control model + other electronic parts, such as LG\OMORON, etc;

ENERGY EQUIPMENT
Compress air: Pressure: 0.6Mpa, currency: 0.4m3/min;
Cold water required: Pressure: 0.2~0.3Mpa, currency: 35L/min;

ELECTRIC SOURCES
According to the voltage condition in your factory;

2. Main characteristics of High Quality Detergent Bottle Swan Bottle Jerrycan Extrusion Moulding Machine:
1). Accumulator head, single layer, the capacity is up to 230L jerrycan, drum ans etc products.
2). It process the material as HDPE, PP, ABS and etc.
3). Power supply: 380VAC, 50Hz (depending on client's county ).
4). The machine is mainly composed of extrusion system, die head system, clamping system, hydraulic system and electrical systems

General Information for this Detergent Bottle Swan Bottle Jerrycan Extrusion Moulding Machine:
Extrusion system: Screw: Specially designed based on material's trait, High quality nitriding steel 38CrMoAlA, with nitriding surface HV≥ 800, brittleness≤ 2.
Die head system: Accumulator die head, single cylinder, central injection, vertical fist in first out design, accumulator channel slick; Slip parts like injection piston and cylinder made with different material and technique, work balanced and reliable.
Clamping system: Fixed clamping system, double diagonal tie bar single cylinder central clamping, wider space for the mould, install and dismantle the mould easily, linear roll guide rail.
Hydraulic system: Adopted proportional pressure controlling, with hydraulic valve and pump of Taiwan Yuken, balanced and accurate action, prolonged useful life, sensitive response.

3. Advantages of this High Quality Detergent Bottle Swan Bottle Jerrycan Extrusion Moulding Machine:
1). Adopt energy-saving system which can increase the 18% efficiency.
2). The capacity is15% higher than some others.
3). Power consumption is about 15% lower.
4). All process are well computerized which makes the operation more conenient.
5). Imported hydraulic components which gurantee the stable working for long time.

5. After-sale service:
1). Instruction for Installation and Debugging
Before delivery, FORSTEC takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.
FORSTEC also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer of FORSTEC, provides the engineer with round-trip tickets, accommodation, vehicle and $55 per day salary.
2). User Training
Before delivery, FORSTEC will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.
3). Warranty Period
The warranty period for FORSTEC machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.

6. Main parameters for this High Quality Detergent Bottle Swan Bottle Jerrycan Extrusion Moulding Machine:

1	Screw diameter	50/65/70mm
2	L/D ratio	24:1
3	Screw speed	15-50r.p.m.
4	Drive motor	DC 132Kw
5	DC drive motor controller	Eurotherm  U.K.   SPECIFICATIONS UNITS FSC80D Max container capacity L 10L * 2 Number of die heads Set 1 Machine dimension (L*W*H) M 3.3*2.3*2.6 Total weight Ton 5.5 CLAMPING UNIT Clamping force KN 80 Platen opening stroke mm 150-500 Platen size mm 320*370 Max mould size (W*H) mm 350*370/238*600 Mould thickness mm 153-300 POWER Max drive KW 33 Total power KW 41 Fan power for screw KW 0.14*3 Air pressure Mpa 0.7 Air consumption M3/min 0.9 Average energy consumption KW 23 EXTRDER UNIT Screw diameter mm 70 Screw L/D ratio L/D 24 Plasticizing capacity Kg/hour 80 Number of heating zone Zone 3 Extruder heating power KW 14.2 Extruder driving power KW 22 DIE HEAD Number of heating zone Zone 3 Power of die heating KW 5.7 Max die pin diameter mm 135 Center distance of double die mm 160 Center distance of tetra-die mm 85

We can send technician to install the machine or customer can send technician to our factory for training.
Buyer need to pay air thicket & food & hotels.

Remark:
(a) All specifications and designs are subject to change without notice.
(b) The price of the machine all are in US dollars based on FOB China Port.
(c) The price is base on 380V, 50Hz, 3 Phase, for special power, add additional 5% of all machine.
