Blowing Machine Product desc: Double station(Max. 16L Screw 75), Material: PE \ PP; Hydraulic Pattern, Other choices according to customers' requirements: Multiple Dies, Multiple Layers, Visible Line, Parison Controller

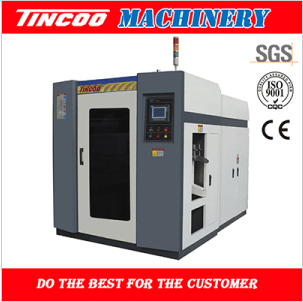

The 2L-16L single-station automatic blow moulding machines include four series of DHS-2LII, DHS-5LII, DHS-10LII and DHS-16LII. The Machine is a single station machine, and suitable for producing high quality container with medium output. It specializes in the manufacture of PE\PP\PVC\TPU\PETA containers of up to 16L, with from one to six fold diehead, for use in the packaging of petroleum, cosmetics, chemicals, pharmaceuticals, food, toys and auto-parts. The clamping system is a high-precision single-station linear guide, extrusion system using a hard gear reducer and inverter imported from Japan. The die head system adopts central-incoming extrusion die made of special steel, imported hydraulic valve and seal parts with proportional control valve. The control system consists of PLC and Human-machine interface imported from Japan, an automatic temperature control module and imported electrical parts
Setting:
Clamping---------Single station+Hight-precision guide+large arm cylinder axle
Extrusion system--Hard gear surface reducer+Japan inverter
Die system--------Central-incoming extrusion die with special steel
Hydraulic system--Japan hydraulic valve seal and proportional control
Control system----Japan PLC+Imported HMI+PLC automatic
Specification |
| DHS-2LII | DHS-5LII | DHS-12LII | DHS-16LII |
Material |
| PE ,PP^ | PE ,PP^ | PE ,PP^ | PE ,PP^ |
Max.container capacity | L | 2 | 5 | 12 | 16 |
Number of die | set | 1,2,3,4 | 1,2,3,4 | 1,2,3,4 | 1,2,3,4 |
Machine Dimension | m | 2.5×1.6×2.4 | 2.9×1.85×2.65 | 4.2×2.95×3 | 4.8×3.2×3.1 |
Total weight | ton | 4 | 5 | 7 | 8 |
Accumulator head |
| DHS-2LII | DHS-5LII | DHS-12LII | DHS-16LII |
Number of die heating | zone | 3 | 3 | 3 | 4 |
Power of die heating | KW | 4.2 | 5.8 | 6-7 | 6-7 |
Max die-pin diameter | mm | 60 | 80 | 140 | 140 |
Center distance of twin-die | mm | 130 | 160 | 240 | 260 |
Center distance of tri-die | mm | 85 | 110 | 160 | 180 |
Center distance of four-die | mm | 65 | 85 | 120 | 130 |
Clamping Unit |
| DHS-2LII | DHS-5LII | DHS-12LII | DHS-16LII |
Clamping force | KN | 38 | 70 | 110 | 155 |
platen opening stroke | mm | 158-410 | 209-510 | 209-620 | 219-600 |
platen size | mm | 290×320 | 350×380 | 460×500 | 500×490 |
Max mould size | mm | 320×320 | 400×380 | 560×500 | 600×500 |
Mould thickness | mm | 160-240 | 210-300 | 220-380 | 210-380 |
Extruder Unit |
| DHS-2LII | DHS-5LII | DHS-12LII | DHS-16LII |
Screw diameter | mm | 50 | 60 | 70 | 75 |
Screw L/D ratio | L/D | 24:1 | 24:1 | 24:1 | 25:1 |
Extruding Volume | Kg/hr | 30-50 | 60-80 | 100-120 | 100-130 |
Number of heating zone | zone | 3 | 3 | 3 | 4 |
Extruder heating power | KW | 3-4.4 | 5-6.6 | 6-8.2 | 7.3-8.6 |
Extruder driving power | KW | 11-15 | 15-18.5 | 22-30 | 22-30 |

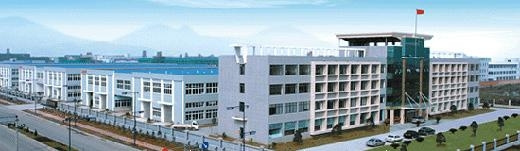

Established in 1989, Zhejiang East Zhouqiang Plastic & Mould Industry Co., Ltd. is located in Huangyan--"Blow Molding Machine Town" in China, with total investment of 11 million US dollars and covers 50 thousand square meters. It is an enterprise professionally manufactures PE Blow Molding Machines, PE Extrusion Blow Moulding Machines, PET Stretch Blowing Machine and Extrusion Blowing Moulds.
