Diamond Die

Diamond Die
Price: Negotiable
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T
Contact Supplier
Kingtech (KTC) Machinery Group Co., Ltd.
Showroom Product Company Profile
All natural diamonds are strictly selected, grinded and polished by ourselves. The production of our wire-drawing dies is based on special technical processes, which result in slighter attrition of our high-quality wire-drawing dies. Also as outcome of these special technical processes, our tungsten carbide enameling dies are characterized to have surpassing leak-tightness. Furthermore, our extrusion tips and extrusion dies are famed for their extremely high concentricity and precision.

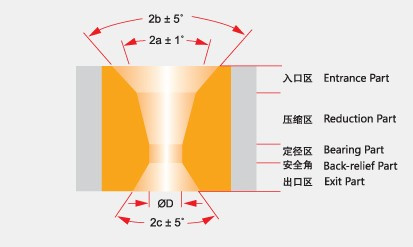

Reduction  Angles  &   Bearing  Length  of  Diamond  Drawing  Dies
Area  reduction Lead/  Zinc/
Argentine  /Gold		 Aluminum  /  Nickel  /  Copper Brass  /  Bronze  /Stainless  steel High  carbon  steel Hot  tungsten
5-8% 14° 10° 9° 8° 10°
8-12% 16° 12° 11° 10° 10°
12-16% 18° 14° 13° 12° 12°
16-25% 22° 18° 16° 15° 14°
25-35% 24° 22° 18° 18° 16°
Bearing  length 0.2  -  0.5d 0.3  –   0.8d

Tolerance  &   Case  of  Diamond  Drawing  Dies

Diameter Tolerance Roundness Case
inch mm mm mm mm
≤ 0.0008 ≤ 0.020 0.0006 0.0003 Φ 25× 6
0.0008  –   0.0019 0.020  –   0.050 0.0006 0.0003 Φ 25× 8
0.0020  –   0.0039 0.051  –   0.100 0.001 0.0005 Φ 25× 8
0.0040  –   0.0079 0.101  –   0.200 0.001 0.0005 Φ 25× 8
0.0080  –   0.0199 0.201  –   0.500 0.0015 0.0008 Φ 25× 8
0.0200  –   0.0399 0.501  –   1.000 0.002 0.001 Φ 25× 10
0.0400  –   0.0590 1.001  –   1.500 0.0025 0.0013 Φ 25× 12
0.0591  –   0.0866 1.501  –   2.200 0.003 0.0015 Φ 25× 14
0.0867  –   0.1299 2.201  –   3.300 0.004 0.002 Φ 28× 16
Φ 30× 16
0.1300  –   0.1810 3.302  –   4.600 0.005 0.0025 Φ 28× 18
Φ 30× 18
0.1811  –   0.2164 4.601  –   5.500 0.006 0.003 Φ 43× 26
0.2165  –   0.3150 5.501  –   8.000 0.008 0.004 Φ 43× 30

Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Shaping Mode: Die-Casting Mould
Product Material: Diamond
Product: Industry
KINGTECH (KTC) MACHINERY GROUP Co., Ltd was founded in 1998, with the head center is located in the financial city of mainland China, Shanghai. Since the establishment of the company, we are professional in the machinery production and sales, here, KTC products include: metal sheeting processing, metallurgical equipment. KTC have 3 factories, with the metal sheet processing in the old capital city of China Nanjing, with metallurgical equipment in Shanghai and Xi'an. Shanghai Yaoli Electrical make Co., Ltd. Xi'an metallurgical equipment Co., Ltd; It is all belongs to the developed city with good transportation condition.
