DESCRIPTION:

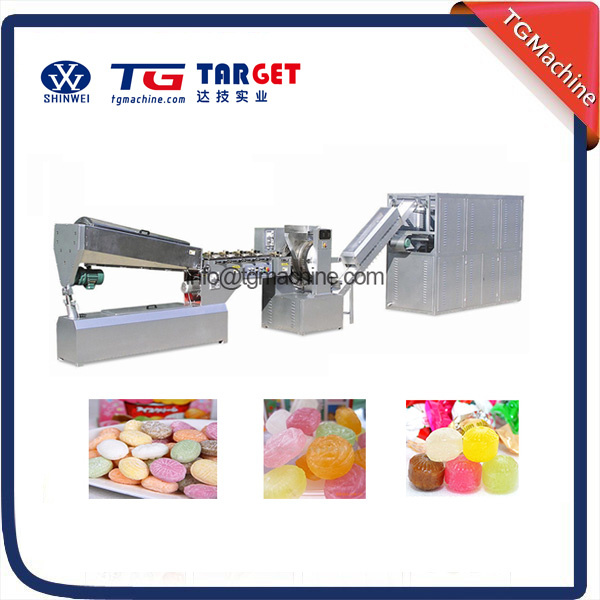

Die-formed hard candy production line
This line can produce all kinds of die-formed hard boild candy.The production line is a complete plant for making different kinds of die-formed hard candies. The quality of the cooked syrup mass is guaranteed by the continuously vacuum cooker, and the die-formed type is a better way to produce different candy shape.
features:
1.Continuously vacuum cooker, guarantee the quality of sugar masses.
2.Special forming style is better for central-filling.
3.Production capacity can be from 400 to 500kg/h.
4.Sanitary structure designed.
5.The central filler, rope sizer and former work together available.
6.Different candy shape can be made depend upon changing of the mould.
7.A better effect of cooling is available by the conveying and cooling system
8.Lollipop can be made when the lollipop former is set instead of hard candy
former.
Main Technical Specifications:
items |
model |
YT200 |
YT400 |
Production
capacity |
Output |
150-200kg/h |
300-400kg/h |
Rated output speed |
5000pcs/min |
1000pcs/min |
Steam requirement |
Steam pressure |
0.5~0.8Mpa |
0.5~0.8Mpa |
consumption |
200kg/h |
300kg/h |
Max.Weight of the candy |
Shell:7g(max) central-filling:2g(max) |
Conditions needed for cooling system |
Room temperature |
20~50oC |
20~50oC |
Humidity |
<55% |
<55% |
Total electric power |
|
18kw/380v/50Hz |
30kw/380v/50Hz |
Length of the whole plant |
|
16m |
22m |
Gross weight |
|
4500kg |
8000kg |
Wooden packing
1.Product production is completed, by the quality inspection department to check
2.After inspection qualified, clean for whole machine
3.Packing: a.Inside the machine put desiccant b.Add 6 cm thick foam plate around the machine,Then, winding stretch film for reinforcement, and combined with bubble wrap c.On wood packaging on the outside of the machine, then use metal reinforcement with steel
4.Container:according to different products for reinforcement
Our Services
After-sale service for abroad customers.
1. Free training of macine installion, operation and maintenance will be provided by our engineer.
2. Some spare parts will be sent with the machine for free. It is available to buy the parts from us forever at low price.
3. We will surpport customers after-service forever by call, email and video etc.
4. If necessary, our engineer is available to go to customer's factory for machine installion and adjustment
Why choose us?
·Nearly 20 years experiences in food processing machinery production, established in 1982.
·We are manufacturer and wholesale of dough kneading machine
·We adopt environment-friendly materials and technology
·We mainly sell stock in bulk. OEM orders are welcome
· We can accept the mix order
contact us
Shanghai SHINWEI machinery manufacturing Co.,Ltd.
SHINWEI MACHINERY was from a company named Shanghai fengxian guyue food machine factory since year 1982which is a state owned enterprise for confectionery, chocolate, biscuit and packaging machinery. The founder of SHINWEI machinery is Mr. Wangzhiwei who is the director of guyue food machine factory till year 1995, after that year, the collective was restructured to Ltd and SHINWEI MACHIERY was established.
Nowadays, SHIWNEI always stand in the leader position in food machinery innovation and developing, the factory area is more than 6000square meters, five modern workshop, over 100 employees and has CNC machine, computer controlled lathe ect, in year 2005, SHINWEI PASSED ISO9001 authentication and most of the products passed European CE authentication. SHINWEI exported its products to east European, south America, Middle East, southeast Asia ect. District since year 2000, good quality products and perfect service makes SHINWEI have very good reputation and popularity.
SHINWEI MACHINERY provides not only the good quality production line for different kinds of confectionary production, but also the whole solution from making research, factory design, machinery installation and production, packing design ect. We are happy to cooperate with the new investor in food industry or experienced manufacturers. For more solution or information, please contact us or visit our website: http://www.sh-xinwei.net
With many years innovation and developing in food machinery design and manufacturing, SHINWEI always createa new and hi-tech products, such as the candy depositing line, after developing, the candy depositing line is controlled by servo driven equipment. SHINWEI's products is consists of hard candy, lollipop, soft chewy candy, jelly gummy candy, toffee candy, mashmallow, liquorice, chewy gum, bubble gum, chocolate production line and different kinds of packing machines, ect...
With many years innovation and developing in food machinery design and manufacturing, SHINWEI always createa new and hitech products, such as the candy depositing line, after developing, the candy depositing line is controlled by servo driven equipment.
SHINWEI's products is consists of hard candy, lollipop, soft chewy candy, jelly gummy candy, toffee candy, mashmallow, liquorice, chewy gum, bubble gum, chocolate production line and different kinds of packing machines, ect...
