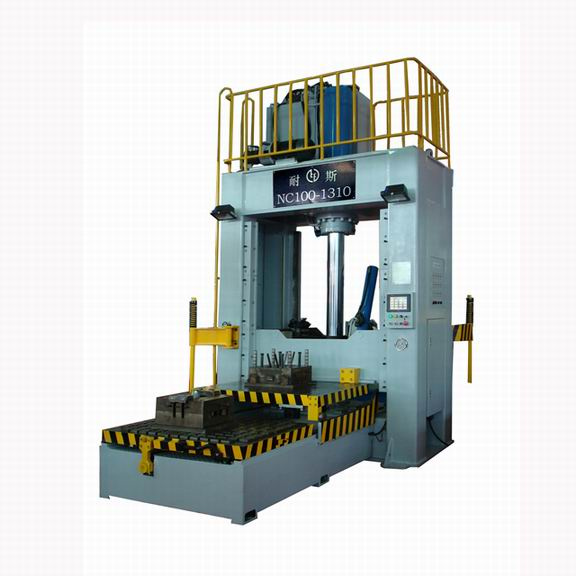

NC series vertical type die spotting machine draws essences of products of the same type at home and abroad, and is the main facility for design and development. This product is mainly utilized for repair and maintenance of various plastic die, hardware casting die and thin-strip tensile forming die. It, boasting convenient, fast and automatic operations, traditional simple fitting of knocking by copper bar, and greatly promotes efficiency and precision of fitting. NC series vertical type die spotting machine adopts PLC control, human-machine interface operations, proportion pressure adjustment and chooses different pressures according to working requirements.
| No. | Specification Items | Unit | NC100 | Note | |
| 1 | Max. Pressing Capacity | T | 100 | Adjustable | |
| 2 | Max. Lifting Capacity | T | 45 | | |
| 3 | Rotating Angle | Degree | 180 | | |
| 4 | Mould opening space | mm | 1300 | | |
| 5 | Upper Clapper Capacity | T | 3 | The weight of upper die can be reversed | |
| 6 | Lower Clapper capacity | T | 8 | | |
| 7 | Magnetic force of upper disk | T | 55 | Permanent magnetism. Power supply could be cut down when magnetizing is finished. The product is power saving and operation safe. | |
| 8 | Magnetic force of lower disk | T | 40 | |
| 9 | Lower table repeatability precision | mm | <0.05 | | |
| 10 | Table size | mm | 1300×1000 | | |
| 11 | Close/Open high speed | mm/s | 70/70 | | |
| 12 | Close/Open l ow speed | mm/s | <25 | | |
| 13 | Pressurizing speed | mm/s | 10 | | |
| 14 | Ejection capacity | T | 3 | | |
| 15 | Ejection distance | mm | 100 | | |
| 16 | Lower table moving distance | mm | 2200 | Cylinder moves out. | |
| 17 | Motor power | KW | 7.5 | Energy saving | |
| 18 | Machine occupied land size | mm | 3830×2680 | | |
| 19 | Machine height | mm | 4250 | | |
| 20 | Machine weight | T | 12 | | |
Our series of products include NC standing die spotting machine, NCW horizontal die spotting machine, NCF die-overturning machine, NCS single-action thin-strip tensile machine, NCS series of multi-function deep hole machine tool, special disks of injection molding machines and open/close hydraulic machines with various kinds of capacity. Our main products are NC series of standing die spotting machines. Two kinds of standing die spotting machine, the magnetoelectric-typed and the press-typed, are mainlyy used in the repairing and replacement of various kinds of plastic die, hardware die and thin-strip tensile die.
These machines are not only time-saving and effortsaving, but also increase wor efficiecy and the precision of compound die. We extract teh cream of same kind of products from home and abroad to give our products new meanings. In terms of technolgy, we are in the leading place in teh same industry, both home and abroad. At present, we have established sound coperative relations with many well-known companies from both home and abroad, such as Shenzhen Wavetronics, Jiangsu Tongming, Guangdian Linshihao, Guangzhou Zhongxin, Yangzhou Jingtai, Guangzhou Dongtai, Toyoda Gosei, Shanghai Daiichi Jitsugyo And Changchun Jialin, etc. High quality, high request, high efficiency is our principle.
