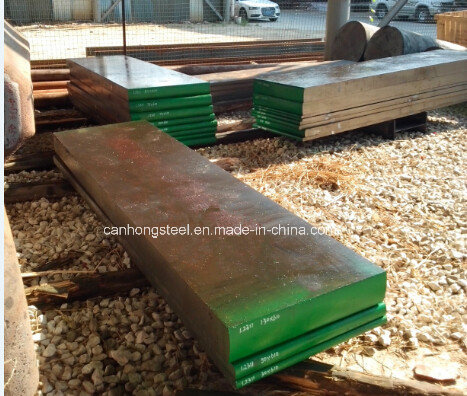

DIN 1.2738/P20+Ni Forged Plastic Mould Steel
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
20/Ton |
| Pay Type: |
L/C,T/T |
1, Product Name: DIN 1.2738/P20+Ni Forged Plastic Mould Steel
2, Specification: 100mm-1000mm thick, 600mm-1400mm wide, 600mm-4000mm long
3, Delivery Condition: Hot Forged+ annealing+ grinded six sides, prehardened or as per customers' request
4, Hardness: Prehardened HRC 30-36 or as per customers'request
5, Applications: Used for various large sized mirro plastic mould.
Precision plastic mould, like, cars accessies, home appliances, electronic equipment plastic mould
6, Characteristics
1)Good machinability and high purity due to prehardenablity
2)Uniform hardness through the whole block
3)Good EDM and polishing performance
7, Delivery days:
Block weight ≤ 13T, 15 days to be delivered;
Block weight >13T, 30 days to be delivered.
8, Production Capacity: 500T/Month
Chemical Composition (%)
C
Si
Mn
S
P
Cr
Mo
Ni
0.35-0.45
0.2-0.4
1.3-1.6
≤0.035
≤0.035
1.8-2.1
0.15-0.25
0.9-1.2
| Prod Model: |
DIN 1.2738/P20+Ni |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Steel |
| Application: |
Electronic |
Established in 1995, Our Factory _FOSHAN SHUNDE CHENCUN CANHONG FORGED FACTORY is located in Chencun Town, Foshan City, which is just 20-minute drive to Guangzhou. With annual output over 5000 tons, CANHONG specializes in forging customerized hot work steel, plastic mould steel, cold work steel, die casting steel, aluminum extrusion profile and forged steel valves, forged steel flanges, forged steel fittings. Also abundant rolled plates, flats in stock. Grades are mainly H13\1.2344\1.2311\1.2738\1.2714. 1.2316\1.2083\P20\S50C\S20C\40Cr\Cr12\Cr12MOV\DC53 in block, round bar, flat, plate, ring, valves, fittings and circles.
Over 18 years, we stick to superior quality and fast delivery(15-30 days), which is not only ensured by advanced equipments like metallographic detection instruments, spectrum analyzers, ultrasonic flaw detectors, harness testers, sawing machines, heating furnaces, 360 degree machine gripper etc, but also by cooperation with China's Best Steel Mill like Xining in Qinghai Province, Baosteel Xiangtan, Shanxi Tai Gang.
In addition, swift and supplementary service of heat treatment, mechanical processing are provided to satisfy customer different needs. From the very beginning to now, CH holds the impeccable philosophy "high quality, friendly service, more competitive price, faster delivery, " to manufacture, sell, process customerized steels. Looking ahead, as CANHONG literally means bright rainbow, we will continue to make it true that Choosing CANHONG brings you great success!
Foshan Kaizhan Metal Materials Co., Ltd, as the selling company for CANHONG FACTORY OF FORGED MOULD STEEL, on one hand is responsible for promoting forged mould steels of all kinds from CANHONG FACTORY itself, on the other hand authorized to abundantly sell forged 1.2344 steel bar, H13 steel bar, 1.2083 block from other Mills. Moreover, sufficient stock of hot rolled steel like 1.2311, Cr12\Cr12MOV\DC53 from China's famous steel mill can definitely meet your requirements. Most products have enough stock and stock list can be immediately offered if needed.
So far, global sales network has been successfully built up. CANHONG products hot sell in most of Chinese provinces. And more exciting is seeing CANHONG products enjoy more reputation in Taiwan, America, Southeast Asia, Middle East and other countries.
We have full confidence that Choosing KAIZHAN gives you countless surprises!
