Disposable Foam Lunch Box Making Machine

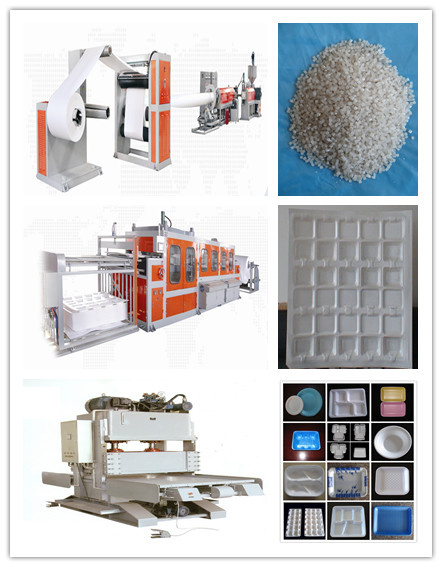

This production line including 5 machines |
ps foam sheet extrusion line | HY-105/120 |
vacuum forming machine | HY-1100/1250 |
cutting machine | HY-1100/1350x2 |
crusher | HY-106 |
recycling granulator | HY-125 |

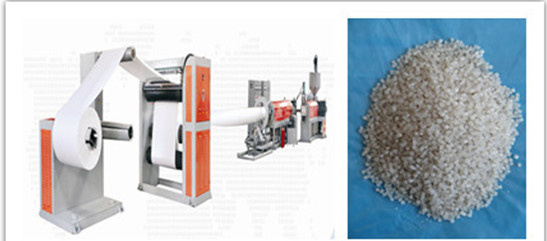

a.ps foam sheet extrusion line
General Polystyrene Granule (GPPS) with additive are mixed in feeding sysytem,
then go into No.1 Extruder---Inject foaming agent--After filter changer, material go into N0.2 Extruder--Extruded from mold head --Cooling and Shaping--Hauling off--Winding --Finished Products-Packing.
Parameter of the machine |
Item | Unit | HY-105/120 |
capacity | Kg/h | 200-240 |
thickness | mm | 1-4 |
width | mm | 640-1080 |
foaming rate | 10-22 |
cooling method | Wind &water cooling |
cutting method | Single |
weight | 10T |
Butane gas pressure | Mpa | 0.9-1.2 |
installation power | kw | 180 |
Installation size | m | 30x6x3 |

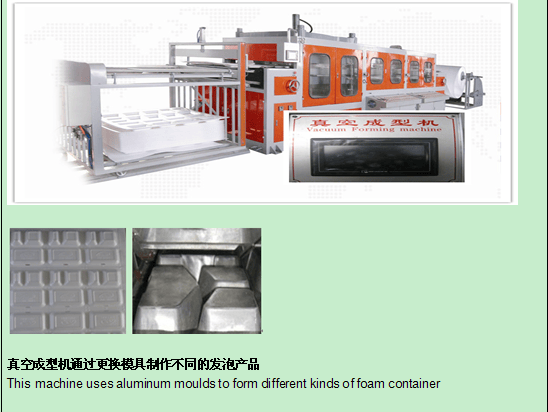

b.vacuum forming machine
PS foam Sheet roller→ standing frame→IR ceramic heater Heating→
Vacuum molding→Cutting each cycle→collecting to cutting machine
Parameter of the machine |
Item | Unit | HY-1100/1250 |
Forming area | mm | 1100x1250 |
Forming depth | mm | 100 |
Production efficiency | s/Die | 3-5 |
Heating area | mm | 1200x2800 |
Installation power | kw | 110 |
Installation size | m | 16x5x3 |

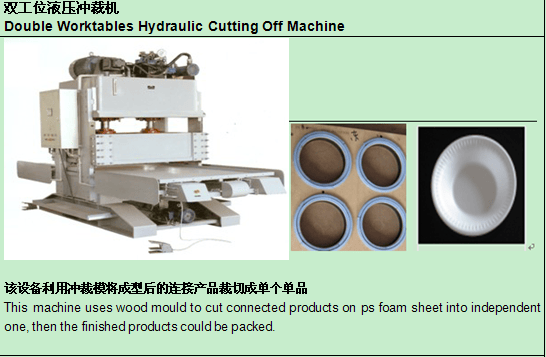

3.cutting machine
The cutting machine is separately working with vacuum forming.
Put the Ps foamed sheet to vacuum forming molding,
after that, put the molding sheet to cutting machine manually.
After cutting, manually can get the final tray and lunch box, then packing buy hand.
Parameter of the machine |
Item | unit | HY-1100/1350x2 |
Cutting area | mm | 1100x1350 |
Cutting height | mm | 150 |
Cutting speed | s/die | 3--8 |
Installed power | kw | 15 |
Cooling water pressure | Mpa | 0.2 |
Installation size | m | 8x5x3 |
Cutting presure | T | 120 |
recycling granulator
PS Foam Scrap Recycling and Granulate Machine is designed to recycle polystyrene
foam scraps into the 100% reusable,
quality recycled resins almost identical to new ones for the same production.
