Quick Details
Processing Type: Foaming Machine, plastic machine
Condition: New
Product Type: Fast Food Box
Place of Origin: Shandong, China (Mainland)
Brand Name: Haiyuan
Model Number: HY-105/120;
Certification: ISO9001:2000
After-sales Service Provided: Engineers available to service machinery overseas
Packaging & Delivery
Packaging Details: | standard packing for export |
---|
Delivery Detail: | about 45-60 days |
---|
Specifications
Disposable take-out containers
1)easy to operate.high efficiency.good quality
2)foam produts for packing
3)full experience
Disposable take-out containers
1.Make PS foam food box,tray,bowl
2.form area:1100x1100mm
3.hot sell
Styrofoam tray/box for fruits, vegetables and fresh meats used in supermarket, packages for the fast food containing
Lunch box,bowls,dinner trays and various types of food containers.
The used tray,box can be recycled

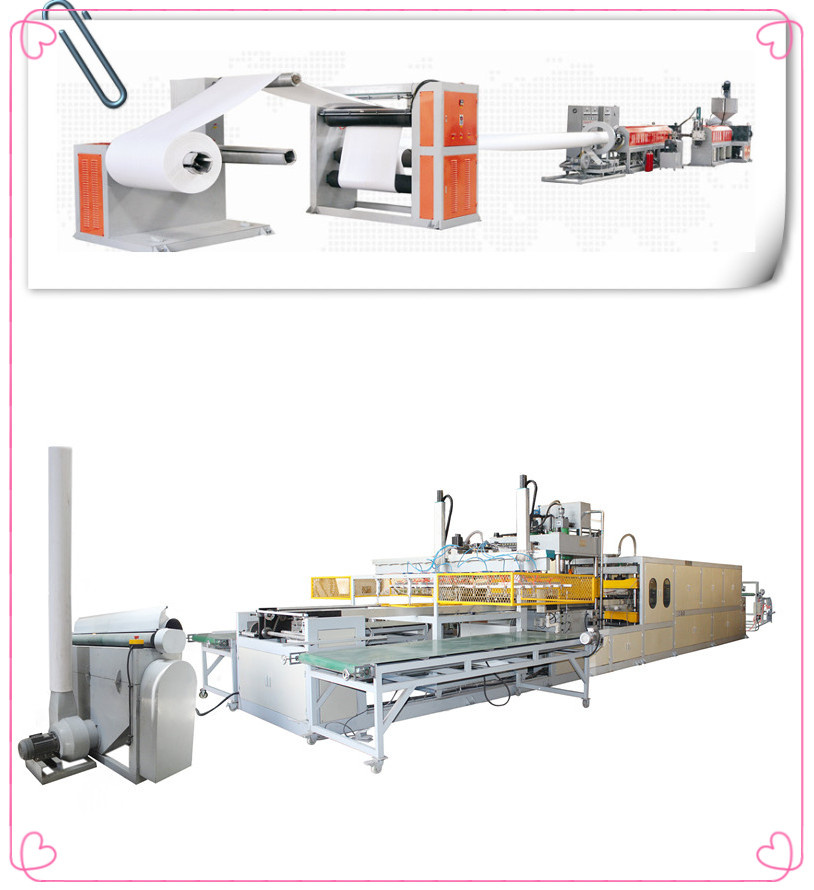

full automatic vacuum forming machine
Fully auto forming and cutting machine: make PS sheet to finished products, such as PS foam tray, PS foam box etc
(we can design mould according to customer requirements)
Type | HY-1100II |
Item | unit | HY-1100II |
forming area | mm | 1100x1100 |
cutting height | mm | 160 |
ps foam sheet feeding .aluminum mould used to shape different kinds of products
Feeding ---heating area (heating by remote infrared ceramic heater)--forming area (vacuum Forming, press forming and synthetically forming) --Pneumatic cutting knife (cut the shaped sheet into pieces) --winding scrap.
Ps foam sheet extruder
Parameter of the machine |
Item | Unit | HY-105/120 |
capacity | Kg/h | 200-240 |
thickness | mm | 1-4 |
width | mm | 640-1080 |
foaming rate | 10-22 |
cooling method | Wind &water cooling |
cutting method | Single |
weight | 10T |
Butane gas pressure | Mpa | 0.9-1.2 |
installation power | kw | 180 |
Installation size | m | 30x6x3 |
Haiyuan Plastic Machinery Co., Ltd is professional in manufacturing PS foam fast food box(one time dishes) production line and plastic package machinery. Meanwhile, we are the supplier of PS fast food boxes and food trays to some chain supermarkets in domestic and aboard. With strong technical strength and abundant experience, basis on advanced technology from domestic and abroad, we have successfully developed and produced various equipments...Haiyuan sincerely welcome the friends all over the world to visit us!
