CNC Hydraulic Die Forging Hammer Max. Striking Energy at 16KJ /1600kgm / 0.64Ton
CNC Hydraulic Die Forging Hammer Max. Striking Energy at 25KJ / 2500kgm / 1Ton
CNC Hydraulic Die Forging Hammer Max. Striking Energy at 31.5KJ / 3150kgm / 1.26Ton
CNC Hydraulic Die Forging Hammer Max. Striking Energy at 50KJ / 5000kgm / 2Ton
CNC Hydraulic Die Forging Hammer Max. Striking Energy at 63KJ / 6300kgm / 2.52Ton
CNC Hydraulic Die Forging Hammer Max. Striking Energy at 80KJ / 8000kgm / 3.2Ton
CNC Hydraulic Die Forging Hammer Max. Striking Energy at 100KJ / 10000kgm / 4Ton
CNC Hydraulic Die Forging Hammer Max. Striking Energy at 125KJ / 12500kgm / 5Ton

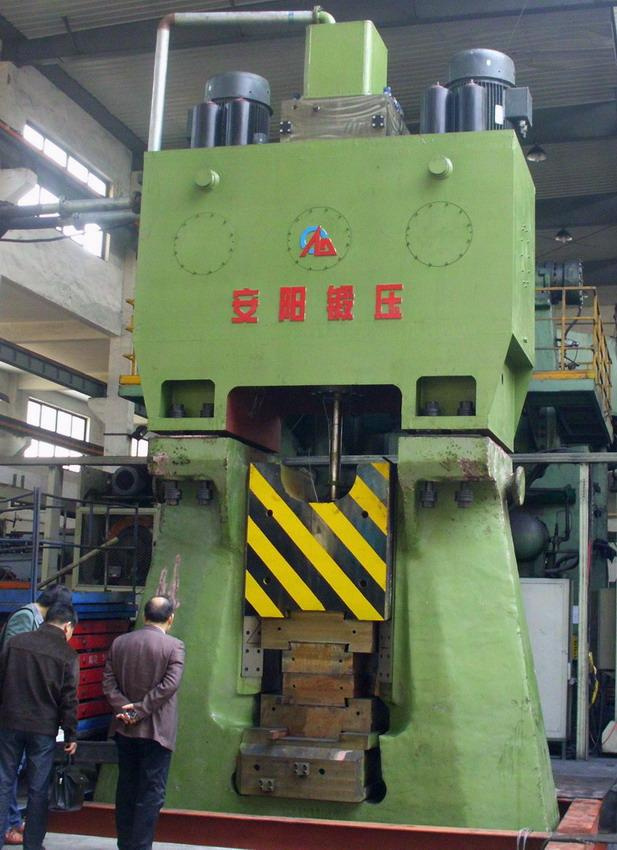

Hydraulic Double Acting Forging Hammer, CNC Hydraulic Die Hammer is a High Technology Hydraulic Die Forging Hammer, Controllable Hitting Energy and Programmable Striking Steps, High Production Efficiency, High Precision Forgings, Energy Saving, Environmental Protection and Reliable Performance.
CNC Hydraulic Die Forging Hammer is Hydraulic Double Acting Forging Hammer, forging hammer Hitting Energy from at 16KJ, 25KJ, 31.5KJ, 50KJ, 63KJ, 80KJ, 100KJ, 125KJ and 160KJ best suitable for precision die forgings, such as automobile forgings, motorcycle forgings, hand tools blanks forgings, surgical instruments forgings, tableware forgings, hydraulic pipe fitting forgings, rigging hardware forgings, scanffolding forgings and various forgings for machinery and engineering fields.
C92K Hydraulic Die Hammer is a High Technology Hydraulic Double Acting Die Forging Hammer, with following features:
1. Programmable Hitting, the hitting procudures are programmable and the data can be storage in the PLC.
2. Precise Hitting Energy Control, the hitting energy is controllable as per metalforming requirements, no extra energy wasted.
3. High Forging Accuracy, U shape frame and X type guide rail guarantee the samll space between guide rail to hammer head, Enhance the forging's precision.
4. Fully Hydraulic Driving to produce huge hitting energy in short stroke, and fast hitting frequencies.
5. Simple and Safe Operating, electrical foot padel switch control, with general control and progammablecontrol, don't need any skills or experience for hammer operating.
6. Low Forging Vibration, hammer equiped with Germany Gerb Vibration Isolator, greatly reduce vibration and noise, doesn't affect neighboring machinery, reduce harm to human greatly.
7. Optimum Forging Die Life, because of hitting energy precisionly control, hitting energy only effected on metalforming, no extra Energy wasted on forging dies.
8. Require Less Floor Spaces.
From Economical Points of View, Hydraulic Double Acting Forging Hammer, CNC Hydraulic Die Forging Hammer with following features:
1. Low Forging Hammer Running Cost and low electricity comsumption.
2. High Production efficiency, high energy using rate.
3. Enhance forgings dies life, reduce forging dies costs.
4. Less skills and experience requirements for workers.
5. Fogings with less and samll flash, saving material expense.
6. Equality forgings in quality, whatever who is the operator.
7. Easy Maintenance, system with self diagnose function, for any problem if happened, will alarmed and will be displayed on the screen, check or replace easy and fast.
8. Suitable for Automatic production line.
C92K Hydraulic Die Forging Hammer widely used in auto forgings, motorcycle forgings, Hydraulic pipe fitting forgings, hardware and hand tools, medical appliances, Stainless tableware, and aviation /spaceflight industry, such as connecting rod, crankshafts, rocker arm, Steering Knuckle Arm, fork gear, stainless fork and knife, surgical scissors etc high precision and special shape forgings.
Model
Main Parameter | C92K-16 | C92K-25 | C92K-31.5 | C92K-50 | C92K-63 |
| Max. Hitting Energy | 16 KJ | 25 KJ | 31.5 KJ | 50 KJ | 63 KJ |
| Weight of Falling Parts | 1080kg | 1700kg | 2100kg | 3400kg | 4350kg |
| Max Hitting Frequency | 90 min -1 | 90 min -1 | 85 min -1 | 85 min -1 | 80 min -1 |
| Max.Hiting Stroke | 640mm | 685mm | 700mm | 745mm | 760mm |
| Main Motor Power | 45kw | 75kw | 75kw | 2X75kw | 2X75kw |
| Machine Weight | 28000kg | 39300kg | 47000kg | 78500kg | 95000kg |
Model
Main Parameter | C92K-80 | C92K-100 | C92K-125 | C92K-160 |
| Max. Hitting Energy | 80 KJ | 100KJ | 125KJ | 160KJ |
| Weight of Falling Parts | 5650kg | 6800kg | 8500kg | 10800kg |
| Max Hitting Frequency | 75 min -1 | 75 min -1 | 70 min -1 | 70 min -1 |
| Max.Hiting Stroke | 810mm | 850mm | 1000mm | 1050 |
| Main Motor Power | 2X90kw | 2X90kw | 2x132kw | 3X90kw |
| Machine Weight | 120000kg | 141000kg | 195000kg | 235000kg |
Manufacturer of Pneumatic Forging Hammer, CNC Hydraulic Die Forging Hammer, Whole Hydraulic Die Forging Hammer, Whole Hydraulic Open Die Forging Hammer, Hydraulic Open Die Forging Press, Forging Manipulator and Ring Rolling Machine.
Anyang Forging Press Machinery Industry Co., Ltd is the Chinese most reputable manufacturer of Forging Hammer, Pneumatic Forging Hammer, Hydraulic Forging Hammer, Ring Rolling Machine, Ring Rolling Mill, Ring Forging Machine, Forging Manipulator, Metal Briquette Press Machine, Metal Briquetting Press Machine, Metal Baling Press Machine, Metal Baler, Hydraulic Riveting Machine, ISO9001 certificated company, with 50 years experience and history in producing forging equipments, products exported to more than 60 countries.
Anyang Metal Forging and Metal Pressing Machinery Include Following:
(1) Pneumatic Forging Hammer Falling Weight at 9kg, 15kg, 25kg, 40kg, 55kg, 75kg, 150kg for art blacksmithing and small free forging items production, such as wrought iron decorations and farm hand tools.
(2) Pneumatic Forging Hammer Falling Weight at 150kg, 250kg, 400kg, 560kg, 750kg, 1000kg and 2000kg best for industrial open die forging works, pre-forming, drawing-out, upsetting, punching, such as forge a disc, shafts forging, ring forging.
(3) Double Arm Hydraulic Open Die Forging Hammer capacity at 1T, 2T, 3T, 4T, 5T, 6 T, 7T, 8T, 10T, 12T and 14T.
(4) Single Arm Hydraulic Open Die Forging Hammer capacity at 1T, 2T, 3T, 4T, 5T, 6 T, 7T, 8T, 10T and 12T,
(5) Hydraulic Die Forging Hammer capacity at 1T, 2T, 3T, 5T, 6T, 8T, 10T, 16T, 18Ton and 20Ton.
(6) CNC Hydraulic Die Forging Hammer blow energy at 16KJ, 25KJ, 31.5KJ, 50KJ, 63KJ, 80KJ, 125KJ, 200KJ, 250KJ, 320KJ and 400KJ.
(7) Hydraulic Open Die Forging Press at 800T, 1250T, 1600T, 2000T, 2500T, 3150T, 4000T and 5000T.
(8) Forging Manipulator capacity at 1T, 2T, 3T, 4T, 5T, 6T, 8T 10T, 16T, 20T, 30T and 40T to cooperate with open die forging hammers and forging presses.
(9) Ring Rolling Machine / Ring Rolling Mill / Ring Forging Machine producing ring forgings OD from 100mm to 5000mm.
(10) Swarf Briquetting Press / Briquette Press / Briquette Machine / Briquetting Machine
(11) Scrap Metal Baling Press / Baling Machine / Baler
(12) Hydraulic Riveting Machine for Truck / Bus Chassis Riveting.
We are ready to send you technical details and commercial offer on receiving your enquiries!
