Product Description

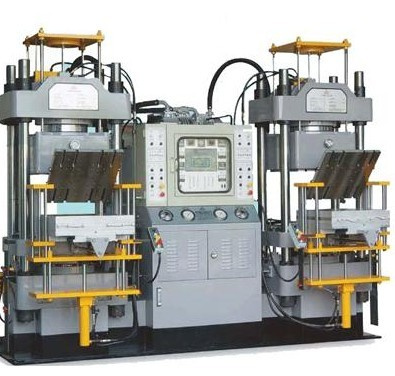

Suits produces each kind of O circle, the rubber keyboard, the medical service with the rubber components, rubber components and so on rubber components, the most economical tradition, the operation is simple, takes shape fast, may choose for three molds leaving.
Characteristics:
The machine structure after the computer pressure, the strain analysis, the service life is long-time;
The special heating platen design, the temperature distribution is even, guarantees takes shape the quality disposable;
The fluctuation track organization, guarantees the sliding panel and the heating platen does not rub; The high efficiency fast vacuum system, the end product lack materials, the gas-free does not soak.
Hydraulic system:
The hydraulic pressure unit and an organism body, the design are artistic, not oil leak, also may choose the proportion type.
Electrical system:
PLC matches touches the screen control, enhances the product.
|
Specification |
Parameters |
Specification |
Parameters |
Specification |
Parameters |
|
Mold-locking force |
200 TON |
Opens the files most greatly |
300mm |
Mold use thickness |
50~150mm |
|
Max. working pressure |
210 kg/cm 2 |
Motor power |
18.3kwx2 |
Main engine horsepower |
15HPX6P(11.2KW) |
|
Main engine piston diameter |
360mm |
Thermo plate dimension |
505× 510mm |
Vacuum horsepower |
VC-75(1.85KW/50Hz) |
|
Max. stroke |
250mm |
Mold frame plate size |
500× 500mm |
Fuel tank volume |
700L |
