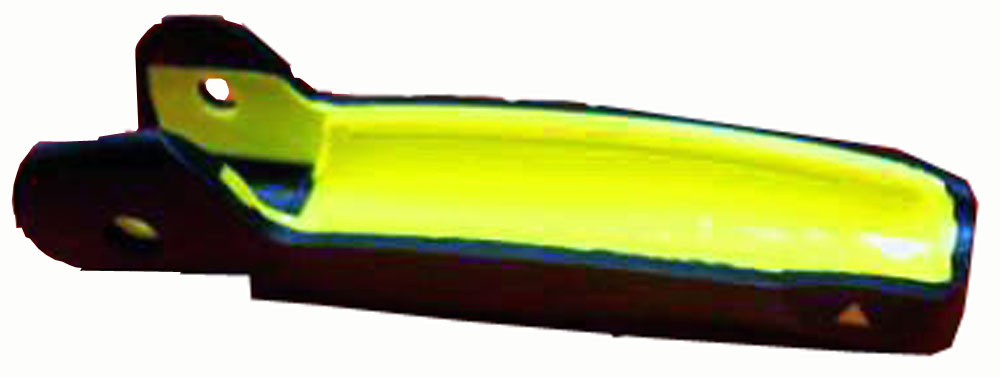

Double Color Injection Plastic Mould (GY-PTM001)

Double Color Injection Plastic Mould (GY-PTM001)
Price: Negotiable
Trade Terms: By Sea/Air
Min Order: 1set
Pay Type: T/T
Discription:
-Part Name: Two shots part
-Core&Cav Material: NAK80/NAK80
-Sample Materail: ABS&PP
-Cavity: 1*1
-Cycle Time: 40 Seconds
-Min Mold Life: 500K shots
-Leading Time: 45 days
-Our toolmakers have decades experience of two shots mold making, we focus on precision and go through scrupulous inspections before test shots are conducted.

Character:
-Customized Tool Design Drawings are Available;
-Molds are carefully machined to the closest tolerance using the latest equipment;
-The prototype should be created if the customer require;
-We offer secondary processing such as spraying and coating ect.
-Traceability is maintained from all inspection gages
-Mold repair and maintenance are also supported internally.
Prod Model: GY-PTM001
Shaping Mode: Injection Mould
Dongguan Gaoyi Plastic Mould Co., Ltd., was founded in 1997, located in Dongguan, Guangdong which is near Hong Kong.

Our company develops as an integrative and professional mould enterprise a large range of services followed below:

Mold & tooling design services;
Plastic injection mold;
Die casting mold;
Molding manufacturing;
Prototype mold;
Painting(Silk screening, powder coating etc. );
Plating(Such as electroplating, chrome plating);
Assembly.

Software:
Adopt the advanced CAD/CAM/CAE designing and software such as Master-cam, Pro-E, Solidworks, UG, Moldflow, Auto-CAD etc.

Working team:
With a high qualified and motivated crew. We are proud to show our working team as a very skilled and experienced group in mold making area. Our company divided in Sales dept., Engineer dept., Mold making dept., Injection dept., Quality Control dept. Ect.

Equipment:
1 high speeding CNC(Swiss Mikron), 5 CNC machines, 1 Charmilles EDM, 6 EDM, 5 wire cutting machines, 17 Milling machines, 5 precise grinders, 4 lathes, 5 Drill Press, 2 Coordinate measuring machines, 10 injection machines, 1 projector etc;

Our company has two other branches also locate in Dongguan, one is for die casting molds, having 16 sets of manufacturing machines varying from 200T~1000T; And the other location counts with more than 30 sets for injection molding manufacturing.

Mold material:
Core/Cavity material options: STAVAX S136H; DH31-S, DHA1, P20(PX88, PX5, LKM738, LKM738H, LKM838H); H13(LKM2316, LKM2344);
Hot runner system: Yudo, Hasco, DME;
Component: DME, LKM, HASCO standard;
The material we choose should be in occordance with the requirements specified by the customer, the material certificate is provided if required.

Our competence:
Years of OEM Experience;
Excellent products and customer-orientated service;
Wholly quality control system in every making step;
Professional technical analysis provided;
Strict control and survey on the material purchasing, specially on the part resin;
Customized designs are welcome;
Superior quality at attractive price;

Main products range:
Electrical accessory, household appliance, medical appliance, computer accessories, machine accessories, etc. The mold should be made in accordance with the sample and/or drawing provided by customer.

Highly sophisticated products:
Two shots mold(two colors injection mold);
Mold for high transparent parts;
Overmold;
Die casting mold

Main Export Markets:
France, Italy, Germany, Russia, Poland, the United States, Israel, Singapore, etc.

The word promise is not in our company's vocabulary, co-ordinated and well-orientated in co-operation with our customer is our main goal. Your sucess is our sucess, the maximum concerntration and dedication will be given to every single customer, be it a big one or a simple small one. We spare no efforts in achieving our aims snd having a good relationship with our customers.
