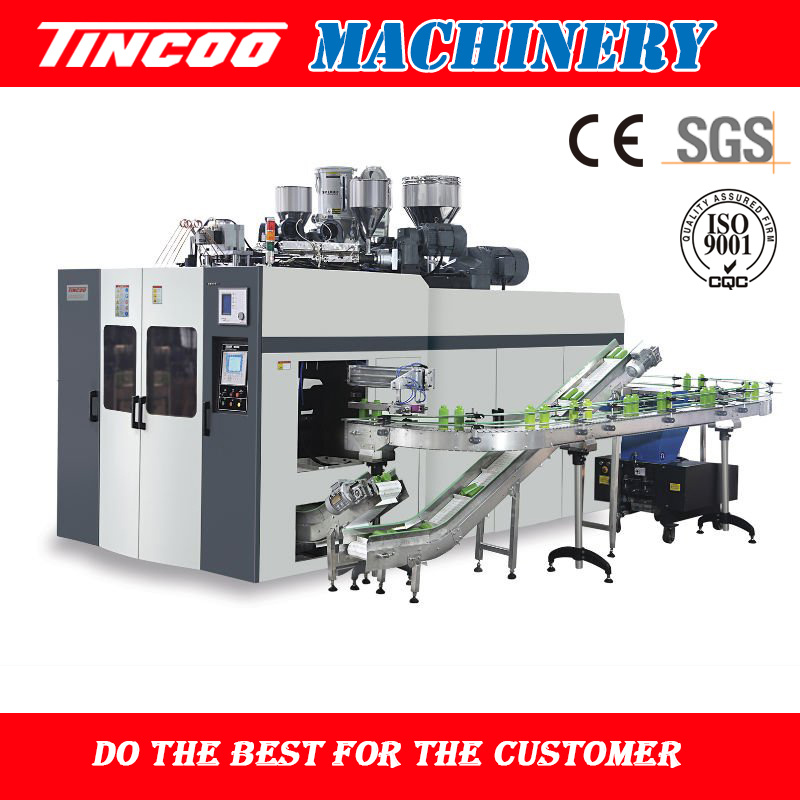

Double Station 5 Liters Automatic Blowing Machine

Double Station 5 Liters Automatic Blowing Machine
Price: Negotiable/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T

Specification:



The 5L two station blow moulding machine is different from the single station machine in that it has one additional station with high-precision linear guide. The same as the single station machines, it can be used to produce a wide variety of materials, such as PE, PP, and PA. Its production capacity is 60 to 70% more than the single station machine. In accordance with different type of products, die heads can be changed to achieve multi-type production.


Special design can be made to order to for visistipe(VS) or two colors(TC) or two layers(TL) bottles.
  • Specification

    DHD-5LII
    Material

    PE,PP
    Max.container capacity
    L
    5
    Number of die
    set
    1,2,3,4
    Machine Dimension
    m
    3.82×2.66×2.69
    Total weight
    ton
    7.8
    Accumulator head

    DHD-5LII
    Number of die heating
    zone
    3
    Power of die heating
    KW
    4.5-11
    Max die-pin diameter
    mm
    80
    Center distance of twin-die
    mm
    160
    Center distance of tri-die
    mm
    110
    Center distance of four-die
    mm
    85
    Clamping Unit

    DHD-5LII
    Clamping force
    KN
    100
    platen opening stroke
    mm
    209-510
    platen size
    mm
    350×380
    Max mould size
    mm
    400×380
    Mould thickness
    mm
    210-300
    Extruder Unit

    DHD-5LII
    Screw diameter
    mm
    70
    Screw L/D ratio
    L/D
    25:1
    Extruding Volume
    Kg/hr
    110
    Number of heating zone
    zone
    4
    Extruder heating power
    KW
    10
    Extruder driving power
    KW
    30
    Power

    DHD-5LII
    Oil pump drive power
    KW
    7.5
    Fan power for screw
    KW
    0.5
    Total power
    KW
    52.5-59
    Air pressure
    Mpa
    0.6
    Air consumption
    m³/min
    1.0-1.5
    Average energy consumption
    KW
    33
    Cooling Water Consumption
    m³/h
    1.5-2.5


Prod Model: DHD-5LII
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Extrusion Blow Molding Machine
Making Method Of Parison: Extrusion-Blow Molding
Automation: Automatic
Computerized: Computerized
Certification: ISO9001:2008
Raw Material: PP,PE...

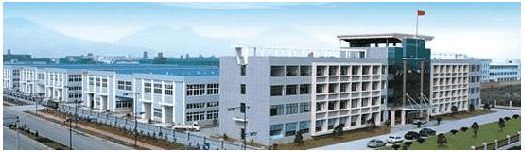

Established in 1989, Zhejiang East Zhouqiang Plastic & Mould Industry Co., Ltd. is located in Huangyan--"Blow Molding Machine Town" in China, with total investment of 11 million US dollars and covers 50 thousand square meters. It is an enterprise professionally manufactures PE Blow Molding Machines, PE Extrusion Blow Moulding Machines, PET Stretch Blowing Machine and Extrusion Blowing Moulds.

Blow moulding machinery: Adopting foreign advanced technology and management system, and taking advantage of our solid technical power, we have been developing different kinds of plastic forming process and machinery. In accordance with plastic features, we developed series of blow molding machinery to meet customers's demand, such as fully-automatic PE blow molding machines, two-stage fully-auto pet stretch blow moulding machines, PE blow moulding machines, injection and stretch blow molding machines.

Focused on customers, cored on quality, the corporation and customers are viewed as a united whole. Customers" requirements are all we should do.
