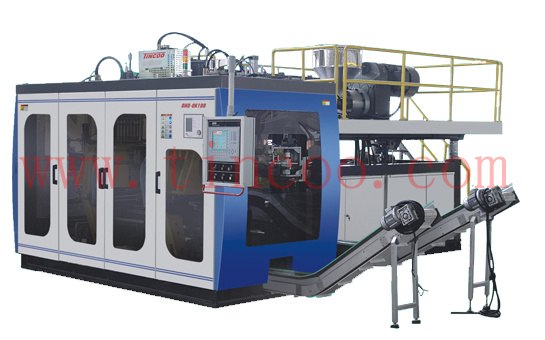

Double station with HIGH-SPEED, Advanced technology from America and European countries. Dry cycle storke is 700mm, doulbe station only takes 3.8s. 10 heads, multi-layers, Fully automatic.
For use in packaging of 200ml-5000ml washing, cosmetics, food and petroleum containers.
Specifications |
unit |
DHD-QK100 |
Material |
|
PE\PP^ |
Max container capacity |
L |
5+5 |
Number of die |
set |
1\2\3\4\6\8 |
Total weight |
Ton |
20 |
Machine dimension(L×W×H) |
m |
6.3x3.9x2.7 |
Accumulator head |
unit |
DHD-QK100 |
Number of die heating |
zone |
12 |
Power of die heating |
kw |
10-19.69 |
Max die-pin diameter |
mm |
140 |
Center distance of twin-die |
mm |
280 |
Center distance of tri-die |
mm |
190 |
Center distance of four-die |
mm |
140 |
Center distance of six-die |
mm |
95 |
Center distance of eight-die |
mm |
65 |
Clamping unit |
unit |
DHD-QK100 |
Clamping force |
Kn |
190 |
Platen opening stroke |
mm |
210-430 |
Platen size |
mm |
410X600 |
Max mould size(W×H) |
mm |
410X690 |
Mould thickness |
mm |
210-380 |
Extruder unit |
unit |
DHD-QK100 |
Screw diameter |
mm |
100 |
Screw L/D ratio |
L/D |
25:1 |
Extruding volume |
Kg/hr |
200-280 |
Number of heating zone |
Zone |
4 |
Extruder heating power |
Kw |
26.4 |
Extruder driving power |
kw |
55 |
Power |
unit |
DHD-QK100 |
Oil pump drive power |
Kw |
55 |
Fan power for screw |
Kw |
0.6 |
Total power |
Kw |
157 |
Air pressure |
Mpa |
0.8 |
Air consumption |
M³/min |
2-3 |
Average energy consumption |
Kw |
64 |
Established in 1989, Zhejiang East Zhouqiang Plastic & Mould Industry Co., Ltd. is located in Huangyan--"Blow Molding Machine Town" in China, with total investment of 11 million US dollars and covers 50 thousand square meters. It is an enterprise professionally manufactures PE Blow Molding Machines, PE Extrusion Blow Moulding Machines, PET Stretch Blowing Machine and Extrusion Blowing Moulds.
Blow moulding machinery: Adopting foreign advanced technology and management system, and taking advantage of our solid technical power, we have been developing different kinds of plastic forming process and machinery. In accordance with plastic features, we developed series of blow molding machinery to meet customers's demand, such as fully-automatic PE blow molding machines, two-stage fully-auto pet stretch blow moulding machines, PE blow moulding machines, injection and stretch blow molding machines.
Focused on customers, cored on quality, the corporation and customers are viewed as a united whole. Customers" requirements are all we should do.
