Mould Type Extrusion Speed Calibrator Length Water Tank Length
Main Profile 2.0-3.5m/min 250mm× 3; 250mm*4 2000mm× 1
Medium Profile 2.5-4.0m/min 250mm× 2 2000mm× 1
Auxiliary Profile 3.0-5.5m/min 250mm× 1 2000mm× 1

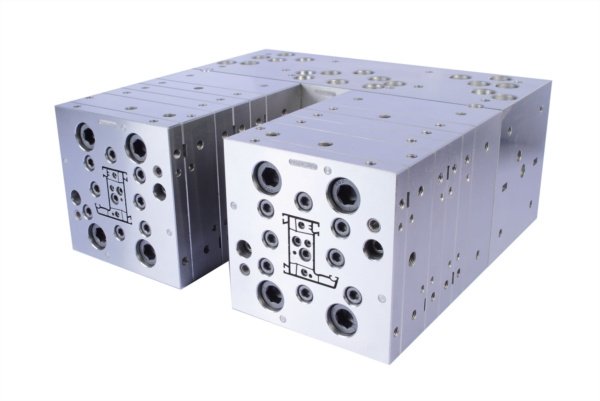

DIE
1) Die design is based on flow simulations on our computer, flow analysis and experience, that leads to excellent flow characteristics.
2) High precision positioning pin design guarantees accurate plate assembly
Calibrator
Uses high efficient vacuum device and cooling system design to guarantee great quality of finished products and smooth profile surface
Water/vacuum tank
A) Newly designed water/vacuum tanks supply vacuum and cooling water
B) High quality materials and unique design ensures high efficient cooling and proper seal to maintain constant water and vacuum supply in the tank
C) Self adjusting templates guarantee final sizing of profile
D) Tank material available: Plexiglas or fiberglass
E) High-sealing vacuum water tank of PVC window mould adopts floating setting design, able to adjust automatically
