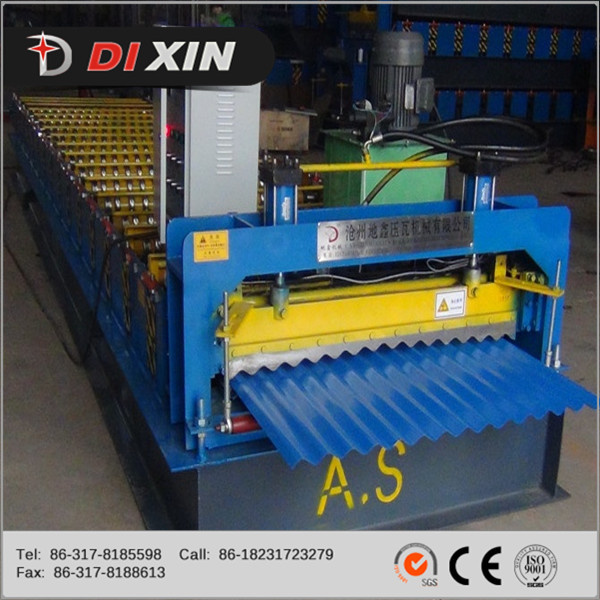

Corrugated Sheet Roll Forming Machine
825-76-18 profile
| ITEM | Delivery Time | FOB Tianjin Port/Set |
| 825 Roll Forming Machine | 30 days | * USD |
1. Panel drawing and machine picture
As picture shows.pls contact me to get.
2.Technique parameters
(1) Processing material: aluminium /aluzinc/galvanized steel/colored steel coil
(2) Material thickness: 0.3-0.85mm,( max 0.85mm)
(3) Effective width: 825mm
(4) Feeding width: 1000mm Or up to you.
(5) Main motor power: 4 kw
(6) Pump power: 4 kw
(7) Shaft diameter: 75 mm
(8) Forming steps: 13 steps
(9) Roller material: 45# forged steel, with hard chrome plating 0.05mm
(10) Main frame: 300 H steel
(11) Medium plate thickness: 16 mm
(12) Control system: PLC computer control with inverter
(13) Power supply: 380V, 3 Phase, 60Hz or as requirement
(14) 0veral size: 6450mm*1400mm*1500mm (a 20 foot container available)
3. Work flow
(1). Manual decoiler-Roll forming machine-PLC control-Hydraulic system -Post cut-Stacking
(2). Whole line:
1)One set 5 ton manual uncoiler for free
2)Three sets collection tables for free
3) And other quick wear parts for free.
4.Loading
Pls,contact me for more details.
5.Payment term
TT 30% as the deposit on the order day,70% before delivery after you inspect goods well in factory or by video
6.Warranty
12 months, and lifelong technical support service
7. Installation
If you need, we will send one technician to your factory to install & testing the machine.
You should assist the technician to get Visa and pay for flight tickets and local accommodation,
and pay 80 USD/day for salary.
8.Contact
We can supply many kinds of steel roof making machine,like trapezoidal roof forming machine,corrugated roof sheet making machine,deck sheet making machine,slit machine,bending machine,double layer roll forming machine.
Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping and sandwich panel forming machine.
We exports to most of the world. USA, UK, Africa, Russia, Indian and many other countries.
The davantage of our factoy is that
1. Many panel profile drawing machine designs available
2. Good quality machine
3. Good communication and good after sale service
In the next five years, we provide much better quality machine at reasonable price but competitive than Other supplier. So we can earn more market in the world.
Pls contact for more business.
