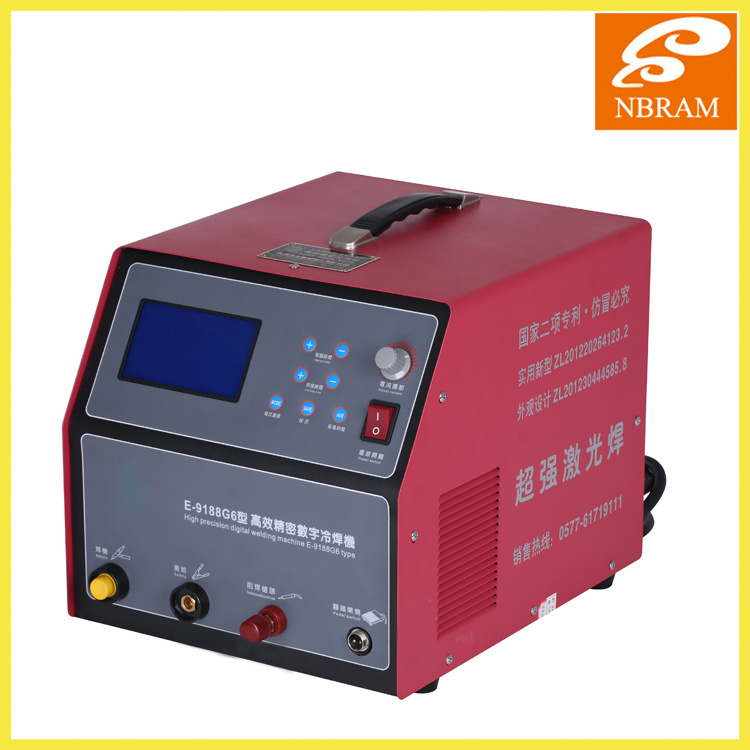

E9188G6 cold welding machine
Descriptio E9188G6 type in the original G3, G5 basis of improvement, added new features, new control interface. The main function add solder function (mold repair machine), can be fixed within 0.8mm wire, can be less than 0.2mm patch repair. An increase of 5.7-inch LCD monitor, digital micro-computer technology, you can accurately display the corresponding parameters are adjusted, more stable control. Welding time range adjustment more delicate and more precise.
E9188G6-type cold welding works:
The machine adopts high-power inverter power supply (AC-DC-AC-DC), converted into the end voltage, high current DC power mains, so we need welding power conditions in microcomputer technology, time and pulse width of the welding precision control, convert the energy released by the form of a pulse arc between the tungsten electrode and the workpiece in an instant, high-temperature arc of the metal material of the workpiece and wire quickly melted and fused together to achieve welding purposes.
This welding method is characterized by: a very short time, very little heat. This welding machine can be completed within a few tens of milliseconds wire and workpiece welding process, as opposed to ordinary welder (more than a few seconds), transmitted to the workpiece much less heat. Workpiece matrix, less heat, solder materials other than temperature rise is small, does not produce the annealing discoloration. Because the volume of each weld pulse is generated in the molten bath is less than 1 mm, the formation of the stress is also smaller. A welding requires a lot of molten pool combined, but because of the direction of the stress of the solder joints dispersed workpiece are less concentrated stress after welding deformation of the workpiece is small.
E9188G6-type metal repair welding machine developed by our company, it has the following advantages:
1 high weld strength: the full metallurgical weld repairs at the milling, filing and other post-processing.
2 Patch accuracy: round wire fill material to be repaired, do not lose the original datum, less the excess solder, easy post-surgery.
The minimum amount of repair 0.1mm (0.1mm diameter fill material).
Repair fast: the fastest repair up to 100mm6/min.
4 Substrate injury: hot spots, will not cause deformation of the substrate annealing.
Power distribution is reasonable: the use of microcomputer chip control, a variety of different diameters materials can get the best power.
6. Voltage range: switching power supply, when the voltage change to fluctuate within a range of ± 20%, the machine still guaranteed to work, and to maintain a stable output power.
Electrically connected: with quick coupling connector can be easily connected to the installation.
8 solder function: can be easily wire the fixed and sheet solder mask.
Easy to carry: the whole small size, 390 * 325 * 310, light weight 17kg.
Performance indicators:
Welding materials: In addition to the low melting point materials such as zinc, tin and carbide parts made of all kinds of metal materials can be repaired.
Welding items: 1. Equipment and tooling in the course of local wear.
2 during manufacture defects, such as trachoma stomatal size tolerance, edges and corners of damage, lack of argon welding.
Cavity rust spots and dents.
4 can be used for sheet metal welding, pipe welding and continuous operation
5 can be used for the welding of metal products processing.
Power supply: single-phase 220V ± 20% 50Hz
Power consumption :10-3500W
Instantaneous maximum power: more than 40KW
The current regulation: knob stepless adjustment 1-200A, the time interval of 1-99, welding time adjustable 1-99.
Host size: 390 * 325 * 310
Host weight: 17kg
