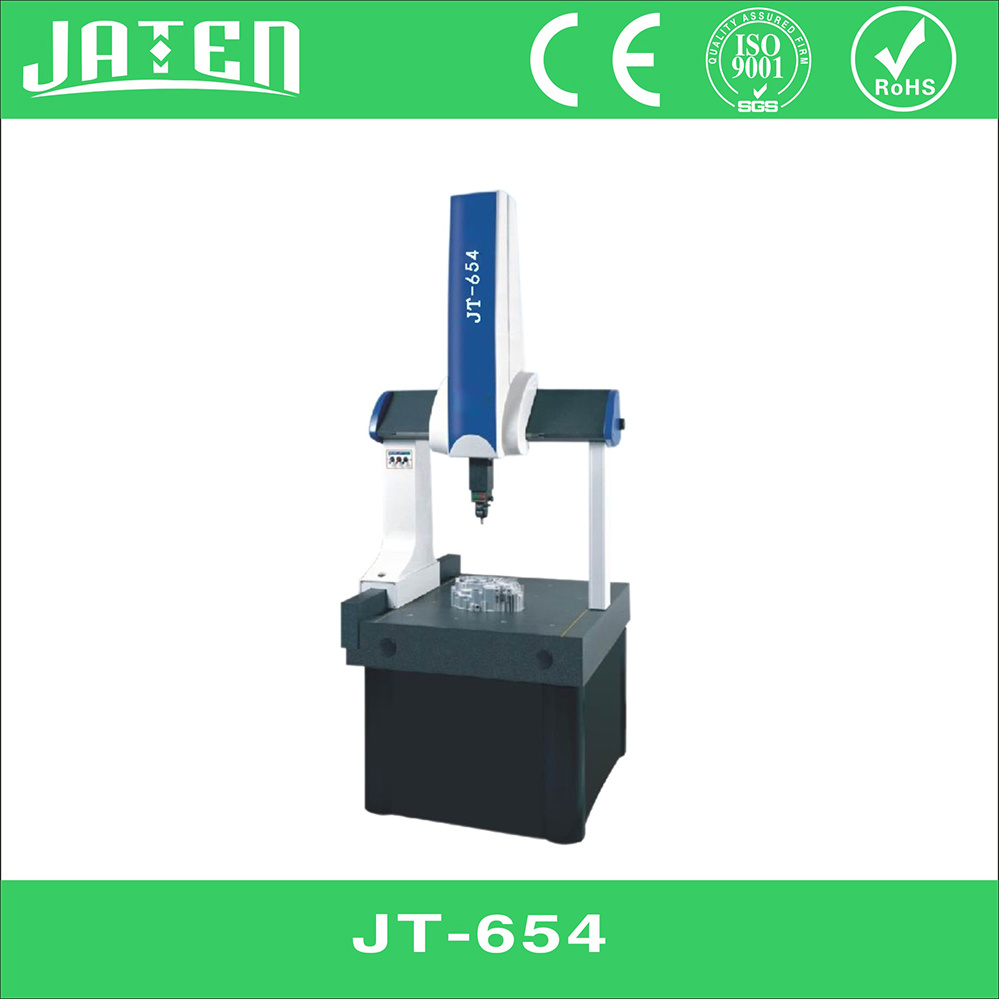

Coordinate measuring machiner
basic propertiesBrand Name: JATEN
Model Number: JT 654
Optical system: Automatic zoom lens
Power: Electronic 220V/110V 50Hz
Resolution: 0.0005
Measuring body size: 950X1050X2000mm
Measuring Range: X500*Y600*Z400mm
Operating platform max load weight: 300kg
(Xy axis AccuracyEum, L: mm): 3.5+L/250 UM ISO 10360-2 maximum permissible error
Grating ruler: America brand High precision GSI. 0.5um
CCD: Sony colorfulCCD
Features1. Double closed-loop motion control, embedded modules developed to control motor with precise positioning performance.
2. Surface light formed by 24 groups independent light source, each group are constant current source driver and 200-step continuous variable.
3. Optical measurement system can measure point, line, circle, arc and oval, rectangular with the multi-point positioning function, combination of measurements, center structure and the intersection of structure, the midpoint of construction, line structure, a round structure.
4. High Accuracy CNC optical measurement machine has various functions of data processing, display, input and output, Measurement data output Word, Excel and AutoCAD directly to conduct statistical analysis, particularly, the work piece straightening function is very useful.
5. Macros will be faster and more convenient to measure the same spare parts, for the improvement of measurement efficiency.
Product advantages1, Powerful
2, stable performance
3, high precision
4, simple operation
5, easy maintenance
6, Simple structure, strong bearing capacity, the workpiece placed open space, handling convenience.
Product ApplicationsThe perfect vision system for non-contact measurement and further inspection of Stamped and injected parts, Plastic parts, injection moulds, Electronic and other components commonly used in silk screen printing as well as the lead industry among others
Packing, transportation and after sales service,
1, One years warranty for the mother board 2, Life-long maintenance service for the product.
Packing: Wooden case. Delivery time: 2 working days after receive the payment.
Dongguan Jaten Instrument Co., Ltd. It was founded in 2005, is a specialized in dimensional measuring instrument, video measuring instrument such as precision optical testing instruments and automatic dispensing machine, electronic product dispensing machines, multi-axis dispensing machine, PCB dispensing machines and automatic dispensing equipment Jaten is certified with ISO 9001: 2008. Have granted the certification of CE. It's a research, development, manufacturing and sales in the integration of international high and new technology enterprise. R& D Headoffice is located in Dongguan city, Guangdong province, China. The total area is 8000 square meters, We have advanced R&D center and the engineers and technicians 23 people, 2 modern production workshops, more than 500 staffs.
Company products are mainly used in electronic appliances, hardware and plastic products, aerospace, military industry and so on. Many years efforts, Jaten have more than 10 brand agents over the world. Products was exported to more than 40 countries and regions.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
