Pipe fittings

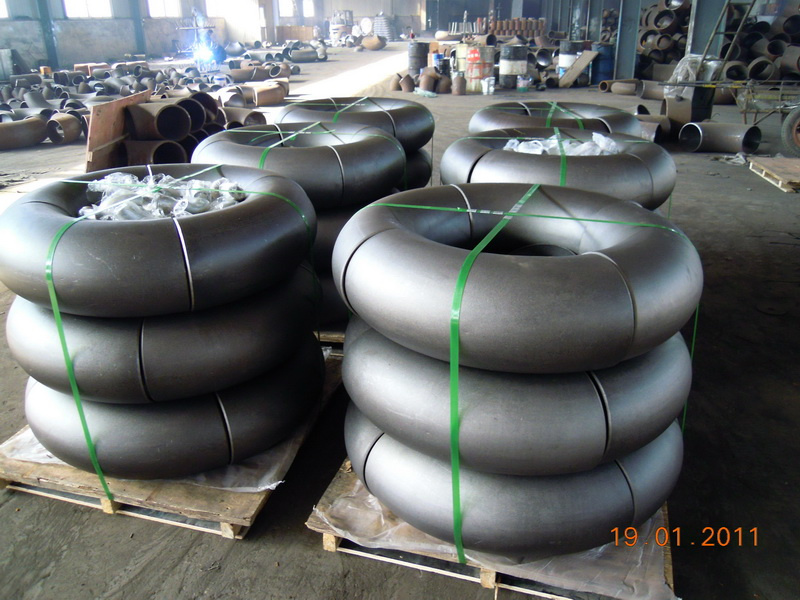

Name 90 DEGREE ELBOW LR ANSI B16.9
Size 1/2"TO 24"(seamless), 1" TO 48" (welded)
Pressure SCH 5S TO SCH 160, XXS
Connection Butt Welding
Standard ANSI, JIS, DIN
Material Carbon, Stainless and Alloy
Certificate API, ISO9001: 2000, CCS
Packing Ply-wood cases or customaried
Production Capacity 600tons per month
Product Range: 45, 90, 180 degree elbow, Tee, Reducer, Crosses, End cap,
Usage Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc
MATERIAL AVAILABLE:
Carbon Steel Butt Welding Pipe fitting:
ASTM A234 WPB, WPC; A420 WPL6, WPL9, WPL3, WPL8; WPHY42, 46, 52, 56, 60, 65, 70
Alloy Steel Butt Welding Pipe fitting:
ASTM A234 WP1, WP12, WP11, WP22, WP5, WP9, WP911, and WP91
Stainless Steel Butt Welding Pipe fitting:
ASME A403 WP304, 304L, 316, 316L
Stainless Steel Pipe Fitting |
Stainless Steel Elbow |
Standard | ASME SA403,BS16.9,GB12459,EN,DIN,JIS |
Material | 304,304L,310S,309S,316,316L,317,317L,321,201, 202, etc. |
Sizes | (DN10--DN1200) |
Wall Thickness | Sch5X~SchXXS |
Bend Degree | 45°,90°,180° |
Type | Elbow, reducer, cross, pipe holder, manhole cover, ,clamp,union ,valve etc |
Steel Flange |
Standards | ASTMA182,ANSI B16.9, ANSI B16.28, EN10253-2, EN1092-1,JIS B2313,DIN2605, |
Stainless Steel | SUS310S,SUS316,316L,304,304L,321,303,303CU,301,202,201 etc. |
Carton Steel | ST35, RST37, S235JR, Q235, SS400 |
Sizes | (DN8--DN1500) |
Pressure Class | 150LB, 300LB, 400LB, 600LB, 900LB,1500LB, etc. |
Type | Plate type Flat Welding Flange,Welding Neck Flange, Blind Flange,Socket Welding Flange,Thread Flange,Screwed Flange,Lap Joint |
Stainless Steel Reducer |
Standard | DIN 2527,2573,2576,2642,2633,JIS B2311,ASME 16.9 |
Material | 304, 304L, 310S, 309S, 316, 316L, 317, 317L, 321,201, 202, etc. |
Technique | Forged |
Size | DN15--DN1200 |
Thickness | SCH5~XXS |
note | |
MOQ | 3 TONS |
Productivity | 1015 tons/month |
Tianjin Te Feng Steel Tube Co., Ltd. is A Integrated Steel Products Provider. Upholding The Quality First, Reputation First Business Philosophy, Loyal Service To Customers.
Our Company Located In Tianjin Beichen District. We Are One Of The Biggest Steel Products Manufacturer By The Coast Of Bohai Sea. Tianjin Has Already Formed A Three-dimensional Comprehensive Transportation network. Our Geographical Position Is Superior And Transportation Is Very Convenient.
We Are One Of The Biggest Manufacturer For Steel Product With A 90000 M2 Workshop, covers An Area More Than 150, 000 M2, And We Own Over 60 Million USD In Assets. Ou Main Products Including Stainless Steel Pipe, stainless Steel Plate, stainless Steel Bar, seamless Steel Pipe, low Temperature Stee Pipe, alloy Steel Pipe, boiler Pipe, steel Plate, Pipe Fitting, copper Products, titanium Products And Nickel Products. Our Company Has The Most Advanced Production Equipment Which Guarantee The Most Advantageous Product Quality. Based On Highly Quality Products and Best Service, we Have Develop Clients All Round The World, Our Products Are Widely Used In Industry In USA, Germany, Korea, Iran, Dubai, Ukraine, Thailand, Bulgaria, and So On.
Our Goal Is Offer The Bes Quality Products With The Lowest Price And Best Service. We Believe That Our Company Will Have A Speed Develop With The Support From Both At Home And At Abroad.
How Can We Find The Most Benefit For You, Please Contact Us. And You Are Welcome To Visit Our Factory.
