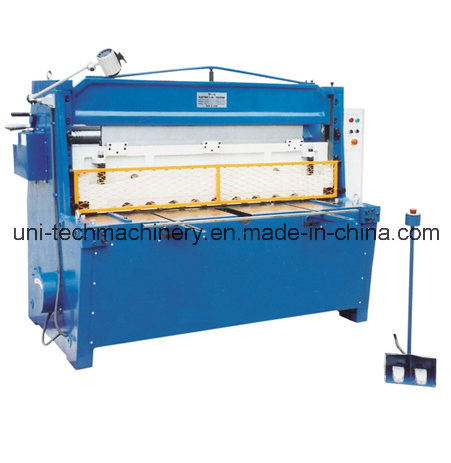

Electric Shear Brake Roll Machine E3-IN-1/1320.
Features:
1. Combination of shear, brake&roll with high strong structure.
2. For shearing, lt can achieve single stroke and continuous stroke processing function.
3. For bending, there are three funtion: Jogging single stroke and continuous stroke.
4. For rolling there are two function; Jogging and continuous stroke.
5. This machine is the ideal equipment for sheett-metal working.
6.For rolling, the processing for the taper rolling is very easy.
7.For shearing & bending, both can achieve single stroke and continuous stroke.
8.The back gauge adopt data control system,the adjustment is quickly and exactly.
Specification:
| CODE NO. |
|
|
| Model | E3-IN-1/1320 | E3-IN-1/2040 |
| Max Shearing thickness(mm) | 3 | 3 |
| Max shearing width(mm) | 1320 | 2040 |
| Shearing angle | 2° | 2.5° |
| Number of stroke(per min) | 30 | 30 |
| Back-gauge range(mm) | 450 | 450 |
| Height of worktable(mm) | 760 | 760 |
| Max bending thickness(mm) | 2 | 2 |
| Max bending width(mm) | 1320 | 2040 |
| Max rolling thickness(mm) | 3 | 3 |
| Max rolling width(mm) | 1500 | 2100 |
| Min rolling dia(mm) | 90 | 120 |
| Motor power(kw) | 3 | 4 |
| N. W. /G. W. (kg) | 2300/2800 | 3500/3800 |
| Packing size(cm) | 254X145X197 | 326X145X197 |
Tengzhou Uni-tech machinery Co. Ltd, specially in the range of supplying different machines, machine tools, machinery accessories. With long time exporting machines experience, we can not only supplying our customers stable quality products, but also more excellent service.
Supplying source:
1. As an machinery supplier for many years, we are aware whose quality is acceptable, whose quality is poor, we always can meet our customers requests, precisely. With the long time and deep relationship with the factory, as exporter, we can get better prices, which play a key role in the market competition...Ours development coming from customers growing.
2. We also follow the products developing, always can recommend the newly developed products to our customer to meet the changing market.
3. With the experience, we also can meet customers products improvements, for
some place modifying, in order to meet exactly customer requests.
Quality Control
We have our own engineer who has more than years of working experience and is professionally trained. Our trained engineers can help customers on behalf of company not only inspect goods before shipping but also track all links of production process.
After-sales service
We guarantee that all products could be used with free of defect in one year from the date of purchase. During our guarantee period, all customers enjoy free service of repairing of changing any defective parts. This guarantee does not apply to those defects directly or indirectly due to improperly use and repairs or maintenance.
Customer-service
We can provide customers the fast after-sale service warranty. In order to meet this point,
What your requests, including the spare parts posting requests, quality modifying, price inquiry, delivery time checking, we will try our best to feed back within 24 hours.
CUSTOMER PROFITS IS ALWAYS THE FIRST, AS OWING TO CUSTOMER NEEDING, EXPECTING, INFLUENCE, UNIQUE, WE MUST BE CONSIDERATE, FASTER, FLEXIBLE, THEN WE CAN HAVE BRIGHT FUTURE.
We are engaged in manufacturing and supplying all kinds of metal workings machines, machine tools and accessories, measuring tools… … . With rich experience in exporting and manufacturing, we are always pay more attention to the Fast inquiry replying, Strict quality control, On time delivery time, Quick after-sales-service, also for the best price for our customers, we also have more certificate such as ISO, CE. Hope to take this chance to enter into direct business with you.
*manufacturing and supplying all kinds drlling and milling machine, turret
milling machine,
*manufacturing all kinds of gap bed lathes and supplying different accessories.
*** manufacturing all kinds of manual metal sheet products
