Home Mould Products Electro-Hydraulic Synchronous Bending Machine (TB-S)

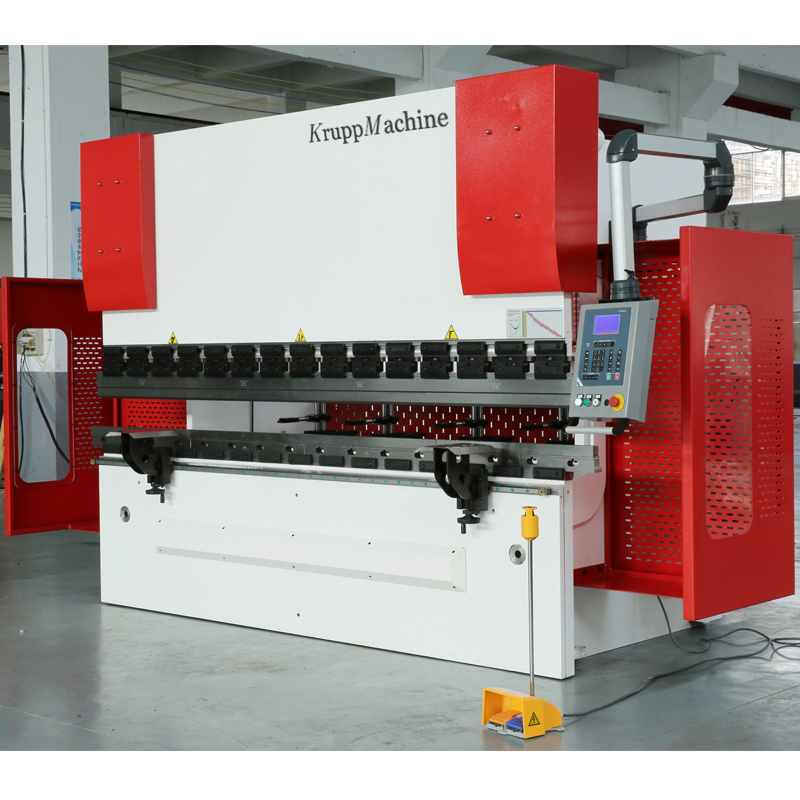

Electro-Hydraulic Synchronous Bending Machine (TB-S)

Electro-Hydraulic Synchronous Bending Machine (TB-S)
Price: US $ 15000-100000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union
1.The heavy duty rack which is novel and attractive with the largest structure rigidity and accuracy
2.Large size of safety barrier around the machine,they provide adequate work space and are equipped with transparent organic glass.
3.The large size throat can process larger work pieces.
4.The various forms of tool clamping mechanism can be configured according to different requirements.
5.High quality bending mold adopts the overall heat treatment,high precision processing standards make the mold using comfortable.
6.All kinds of front support are applicable to all production needs.
Model

Nominal Pressure (kn)Length of table (mm)Distance Between Housing (mm)Throat Depth (mm)Stroke (mm)Open High (mm)Dimensions
(L x W x H) (mm)
50/1600500160012002501604402100x1250x2200
70/2500700250020003201604603000x1350x2250
100/25001000250020004002005003000x1450x2400
100/31001000310026004002005003600x1450x2450
100/40001000400032004002005004500x1500x2550
160/31001600310026004002005003600x1650x2700
160/40001600400032004002005004500x1700x2850
200/31002000310026004002505503600x1750x2800
200/40002000400032004002505504500x1750x3050
250/31002500310026004002505503600x1750x2850
250/40002500400032004002505504500x1750x3150
320/31003200310026004003006003700x1850x3000
320/40003200400032004003006004500x1850x3350
400/40004000400032005003006004500x2100x3200
400/60004000600048005003006006500x2250x4200

You can select what you want according to your needs
Machine: Chinese standard
        European standard

Oil cylinder: Imported
           Domestic

Group valve(import from German): HOERBIGER
                               AGRO
                               BOSCH REXROTH

Mould fast clamp:Compressive bar type fast clip
                Manual middle plate

Back gauge:GE type(380mm/s)
                    GS type(600mm/s)

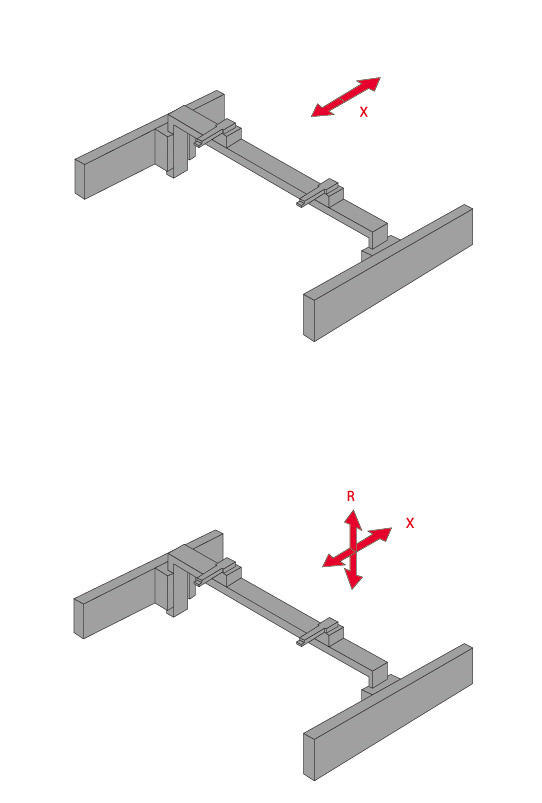

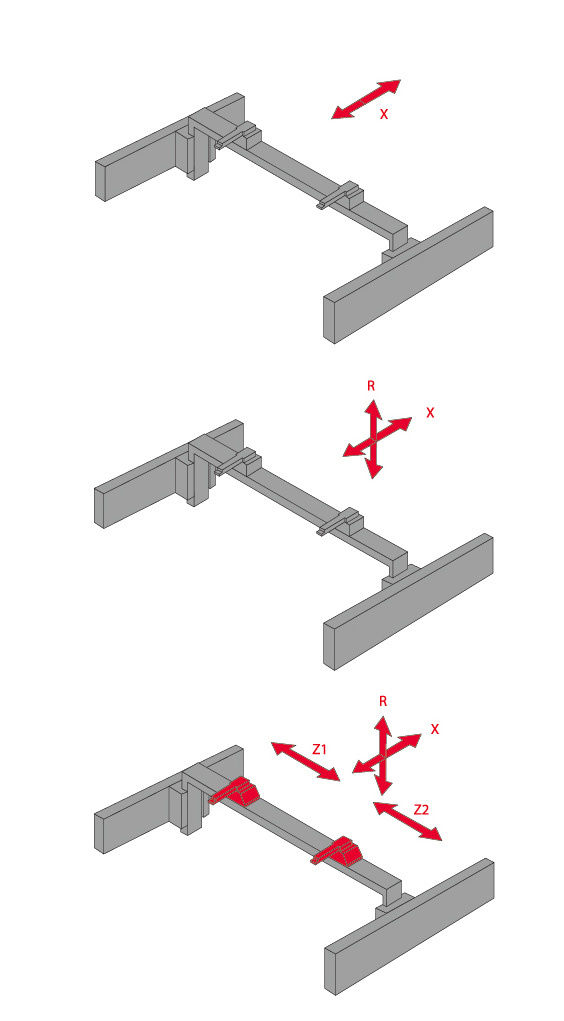

Axis(option):Y1,Y2,X,V,W,R,Z1,Z2,X1,R1

Control system:CYBELEC(CT8/CT12/880S)
              ESA(530/540/550)
              DELEM(52S/58T/66T)

Grating ruler:ATEK(Turkey)
           RSF(Austria)

Oil pump:Imported
         Domestic

Bracket:Manual adjustment
        Move by linear guide

GE type backgauge



GS type backgauge


Prod Model: TB-S
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ma'anshan Krupp Machinery Trade Co., Ltd is located in Ma'anshan Bowang

Industrial park. We are near to Nanjing South station and Nanjing Lukou airport, which is convenient to be visited.

Our company adopts international advanced management mode and imports Japanese and German technology. We are the enterprises with collection brand, research and development, design and manufacture.

We passed ISO9001: 2008 international quality system certification and has obtained many patent. All machines are with CE certification.

Our company are professional in producing metal forming machine, including CNC press brake, shearing machine, rolling machine, combined punching shearing machine, hydraulic notching machine, punching machine and all kinds ofmechanical tools, die.

We have rich clients in many countries and regions. Beside offer the machines with good quality, we also have experienced after sales service team. If thereis need, our engineers can go to the buyer's side to offer training and installation at the earliest time.

"Quality Create Future" is our concept. We'll try our best to achieve every product.
