Home Mould Products Electronic Plastic Part (HR--0041256)

Electronic Plastic Part (HR--0041256)

Electronic Plastic Part (HR--0041256)
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union

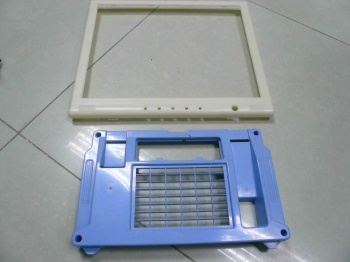

Electrical frame

PRODUCTION PROCESS

Mold Design
According to customer request to design mold drawing
Design Approved
When the mold design finished, send the drawing to customer for confirm, then According to customer request to modify, and make the best project
Mold Making
Prepare the mold material, mold base, CNC machine, wire cut machine, EDM Machine, grinder machine, assember, fit mold
First Sample
Test the sample by ourself and assembly with our customer, analysis it and Make a Summary
First Modifying mold
According to customer request to make a modify
Second Sample
According to update mold, to make the second test, to check the assembly, Size
Whether or not fit customer request
Last Finish
According to customer request to solve the mold surface, or print label and Logo
Finally Confirm
To confirm the appearance, assembly, structure
Use and Manufacture
According to product precision to choice the different model
80T, 120T, 250T, 450T, 800T injection machine

Notes:
We are ISO9001: 2000 certified manufacturer and with 14 years exporting experience and RoHS Compliant. At the present, owning lectric spark machining, Wire Cut Machine, WEDM-LS, WEDM-HS, Plastic Injection Machine, HAAS CNC Machine, MITSUBISHI EDM, American Moore Jig Grinders and so on imported from German, Japan and USA
If you have any request related to plastic mould/product manufacturing, please do not hesitate to contact us. We will provide a reasonable quotation with high quality manufacturing/service. Your prompt attention to us will be highly appreciated!
Thank you for your attention.

Details Description
Place of Origin GuangDong Dongguan  China (Mainland)
Core Business Plastic mold making and moulding
Design software UG, ProE, CAD
Maximum mould size 2, 000*1, 500*1, 000mm
Mold build capability Upto to 20Ton
Clamp forces 30Ton~1, 800Ton
Cavity Single-cavity, Multi-cavity
Certificate ISO9001: 2000 ISO14001 TS16949
Mould material P20, H13, 420SS
Raw Material PP, PA, PA66, POM, PA6+30GF, PC, PC/ABS, ABS, PMMA, PE etc.
Mould base LKM standard, HASCO (equivalent), DME (equivalent)
Gate type Cold runner/YUDO, Moldmaster, Synventive, INCOE, Husky hot runner
Appearance finished EDM, High polish; Mirror polishing, Texture/Graining
Mould Life 300, 000 shots, 1, 000, 000 shots, etc.
Hardness of steel 18~56 HRC
Delivery time 4 to 8 weeks (4 weeks for prototype mold)
Package Wooden Box, Carton
Delivery term FOB HK, FOB SHEN ZHEN, FOB GUANGZHOU







R& D

Technical analysis. Make the files or improve the design if necessary.


Negotiation

Price, material, quality, payment, delivery time etc.

    ↓

Order

The customer places order.

    ↓

Mould making

    ↓

Submit mould drawing → customer approval on drawing → mould making → T1 sample submission → (Modification on mould if any → T2 sample submission … ) → customer confirmation on mould

    ↓

Packing




Shipment

Inform the customer of the shipment

Prod Model: HR--0041256
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Mold Base: Lkm
Size: Customizeed
Life Span: 100000-1000000shots
Mold Lead Time: 25-30days
3D Drawing: 5-7days
Design Software: Ug, PRO-E, Solidworks
Surface Treatment: Glossy/Mat/Half Mat Half Glossy
Printing&Painting: Screen Pringting, Tampo Printing/Spray Painting
Thickness: 0.5- 5mm
Cavity: Single
Shaping Mode: Injection Mould
Application: Electronic
Installation: Mobile
Process Combination Type: Single-Process Mode
Founded in 1993, DongGuan HaiRui Plastic Precision Mould Co., Ltd is located in HuMen, DongGuan City, GuangDong Province. After year's accumulation and development, HaiRui has become one of leading companies in mould industry and related plastic products such as FILTER MACHINE, FILTER CUP, PLASTIC INJECTION parts, assembling, painting, ultrasonic techinic, heat seal techinic in China. To provide our customers with best price and quality with immediate service is our target and to meet the present market requirements. Our facrory cover about 15000 square meters and more than 420 employees working hard in us, and 80% among which are engineers and technicians. We use the highest standards of quality control systems in our factory. Besides we use the best raw material to produce the best quality in China.

In 2001, we passed ISO 9001: 2000 qualification inspects successfully, and in the year 2006, our company has completely introduced European RoHS environment material management system and has won the recognition from customers. We have the latest advanced machines imported from Japan, Germany and the United States, like WEDM-LS, WEDM-HS, three-D inspects equipment and a total mature techinic process. our products precise tolerance can reach 0.001mm. For years, we constantly meet the demands of customers and market development and help customers to finish difficult tasks. To provide our customers with best price and quality with immediate service is always our target and to meet the present market requirements. All of our customers are taking a great appreciation of quality and dependability built over 10 years.
