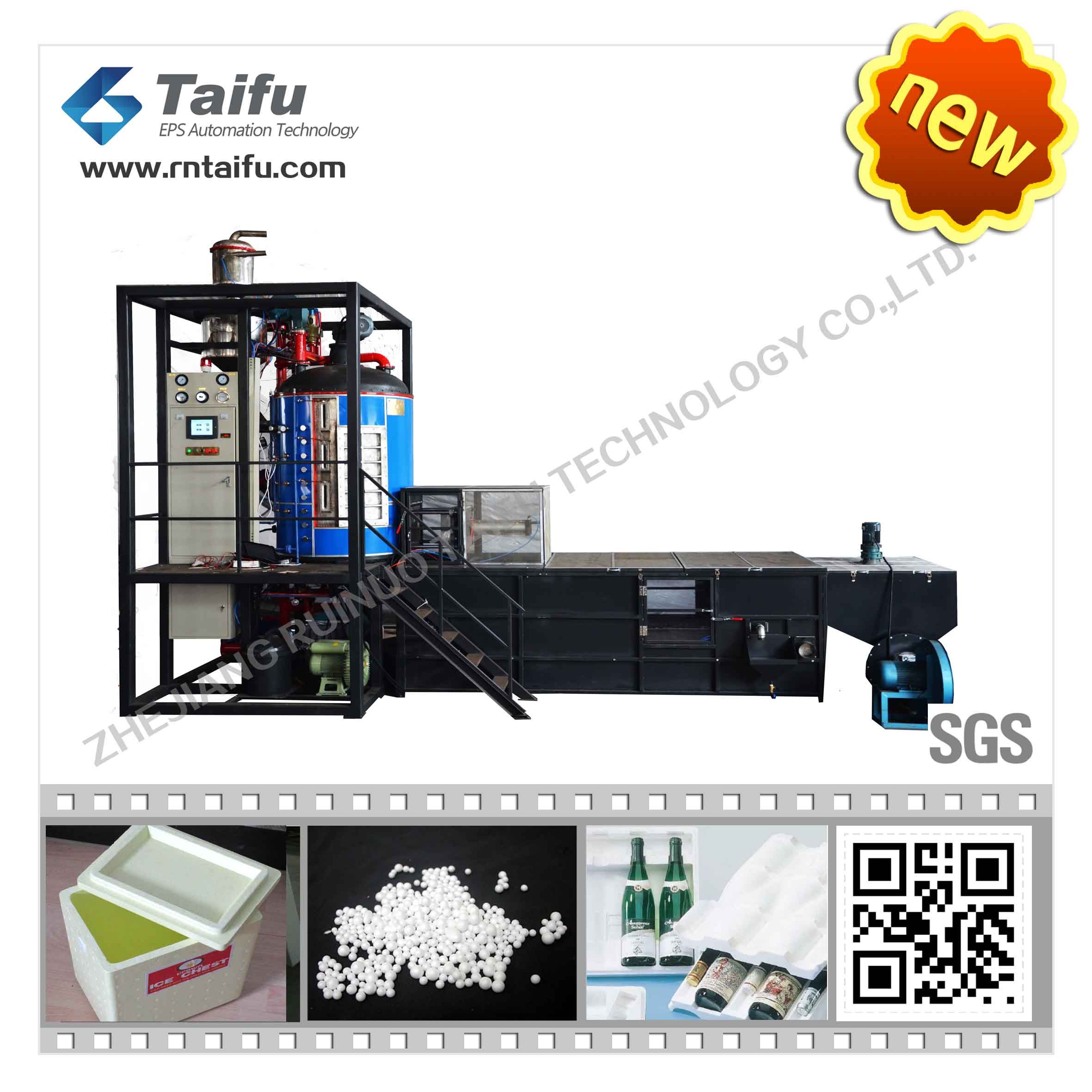

Advantages:
1. The machine applies PLC and touch screen, automatic feeding, electronic weighting, temperature
Control, material level control to realize automatic production,
2, Electronic weighing system and material level control system assure the density of the foamed material, which make the granules uniformity and keep the density tolerance within ± 3%);
3, High precise guiding pressure reducing valve controls the temperature and steam pressure of the closed barrel to ensure the outcome pressure of the valve constant and the inner temperature controlled within ± 1%C, which keeps the foamed material equal and prevents the granule agglomerate because of the unstable temperature;
4, Automatic material controlling system, improving efficiency and reducing labor intensity;
5, The closed type constant pressure foaming barrel has high heating efficiency, It can save more than 50% energy compared to the continuous pre-expander;
6. The machine is equipped with fluidized drying bed, it can dry, crush and filter the foamed materials automatically;
7. Most components used in the machine are world famous brand with its reliable performance, Stable quality, long service life and low maintenance cost advantages;
|
Item |
Unit |
TFJ-110 |
TFJ-130 |
TFJ-140 |
TFJ-160 |
|
Expansion Chamber |
mm |
φ 1100 |
φ 1300 |
φ 1400 |
φ 1600 |
|
Useable Volume |
m 3 |
1.4 |
1.6 |
1.8 |
3.2 |
|
Steam |
Entry |
mm |
DN50 |
DN60 |
DN65 |
DN65 |
|
Pressure |
MPa |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
|
Compressed Air |
Entry |
mm |
DN40 |
DN40 |
DN40 |
DN40 |
|
Pressure |
MPa |
0.5-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
|
Drainage |
Uppor Drain Port |
mm |
DN100 |
DN100 |
DN125 |
DN125 |
|
Down Vent |
mm |
DN100 |
DN100 |
DN100 |
DN100 |
|
Connected Load |
Kw |
19.5kw |
20.1kw |
22Kw |
22Kw |
|
First Expansion Efficiency |
12g/h |
380Kg/h |
530Kg/h |
12g/L |
12g/L |
|
15g/h |
550Kg/h |
670Kg/h |
15g/L |
15g/L |
|
20g/h |
750Kg/h |
920Kg/h |
20g/L |
18g/L |
|
30g/h |
850Kg/h |
1220Kg/h |
30g/L |
25g/L |
|
Weight Error Lower Than |
|
≤ 3% |
≤ 3% |
≤ ± 3% |
≤ ± 3% |
|
Overall Dimension L× W× H |
mm |
9000× 3500× 5500 |
7380× 3000× 4500 |
9000× 3500× 5500 |
9000× 3500× 5500 |
|
Machine Weight |
Kg |
3200 |
4200 |
4500 |
4800 |
Zhejiang Ruinuo Taifu Technology Co., Ltd. is a professional EPS machinery manufacturer. Our company has two manufacturing bases with modern plants covering a total area morethan20, 000 square meters. The newly-built factory in Tonglu is equipped with a series of processing equipment such as gantry milling machines, and CNC, achining center, an electrical testing workshop, and assemblytesting lines, and a test plant for EPS production lines will also be established gradually, so asto ensure advanced production technology with high professional service standard, and we still consistently to improve products' quality and produce innovative products. Taking into account the characteristics of foam machinery industry and the specific operating environment, company's moulding machines, pre-expander, block moulding machine and other products have prominent advantages of reasonable design, simply operation, high automation, low power consumption and high efficiency.
Company is committed to producing high--quality EPS foam plastic machinery, importing international advanced technology and accessories, to further improve products' stability and precision. We have exported products to Southeast Asia, Middle East and other European countries. Meanwhile, to further expand the domestic market and enhance the company's high level service, company has set up offices at home and abroad. With company's core norm of "customer first, quality winning", all Taifu staff is working hard to improve our products and service. We sincerely welcome domestic and overseas customers to visit us.
