Home Mould Products Experienced High Precision Plastic Injection Mould for Interface (WBM-2013061)

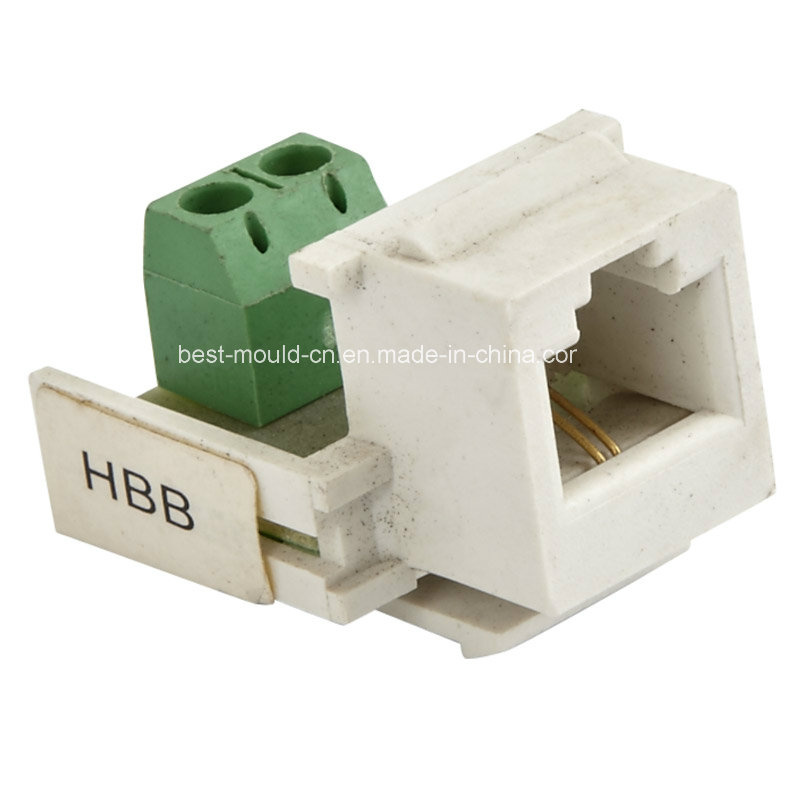

Experienced High Precision Plastic Injection Mould for Interface (WBM-2013061)

Experienced High Precision Plastic Injection Mould for Interface (WBM-2013061)
Price: US $ 5000-7000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: T/T,Western Union
We are professional mould manufacturer and as well as produce product for more than 10 years.

Company brief introduction:

1. Over 10 years experience
2. Highly qualified engineering team
3. Competitive price
4. High-tech development direction
5. SGS certification
6.Service Items
    a.We will send you process pictures of mould druring mould process each 10 days.
    b.We will send you samples and video for you check every time of testing mould.
    c.We will send you testing report of mould each time.
7.After service:We ensure that we will do our best service , cooperation and satisfy you well as sure.

Key Specifications of Mould:
1. Steel of Cavity and core: 2738
2. Mold base: LKM
3. Cavity: 1*4 Cavity
4. Mold gate way: Yudo Hot runner
5. Cooling system: Enough cooling
6. Surface: Mirror polishing
7. Tolerance: 0.01mm, 2D/3D control
8. Mould life: 1, 000, 000 shots
9. Finishe time for first sample: 30 days.


Key Specifications/Special Features:

In order to make sure doff automatic and without any eject mark, must be arrange high Polish for this mold injection. This rack choose ABS material, then advice choose hard enough steel

1. Customized designs, sizes and frames are accepted
2. Mould steel: 2738 forging for cor and cav, LKM for mould base (customized)
3. Mould treatment: Final treatment for cor and cav plates by vacuum queching to 38 to 42deg; (whole plates 0.3mm hardness)
4. Mould cavity: 1*4
5. Mould software: Choose UG for 3D design, AutoCAD for 2D drawing, mould flow for runner analyze

6. Mould size: 280 x 280mm (depends on client's machine upon changing mold size)
7. Mould fix machine: 250T on injection molding machine
8. Plastic material: ABS (on normal choose ABS)
9. Mould cycle time: 28 seconds/shot (without cool water when test this mold)
10. Mould doff way: Automatic by ejectors and air spring (Hasco standard)

11. Mould lifespan (minimum): 1, 000, 000 shots
12. Mould base: Copy standard mold base
13. Mould gate way: Hot runner (customized)
14. Mould packing: Standard wooden case
15. Minimum mould order should be one set
16. Mould shipment will be arranged within seven days after confirm amples and received balance
17. After product, if needs long time stay, should put oil (butter mix benzene) on the cor and cav, slider's surface prevents rust, with free spare parts during mould minimum life and technical Aegis.

Features:
1) We can provide plastic mould for various parts according to your requirements
2) We own CNC processing centers, CNC spark working machinery and various advanced mould tooling equipment. We also have established a CAD / CAM / CAE mould design and development center.
3) Our quality, price, after sale services are really competitive
4) Our range covers from eletrical accessory, auto parts, household appliance, computer accessory, medical appliance, car accessory, digital&security parts ect.
Mold Details:
Material of Core & CavityCav.Mold BaseMold life(shots)Surface/Texture
P20                                                                                718H                                                                        NAK80                                                                23161*1LKM                                                                              LKM (HASCO 50#)                                                                            DME300000                              500.000                                    1000, 1000EDM                                    MOLDTECH                                            High Polish
MachineLead TimeSpecialAdvantage
Advance CNC, EDM, W-cut  45DaysGlossy SurfaceHigh Polish
Products Details:
Dimension (mm)MaterialDimension ControlTolerance


ABS Korea2D/3D Device  0.02mm
Prod Model: WBM-2013061
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Mould: Plastic Injection Mould
Cavity: 1*4
Steel Of Cavity And Core: 2738
Mould Base: Lkm
Mold Gate Way: Yudo Hot Runner
Cooling System: Enough Cooling
Mould Life: 500k-1000k Shots
Tolerance: 0.02mm, 2D/3D Control
Finish Time For First Sample: 30 Days
Material Of Product: ABS
Shaping Mode: Injection Mould
Process Combination Type: Single-Process Mode
Application: Hardware
Installation: Semi Fixed
Mould Cavity: 1+1 Cavity
Standard: International Standard
Wenzhou Best Mould & Plastic Products Manufacturing Co., Ltd. is lies in "base of Chinese precision mould, Yueqing, Zhejiang, specialized in plastic mould, automatic stamping, die and Zinc, Aluminum casting die, at the sametime, supplying all kinds of machined and assembly for products, Due to requirements from Marketing. Our products are exported to European and American, South Asia and Middle East etc countries and area.

Wenzhou Best Mold Manufacturing Co., Ltd. is founded in 2003, we can supply from design for product appearance and Construsture, mould to mould made completed service, adopting ISO9001: 2000 quality management model, with CAD/CAM/CAE system and advanced working station, creating network system, successful in enjoying source, forming high express of information data. The mould design and machined are made together to assure powerful manufacturing high and precision mould, good communication with our pressure customer, let customers know progress in mould product.

We have CNC machining center, wire erose, EDM machine etc machined equipment, to assure of our customer high effiency in mould production, Best-Mould is equipped with advanced equipment and techical, strict quality management, reasonable price, supplying with satisfied service to our customer.
