Experienced High-Quality Precision Plastic Injection Mould (WBM-201004)

Experienced High-Quality Precision Plastic Injection Mould (WBM-201004)
Price: US $ 10000.00-13000.00/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: T/T,Western Union
We are professional mould manufacturer and as well as produce product for more than 10 years.
Company brief introduction:
1. Over 10 years experience
2. Highly qualified engineering team
3. Competitive price
4. High-tech development direction
5. SGS certification
6.Service Items
    a.We will send you process pictures of mould druring mould process each 10 days.
    b.We will send you samples and video for you check every time of testing mould.
    c.We will send you testing report of mould each time.
7.After service:We ensure that we will do our best service , cooperation and satisfy you well as sure.

Photoes show of company

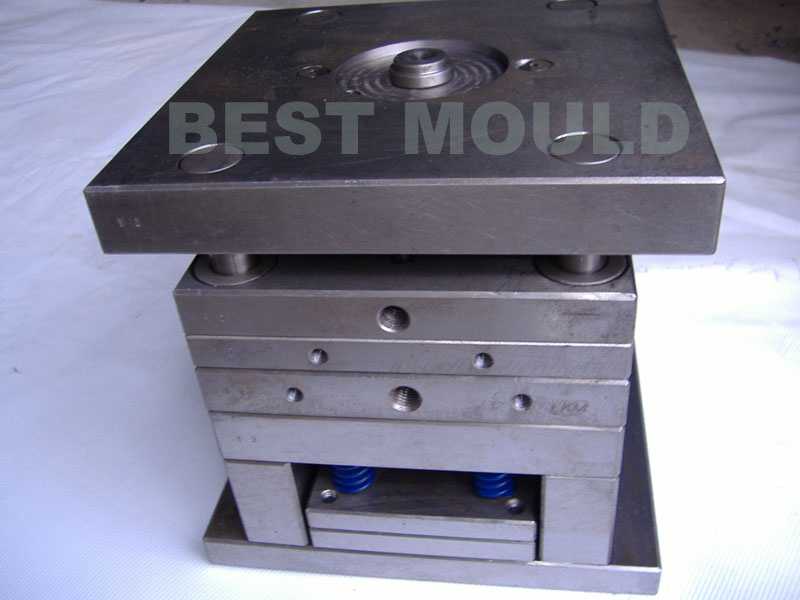

Plastic Injection Mould:

1. Steel of core & cavity: NAK80
2. Mold base: LKM
3. Cavity of mould: 1x1
4. Mold gate way: Hot ruuner
5. Cooling system: Enough cooling system
6. Surface: High polishing
7. Tolerance: 0.02mm, 2D/3D control
8. Mold life: 500k-1000k shots
9. Finishe time for first sample: 40 days

Key Specifications/Special Features:
In order to make sure doff automatic and without any eject mark, must be arrange high Polish for this injection mold. This rack choose PS material, then advice choose hard enough steel

1. Customized designs, sizes and frames are accepted
2. Injection Mold steel: NAK80 forging for cor and cav, LKM for mould base.
3. Mold treatment: Final treatment for cor and cav plates by vacuum queching to 35 to 45 deg; (whole plates 0.3mm hardness)
4. Mold cavity: 1*1
5. Mold software: Choose UG for 3D design, AutoCAD for 2D drawing, mold flow for runner analyze

6. Mold size: 600x 700mm (depends on client's machine upon changing mould size)
7. Mold fix machine: 650T on injection molding machine
8. Plastic material: PS (on normal choose PS)
9. Mold cycle time: 38 seconds/shot (without cool water when test this mold)
10. Mold doff way: Automatic by ejectors and air spring (Hasco standard)

11. Mold lifespan (minimum): 1, 000, 000 shots
12. Injection Mold base: Copy standard mould base
13. Plastic Mold gate way: Hot runner (customized)
14. Mold packing: Standard wooden case
15. Minimum mould order should be one set
16. Mold shipment will be arranged within seven days after confirm samples and received balance
17. After product, if needs long time stay, should put oil (butter mix benzene) on the cor and cav, slider's surface prevents rust, with free spare parts during mold minimum life and technical Aegis.

Features:
1) We can provide injection molds for various parts according to your requirements
2) We own CNC processing centers, CNC spark working machinery and various advanced plastic mold tooling equipment. We also have established a CAD / CAM / CAE mold design and development center.
3) Our quality, price, after sale services are really competitive
4) Our range covers from eletrical accessory, auto parts, household appliance, computer accessory, medical appliance, car accessory, digital&security parts ect.
Mould Details:
Material of Core & CavityCav.       Mould BaseMould life(shots)Surface/Texture
P20                                         718H                                     NAK80                                 23161*1LKM                                        LKM (HASCO 50#)                                       DME300000                500,000                   1000,1000 EDM                   MOLDTECH                       High Polish
MachineLead TimeSpecialAdvantage

Advance CNC,EDM,W-cut 45DaysGlossy SurfaceHigh Polish

Products Details:







Dimension (mm)MaterialDimension ControlTolerance





2D/3D Device 0.02mm

Prod Model: WBM-201004
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Mould: Plastic Inejction Mould
Cavity: 1*1
Steel Of Cavity And Core: Nak80, 2738, 2316
Mould Base: Lkm, Dme
Surface: High Polishing
Cooling System: Enough Cooling Systme by Water
Mould Runner Way: Yudo Hot Runner
Mould Life: 500k-1000k Shots
Finish Time For First Sample: 40 Days
Tolerance: 0.02mm, 2D/3D Control
Shaping Mode: Injection Mould
Process Combination Type: Single-Process Mode
Application: Electronic
Installation: Semi Fixed
Plastic Material: PS
Standard: International Standard
Wenzhou Best Mould & Plastic Products Manufacturing Co., Ltd. is lies in "base of Chinese precision mould, Yueqing, Zhejiang, specialized in plastic mould, automatic stamping, die and Zinc, Aluminum casting die, at the sametime, supplying all kinds of machined and assembly for products, Due to requirements from Marketing. Our products are exported to European and American, South Asia and Middle East etc countries and area.

Wenzhou Best Mold Manufacturing Co., Ltd. is founded in 2003, we can supply from design for product appearance and Construsture, mould to mould made completed service, adopting ISO9001: 2000 quality management model, with CAD/CAM/CAE system and advanced working station, creating network system, successful in enjoying source, forming high express of information data. The mould design and machined are made together to assure powerful manufacturing high and precision mould, good communication with our pressure customer, let customers know progress in mould product.

We have CNC machining center, wire erose, EDM machine etc machined equipment, to assure of our customer high effiency in mould production, Best-Mould is equipped with advanced equipment and techical, strict quality management, reasonable price, supplying with satisfied service to our customer.
