Feature and Structure
1)Material: Nylon Resin + strength alloy stee, JIS standard.
2)Using method: . Use sloping screw to adjust mold plate and parting locks, turn 1/4 Parting locks can be open-close to 50, 000 times.
3) Easy to assemble and disassemble.
4). Can also be installed into small, medium size, and 2-sectional injecting metal pipes, or can be installed on sliding bases.
5). Mold weight <100kg using 4 pieces of 12Ø , Mold weight < 500kg, using 4 piece of 16Ø , Mold weight <1, 000kg using 4 piece of 20Ø , Mold weight >1, 000kg, using at least 6 piece.
6). Insert parting Locks into die mold about 3cm, then using H 7 reamer 10 process mold hole within +0.1mm.
7). Process female mold surface to the shape R. If chamfering C, life cycle will shorten.
8). Do not add oil and grease on parting locks, Or else the friction will reduce.
9). Colour: White, Yellow, Orange, Blue for choice

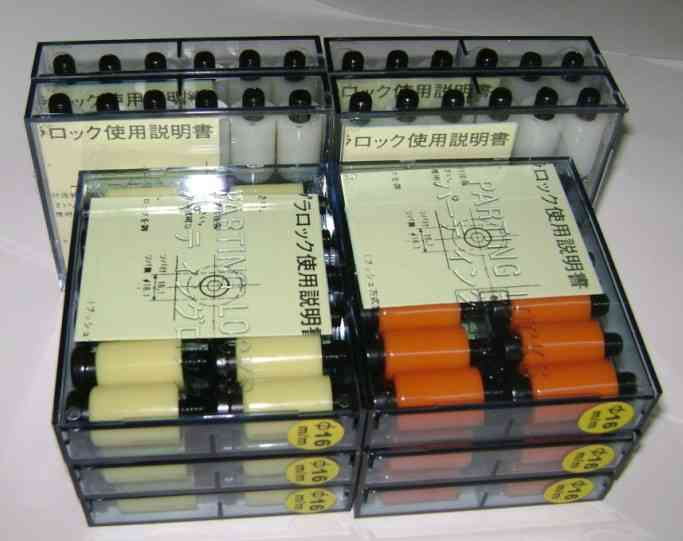

10). Package: Small packed in box 12 pieces each with installation instruction
|
D |
d1 |
H |
L |
M |
B |
|
10 |
8.5 |
3 |
18 |
M5 |
4 |
|
12 |
11 |
3.5 |
20 |
M6 |
5 |
|
13 |
11 |
3.5 |
20 |
M6 |
5 |
|
16 |
14 |
4 |
25 |
M8 |
6 |
|
20 |
16 |
5 |
30 |
M10 |
8 |
Spring Die Mould Part Industry Company Limited., found in 1997.It located in the downtown of Ningbo.It is about 3 kms to Beilun port.It takes just 3 hours drive to Shanghai through Hangzhou Bay crossing Bridge.
Spring Die Mould Part Company is the membership of Zhejiang Machinery association.That specialized in producing and selling mould accessories and various hardwares.There are 105 workers in our place, include 8 technicians.Our products such as fastener, springs ISO10243&JIS standard, HSS punch, guide post, some stamping parts, hand tools and CNC machines parts.
We have full set of testing equipments and heat-treatment furnace, that can control the quality meet or over customers' requirement.Moreover, we have our close cooperating material suppliers, own factories and logistics team.Majority have more than 10 years' experience in this field.So price and delivery are our strong points always.Our company passed certificate ISO9001-2000 in 2003.For high-precision parts, we can control the tolerance within 0.0015mm.After over 10 years work, Our products are best selling to America, Italy, Spain, India, Turkey and Egypt markets.
In the future, we will get everyone's effort to work with customers continuously, develop with customers together base on the principle of equality and mutual benefit.Pls don't hesitate to contact us for further information.
