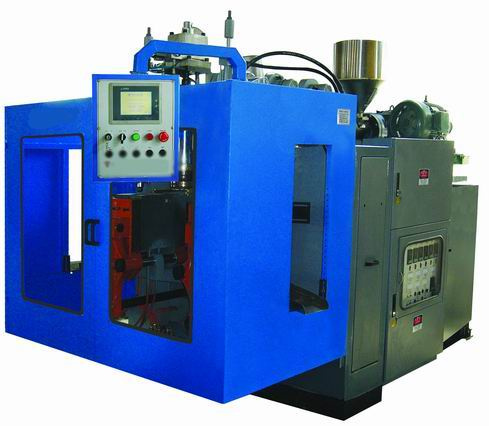

Extrusion Blow Molding Machine (AM-601)

Extrusion Blow Molding Machine (AM-601)
Price: Negotiable
Min Order: 1
Product Description
Molding SystemA. Use plastic molding analysis system from Euro-America, worked in the State-of-the-art design and accurate analog-analyzing, adopt Germany advanced technology, to use center material-feeding method, double circle design, so that internal stress is dealt in a better state. Never accumulate material and able to adjust the thickness and weight of the products. B. The mould device is made of specially-treated steel from Japan; It is processed by Japan-made CNC machine before surface-polishing and hardening process. High-precision assembly can greatly extend the moulds service life.
2. Extrusion SystemUse a set of system of injection design and analog data analysis, which carries out real-time supervision and monitoring in accordance with plastic material type at different process sections (Feeding, Plasticization and Blending), it adjusts the screw parameter design, temperature and speed. Use Japan special steel and advanced CNC equipments.
3. Hydraulic systemAdopted VICKERS or YUKEN oil pump and valves, it is quite steady when it working, special in the high speed movement, because we use twin proportion values, the whole machine move smooth and swift, no strike, low noise, key motive force is steady. Life-span is several times than traditional extension, and it is simple, easy to safeguard.
4. Circuit Control systemUse Japan 6" FUJI sensitive screen, America AB or SIEMNS temperature panel and PLC, Emerson parts
5. Pneumatic systemUse German FESTO or Japan-made SMC products
6. VALIDITY: The offer is valid for any order placed within a period of 30 days. Unless otherwise stated all conditions and terms are based on this list. The offer is offered buyer for selecting, but not act as the enclosure of contract. The contract is the only standard.

Material   PE /PP /PVC/PA….
Max container capacity  L  1----6
Number of die  set  1 / 2 /3 /4
Output(dry Cycle)  pc/hr  300
Machine Dimension (L×W×H )  M  3.2x2.0x2.6
Total weigh ton

5.5

Clamping Unit
Clamping force  KN  65
Platen opening stroke  mm  188-538
 Platen size

mm

338x430

Max mould size(W×H)  mm

360x450

Mould thickness mm 190-320
Power
Max drive  KW  24.95
Total power  KW  47.5
Fan power for screw  KW  0.48
Air pressure Mpa  0.7
Air consumption  m³/min  0.9
Average energy consumption KW 16.5
Extruder unit
Screw diameter mm 60
Screw L/D ratio L/D  24
Plasticising capacity  Kg/hr  60
Number of  heating zone zone 3
Extruder  heating  power  KW  12
Extruder driving power  KW  15
Die
Number of  heating zone  zone  3..5
Power of die heating  KW  5.7
Max die-pin diameter  mm  150
Center distance of double die mm  150

Center distance of tetra-die  mm  85
Waterishline  Extruder unit
Screw diameter  mm  25
Extruder driving power kw0.75
Extruder  heating  power  kw2.2
Double layers  Extruder unit
Screw diameter  mm30
Extruder driving power   kw3.7
Extruder  heating  power   kw3.2
Prod Model: AM-601
Markets: North America,South America,Eastern Europe,Oceania,Mid East,Eastern Asia,Western Europe
Making Method Of Parison: Extrusion-Blow Molding
Aman Machinery Co., Ltd., was reformed from the former Wuxi Machine Tools Group Machinery Factory. It was established in 1954, and started the development of bag making machine &injection molding machine&injection blow molding machine in 1991.

Along with the development of the enterprise in the past 16years, Aman Machinery has become one of the backbones in packing machinery industry in China. China Packing Association has conferred us titles of "China Packing Products Appointed Producer"; And "Excellent Quality Product in China Packing Industry". Aman Machinery is standing of the leading position for bag making machinery &injection molding machine &injection blow molding machine in China. For many years hard work, we have successfully exploited many special bag making machines, slitting equipment and complete set of PVC Sleeve Labeling Equipment.

AMAN Machinery persists in faithful and honest as her root, persists in strict management and technology innovation, and careful manufacture and continuous improvement. Make sure to produce products welcomed by the market and to provide the wholehearted and confidence service to all customers.

Aman Machinery sticks on one field of work to practice the specialization production with multi-channel investment, gradually tends herself towards Group. All these factories provide services in postal service at home and abroad (Air cushion film and air bags), in automobile industry and machinery industry.
