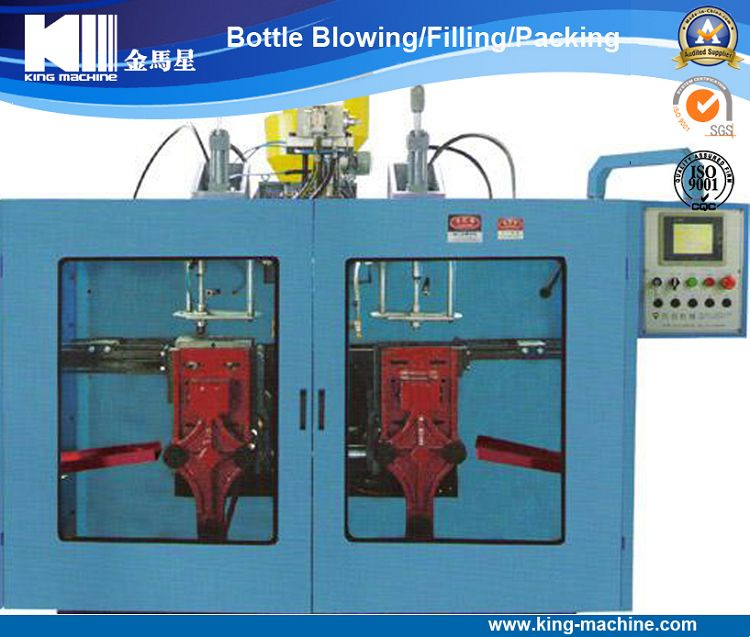

Extrusion blowing moulding machine/molding machine
Main technical data
Applied material: HDPE, PETG, PP, PE, PVC, etc.
Production capacity: 1.5l(max)
Output: 1200PCS/hour
Extruding system
Screw type: Same distance, different depth, gradual change
Screw diameter: 45mm
Screw l/d: 24/1
Extruding volume: 30-50kg/hour
Material: 38crmoala treated with n
Screw rigidity: Hv700-840.
Screw brittleness: <=2 degree.
Barrel material: 38crmoala treated with n.
Barrel rigidity: Hv>=940.
Barrel brittleness: <=2 degree.
Driving way: Invert motor and hard-teeth face gear box.
|
Name |
Trader |
|
Micro computer control system |
Japanese MITSUBISHI PLC+inductive screen |
|
|
Inductive screen: HITECH Electronics |
|
Tem’ control part |
TAIWAN YANHUA PID |
|
Replay |
OMRON company |
|
contacting |
South Korean LG |
|
Air switch |
South Korean LG |
|
Electric motor |
Three and asynchronism motor |
|
Power |
TAIWAN MEANWELL |
|
Transducer |
South Korean LG |
Zhangjiagang King Machine Co., Ltd. is a group company located in Zhangjiagang city Nanfeng industrial town, we have more than 15years experiences on beverage machinery and plastic machines.
We devote ourselves to the development, research and production of plastic machine and liquid food and beverage packing and filling industry and automatic blow molding machine in China.
Our Main products including: Mineral water and purified water producing line. Carbonated beverage producing line. 3 gallons& 5gallons producing line. Flat and tube UHT device, and CIP system. All the products are sold well in every province and city of the whole country and also exported to about thirty countries and areas with strong technical force, advanced equipment, scientific management system and perfect after-sales service.
