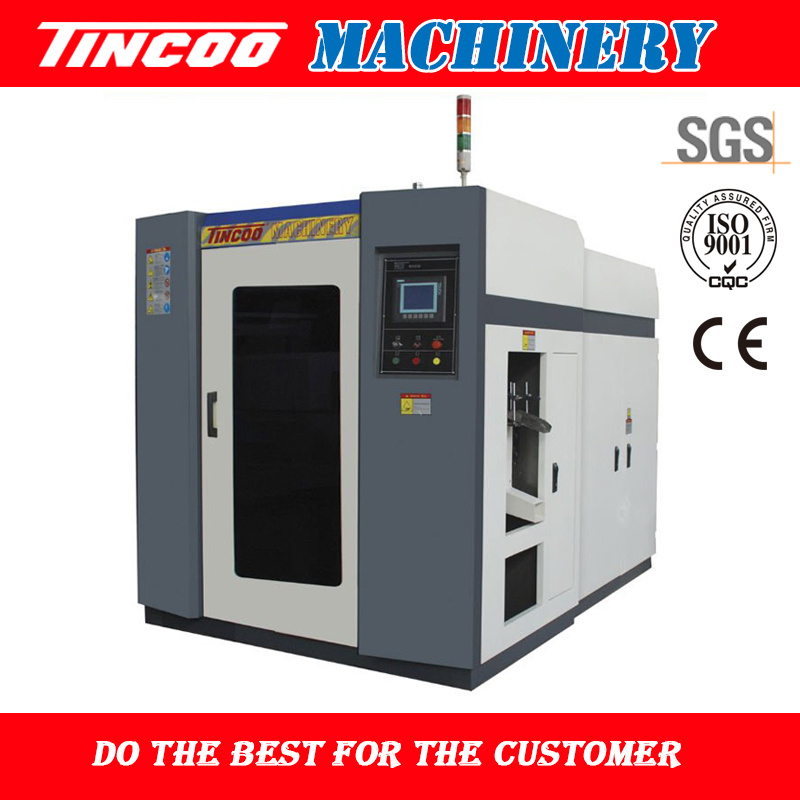

Single-Station-5L Extrusion blow moulding machinery
The 2L-16L single-station automatic extrusion blow moulding machinery include four series of DHS-2L, DHS-5L, DHS-10L and DHS-16L. The Machine is a single station machine, and suitable for producing high quality container with medium output. It specializes in the manufacture of PE\PP\PVC\TPU\PETA containers of up to 16L, with from one to six fold diehead, for use in the packaging of petroleum, cosmetics, chemicals, pharmaceuticals, food, toys and auto-parts.
The clamping system is a high-precision single-station linear guide, extrusion system using a hard gear reducer and inverter imported from Japan.
The die head system adopts central-incoming extrusion die made of special steel, imported hydraulic valve and seal parts with proportional control valve.
The control system consists of PLC and Human-machine interface imported from Japan, an automatic temperature control module and imported electrical parts.
Single-Station-5L Extrusion blow moulding machinery,equipment information.
Specification | | DHS-2L | DHS-5L | DHS-12L | DHS-16L |
Material | | PE,PP | PE,PP | PE,PP | PE,PP |
Max.container capacity | L | 2 | 5 | 12 | 16 |
Number of die | set | 1,2,3,4 | 1,2,3,4 | 1,2,3,4 | 1,2,3,4 |
Machine Dimension | m | 2.5×1.6×2.4 | 2.9×1.85×2.65 | 4.2×2.95×3 | 4.8×3.2×3.1 |
Total weight | ton | 4 | 5 | 7 | 8 |
Accumulator head | | DHS-2L | DHS-5L | DHS-12L | DHS-16L |
Number of die heating | zone | 3 | 3 | 3 | 4 |
Power of die heating | KW | 4.2 | 5.8 | 6-7 | 6-7 |
Max die-pin diameter | mm | 60 | 80 | 140 | 140 |
Center distance of twin-die | mm | 130 | 160 | 240 | 260 |
Center distance of tri-die | mm | 85 | 110 | 160 | 180 |
Center distance of four-die | mm | 65 | 85 | 120 | 130 |
Clamping Unit | | DHS-2L | DHS-5L | DHS-12L | DHS-16L |
Clamping force | KN | 38 | 70 | 110 | 155 |
platen opening stroke | mm | 158-410 | 209-510 | 209-620 | 219-600 |
platen size | mm | 290×320 | 350×380 | 460×500 | 500×490 |
Max mould size | mm | 320×320 | 400×380 | 560×500 | 600×500 |
Mould thickness | mm | 160-240 | 210-300 | 220-380 | 210-380 |
Extruder Unit | | DHS-2L | DHS-5L | DHS-12L | DHS-16L |
Screw diameter | mm | 50 | 60 | 70 | 75 |
Screw L/D ratio | L/D | 24:1 | 24:1 | 24:1 | 25:1 |
Extruding Volume | Kg/hr | 30-50 | 60-80 | 100-120 | 100-130 |
Number of heating zone | zone | 3 | 3 | 3 | 4 |
Extruder heating power | KW | 3-4.4 | 5-6.6 | 6-8.2 | 7.3-8.6 |
Extruder driving power | KW | 11-15 | 15-18.5 | 22-30 | 22-30 |
Power | | DHS-2L | DHS-5L | DHS-12L | DHS-16L |
Oil pump drive power | KW | 5.5 | 7.5 | 11 | 11 |
Fan power for screw | KW | 0.25 | 0.25 | 0.25 | 0.6 |
Total power | KW | 22 | 32 | 41 | 52 |
Air pressure | Mpa | 0.6 | 0.6 | 0.6 | 0.6 |
Air consumption | m³/min | 0.4 | 0.6 | 0.8 | 0.8 |
Average energy consumption | KW | 12 | 18 | 22 | 24 |
