Extrusion Blow Moulding Machinery

Extrusion Blow Moulding Machinery
Price: US $ 20000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union

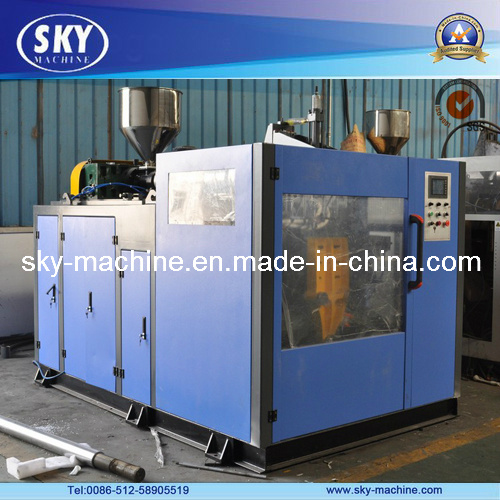

Extrusion Blow Moulding Machinery
1. Model: SKY50-2L
2, Maximum product volume: 2L

SKY50-2L extrusion blow moulding machinery, This single station machine can be equipped with 1 to 4 die head, Compatible for the production of bottles from 5ml up to 2liters made out of PE, PP, PETG and PVC, Suiting for the packaging of cosmetics, petroleum, chemicals, pharmaceuticals, food products and toys. This machine is designed for producing high quality articles with small size.

For bottles from 5ml up to 2L
With 1 to 4 fold die head
Center input die head
Multi-layer and visual stripe head
Max clamping force 40KN
Linear rolling motion guider equipped
Easily operation by PLC+touch screen
Imported hydraulic component
Parison programmer can be adopt

Dry cycle 1500 PCS/H
Screw diameter 50mm
Screw L/D ratio 22
Screr drive power 11KW
HDPE output 35KG/H
Oil Pump Power 5.5KW
Clamping force 40KN
Mold stroke 128-368mm
Template size 300*320mm
Max Die diameter 100mm
Machine size 2.5*1.7*2.3m
Machine weight 3.2T
Prod Model: SKY-50
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Maximum Product Volume: 2L
Capacity: 180PCS/Hr
Automation: Automatic
Making Method Of Parison: Extrusion-Blow Molding
Raw Material: HDPE
Computerized: Computerized
Certification: CE
Type: Extrusion Blow Molding Machine
Zhangjiagang Sky Machine Co., Ltd is one of the world's leading beverage machinery manufacturers. With over ten years of manufacturing experience, we can offer the following production lines and equipment: Bottled Water Production line, Juice production line, Barreled Water Production, Beverage Filling Machines, Water Treatment Equipment, Fruit Juice Beverage Auxiliary Equipment, Carbonated Beverage Auxiliary Equipment, Latter Packaging Equipment, and Bottle Blowing Machines. Our vast line of beverage machinery is available for countless users to meet all your customers' needs.

With our self-sufficient import and export qualifications, we can satisfy all global customers with our high-quality beverage machinery and perfect performances in both our financial standings and practical services. Throughout our years in the industry, our company has earned an admirable reputation across the globe for our advanced technology, superior quality products, and efficient after-sale service. Our beverage machinery, including Beverage Filling Machines and Soft Drink Filling Machines, has been exported to many countries, such as Japan, Russia, Indonesia, and Malaysia etc.

Quality of our beverage machinery is our primary focus. Working by the principle of "Quality First, Customer First", we take the utmost care at every stage of the manufacturing process, thereby assuring our customers a totally hassle-free performance for years of operation. We have gained vast recognition and acclaim from all our valued customers for the beverage machinery and services that clearly exceed the expectations of our clients'.

Excellent materials are very essential to our high quality beverage machinery. Our Beverage Filling Machines, Soft Drink Filling Machine, etc. Are made from top grade SUS304 and SUS316, all electric elements adopted by world-known and trusted brands such as Omron, Siemens, Mitsubishi, and Schneider. All parts are processed by CNC lathe and milling machines, guaranteeing the precision of every product.

We sincerely invite businesses around the world to establish a professional relationship with us based on trust, benefits and the promising possibility for future development. Providing high quality Beverage Filling Machines, Soft Drink Filling Machine, etc. For our customers is our endless pursuit.
