Extrusion Blowing Moulding Machine

Extrusion Blowing Moulding Machine
Price: Negotiable
Trade Terms: FOB
Min Order: 1/Set
Pay Type: L/C,T/T

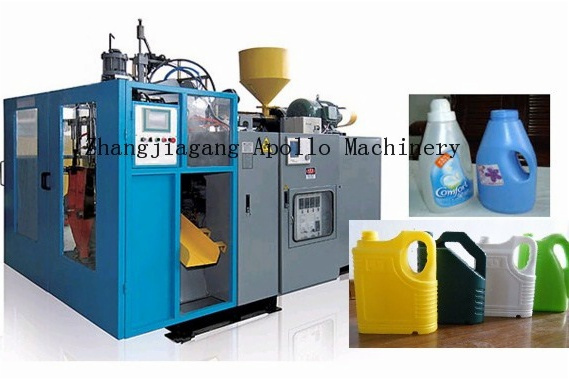

5L PE blow moulding machine
Model No.: Ablb7(double station single die head)
Ablb75 5L PE blow moulding machine was specially designed for making plastic water bottles, lubricant oil bottles, detergent bottles, cosmetic bottles, and other plastic containers not over 7.5L
electronic parts


Name

Trader

Micro computer control system

Japanese MITSUBISHI

Temperature Controller

TAIWAN YANHUA  PID

Auxiliary Relay

OMRON

contactor

Schneider from France

Electric motor

Three phase 220V or 380V

Power Source

TAIWAN MEANWELL

Transducer

TAIDA FROM CHINA
hydraulic parts


Name

Trader

Oil pump

TAIWAN HIGH-TECH

Valve

JAPAN YUKEN

Oil pump and connection

JAPAN YUKEN

Sealed part

HALLITE
air control system


Name

Trader

Cylinder

AIRTAC

Air Valve

FESTO



Technical Parameters: ( ABLB75
Max. Product volume 7.5 liters
Output capacity 150~180pc/h
Screw diameter 75mm
Screw L/D ratio 24 L/D
Screw drive power 22 KW
Screw heating capacity 7 KW
No.of heating zone 4 zones
Output of HDPE 100KG/H
Oil pump drive power 11 KW
Clamping force 78KN
Max.size of mold 148-568mm
Mold stroke 400 X 450mm
Max.die diameter 160mm
Blowing pressure 0.6 mpa
Air Volume 0.8 M³/MIN
Cooling water pressure 0.3mpa
Water consumption 80 L/MIN
Size of Machine 3.8x2.2x2.8m
Weight of machine 8 ton
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Making Method Of Parison: Extrusion-Blow Molding
We Apollo Machinery, located in the high-speed developing port city-Zhangjiagang, which is nearby to the international big city-Shanghai, specializes in making various kinds of blowing molding machine for the solution for plastic industry. We have specialized in this field for over 10 years. Our company with over 100 staff was established in 1997, occupy 8000 square meters.

Through over 10 years of hard struggle, our company has developed from a small company to Medium and Large size company. We always place our customer's profit on the first place through high quality, responsible price and considerate after-sale sevices.

We can provide blow molding machines for various kinds of plastic products, including cosmetic packaging, medical packing, washing packing, foodstuff packing, lubricate packing, plastic toys, hollow tube, tool boxes, chemical barrel and more. Our machinery are suitable for plastic containers from 5ML to 200L. Our machinery are also suitable for various kinds of plastic processing such as: PP, PE, PVC, PA, ABS, PPE, POM, PPO, HDPE, PVDC, EVOH, PETG and so on. So we are confident that we can meet your various kinds of demands for plastic blow molding machines.

Our products have a great reputation in the blow molding machinery and our products are always warmly welcomed by our new and old customers. Not only our sales in our domestic land, our products are also exported to overseas, such as America area: Canada, Mexico, Argentina, Colombia, Europe area: UK, France, Germany. Russia, Middle East area: Saudi Arabia, Oman, Iran, Turkey and the other countries of Asia: Japan, Philippines, Myanmar, India and more.
