1. PID temperature control--regulates error within ± 0.5° C, continuously and constantly, with high efficiency and energy saving.
2. Six series of protective measures--thermostatic and circuit alarm; Phase fault protect;
Pump protect; Overheat protect; Oil shortage protect.
3. Dual digital display shows the actual and set temperatures--direct and visual operations
4. Microcomputer chip control panel with light-touch switch--to start or turn off the machine automatically with just one single press
5. Visual and easy operations, easy to maintain;
6. Stainless steel tank-- durable without leakage or rust;
7. *Circumfluence design enables recollection of diathermanous oil, easily and rapidly;
8. Exquisite appearance with delicate size.

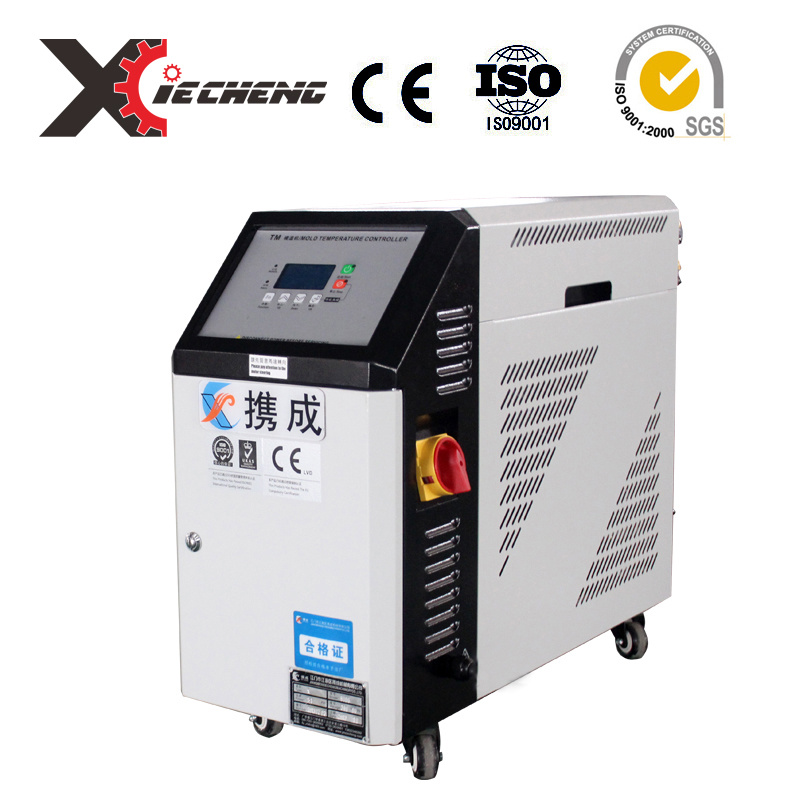

Fast Heating Mold Temperature Controller
|
Model |
XC-TM36KW-O |
|
heat transfer medium |
heat transfer oil |
|
highest temperature |
200 0 C |
|
Pump power(kw) |
3.75 |
|
Pump flow(L/min) |
380 |
|
Throw of pump |
35 |
|
Heating power |
36 |
|
Inlet of medium |
1.5"*1 |
|
Practical cooling capacity(Kcal/h) |
8000 |
|
Dimension(mm) |
980*370*710 |
|
Net weight(kg) |
112 |
