Fast Speed Die Board CO2 Laser Cutting Machine It is high power CO2 Laser Cutting Machine,with more widely applications,Printing,Packing,Mould Making,Advertising Signs,Metal Plates,Light-fixture,Hardware,Electrical Components,Craftworks,...Etc.Industries.
Video of High Power CO2 Laser Die Board Cutting Machien,please copy it and open it via Youtube,thanks.
TSD-LC1500-1218:https://www.youtube.com/watch?v=ameRY_my97Y
Application:
It's widely used in printing,packing,die making,advertising signs,metal plates,light-fixture,hardware,electric equipment,automotive,electrical components,etc.Industries.
Applicable Materials:
Plywood,MDF Board,Acrylic Board,Iron Board,Steel Board, Stainless Steel Board,Aluminum Board,Copper Board,etc.Metal and non-metal materials.
Features:
1.Gantry structure, stable working, small floor space required for machine.
2.Laser cutting head coming with automatic touching system, adapt to the jagged materials and keep cutting kerf precision.
3.Adopt Panasonic Servo Drive and Motor system, Taiwan HIWIN precision linear guide rail to keep high precision cutting.
4.Highly effective smoke-exhausting system coming with optimized dust collector device to create healthy environment for operator.
Technical Parameter:
Model No. | TSD-LC1000-1218 | TSD-LC1000-1325 |
Processing Scale | 1250x1850mm | 1300x2500mm |
Machine Weight | 2200Kgs | 2500Kgs |
Overall Dimensions | 3000x220 x1800mm | 3600x2300x1800mm |
Laser Power | 1000Watt | 1500Watt | 2000Watt |
Laser Weight | 800Kgs | 1200Kgs | 1200Kgs |
Laser Type | Axial flow CO2 Laser Tube |
Driving System | 3 Axial Panasonic Servo Motor |
Power Supply | 380 V 50Hz 10A |
Cutting Precision | ±0.05mm |
USB Port Connection | Yes |
Operating Temperature | 0-45°C |
Mould Knife Thickness | 0.45mm, 0.71mm,1.07mmetc.Controllable |
Cutting Speed | ≥60 meters per hour, 18mm plywood |
Protective Gas | Dry and oil-free air |
Numerical Control Panel | LCD screen, light-touched key-press |
Software Supported | CorelDraw, Auto CAD, Photoshop |
Graphic Format Support | PLT,DXF,BMP,JPG,GIF,PGN,TIF |
EMS Memory | Attached 64 MB memory, can work under off-line condition |
Auxiliary Gas | He, N2, CO2 |
Transmission System | Ball screw & linear guide |
H.S Code | 8456100090 |

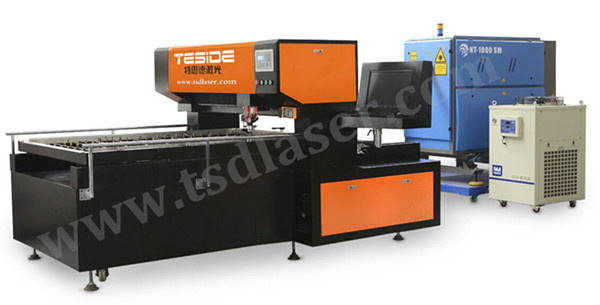

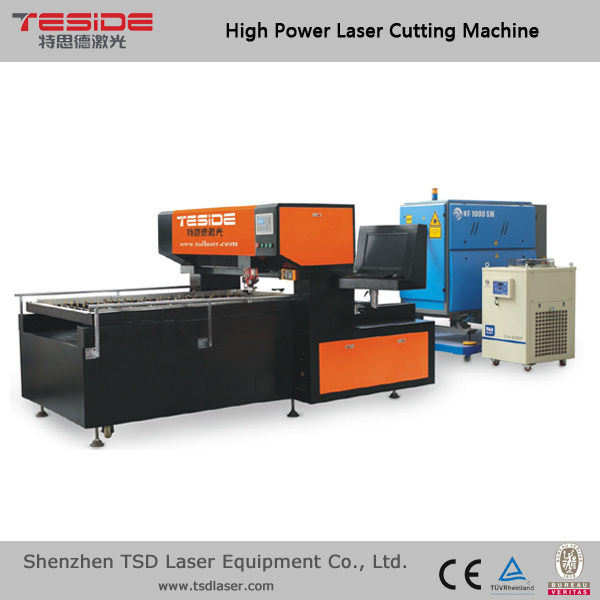

Picture of the High Power CO2 Laser Cutting Machine:
Package:
Standard Export Wooden Case,which can protect the Equipment well from damage during shipping.
TSD Laser Service:
Shenzhen TSD Laser Equipment CO., LTD adheres to the customer-oriented service concept, providing complete installation, commissioning, inspection, training, maintenance and other pre-sales and after-sales service.
Pre-sales service:
We provide customers with a variety of services including production processes proposals, technical consulting, free sample making, equipment shape designing.
Machine-installation & debugging:
According the contract, our company will ship the equipment to the port of Shenzhen or domestic user specified location.Qualified technician will be send to customer's company for machine installation and debugging.Under the proper circumstance, the technician will finish installation within three days.Please keep the installation place clean and tidy.
Training:
After machine installation and testing, qualified technician will be send to customer's company for training (machine operation, machine maintenance, machine debugging, product sample processing, etc).TSD Laser also welcome our customers to come to Chinese headquarter for machine training.The training is free of charge and it will last at least 3 days until the operator of customers' can use the machine properly and correctly.
Maintenance:
Complete and perfect after-sales service;
One year warranty and lifetime maintenance for the equipment;
Lifetime free of charge support and upgrade for hardware and software.
