Fiber Laser Marking Machine (HT-F10(A))
| Price: |
Negotiable |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |

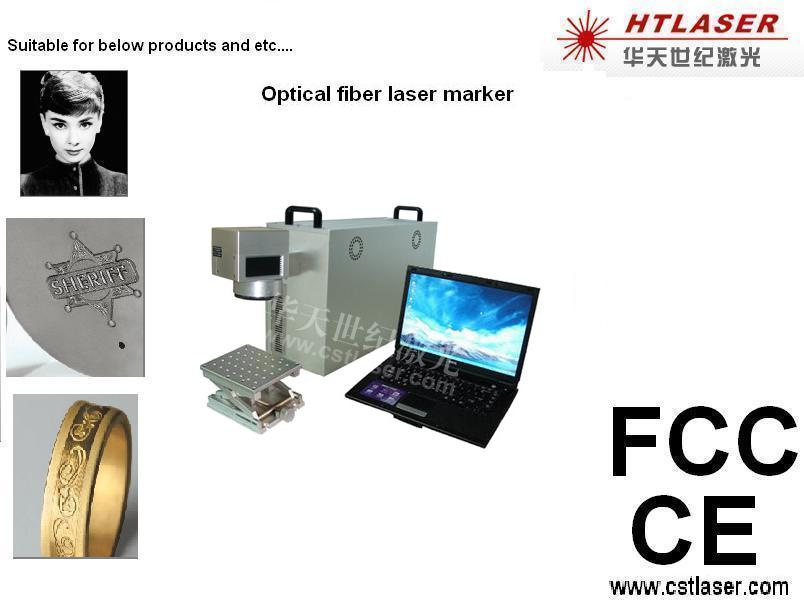

The optical fiber laser marker is the third generation laser marker system developed by our company with the most advanced technology in the world. It uses optical fiber laser to output laser and realizes marking function through high speed scanning galvanometer system. The optical fiber laser marker features high electro optic conversion efficiency, air cooling, small size, high quality output beam, high reliability, long service life and energy saving.
It can carve metal materials and certain nonmetal materials and is widely used in fields that have high requirement on depth, smoothness and fine, such as stainless steel mobile phone overlay, clock and watch, mould, IC, mobile phone keypad, etc. Bit map marking can carve beautiful pictures on the surfaces of metal and plastic, and the marking speed is 3-12 times of the speed of traditional first generation lamp pump marker and second generation semiconductor marker.
Features
Fiver optic laser is used to output laser, featuring high electro optic conversion efficiency, small size and high light beam quality.
Suitable materials and application
It is widely used in fields that have high requirement on depth, smoothness and fine, such as clock and watch, mould, bitmap marking, etc.
Model |
HT-F10(A) |
Power |
10W |
Laser wavelength |
1060nm |
Repeating frequency |
0-100KHz |
Light beam quality |
< 2 |
Carving range |
30mm× 30mm-300mmX300mm |
Carving depth |
≤ 0.4mm |
Carving line speed |
≤ 7000mm/s |
Minimum line width |
0.01mm |
Minimum character |
0.15mm |
Repeating precision |
± 0.002 |
Power supply |
220V/50Hz |
Power consumption |
500W |
Weight |
< 27kg |
Operating system |
Win98/Win2000/WinXP |
Cooling method |
Inbuilt air cooling |
Control interface |
Standard USB |
File format |
All fonts/characters in characters library of WINDOWS |
Laser type |
Pulse or continuous |
| Prod Model: |
HT-F10(A) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Laser Type: |
Fiber Laser |
| Current: |
DC |
| Usage: |
Metal |
| Engraving Machine Type: |
Laser Engraving Machine |
| Control: |
Samlab |
Shenzhen Chinasky Laser Technology Co., Ltd (HTLASER) is a joint venture of imported from the United States, Germany, England and Japan. We specialize in laser technology and are devoted into the conversion of high-tech results and development of laser industrialization.
Shenzhen Chinasky Laser Technology Co., Ltd in the research and development of optical fiber laser marker, YAG laser marker, CO2 laser marker, laser mould welder, laser spot welder, PLC automatic laser welder, fully automatic laser welder, optical fiber transmission laser welder, etc, and provides solutions of corresponding automatic system technologies.
The company keeps long term and good cooperation with famous laser companies in Germany, USA, Japan and Italy, and domestic laser institutes, ensuring the synchronous development of laser process system of Chinasky with the latest international technologies.
The products of Chinasky are distributed to Singapore, Indonesia, India, Malaysia, Thailand, Korea, Japan, USA, Hong Kong, Taiwan, Vietnam, England, France, etc. We also have established perfect technical support and sales service network in more than 50 countries and areas.
Chinasky Laser is devoted to popularizing the application of laser products in China. The laser products are widely used in different industries, such as jewelry, artworks, craftworks, electronic and electric apparatus, mobile phone communication, clock and watch, glasses, hardware, automobile parts, plastics, carpentry, organic glass, leather, medical cosmetology, etc.
Since the establishment, Chinasky Laser has been increasing the investment on technical research, improving the product quality, and has passed the EU CE certification, US FDA and FCC certifications in May 2008.
To satisfy the diversified requirements of customers, including jewelry laser spot welder, chain weaving machine, galvanometer scanning welder, 3D laser marker, end pump laser marker, laser machine, laser welding machine, laser marking machine, laser etching machine, etc.
