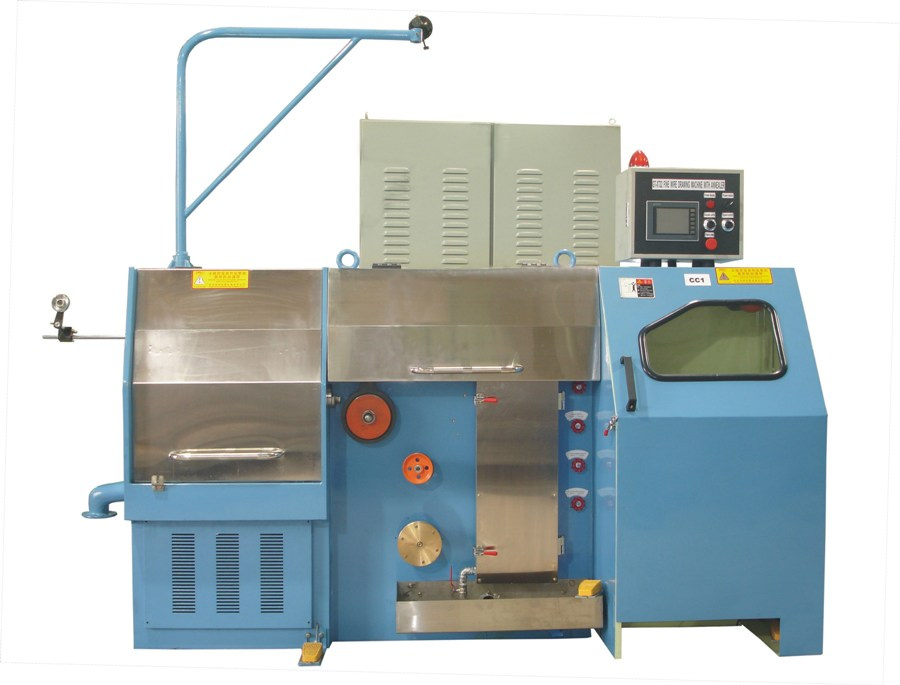

Fine wire drawing machine with continuous annealer
Model: GT-XT22
Inlet range: 1.2mm(max)
Outlet range: 0.1_0.32mm
Speed: 2000rpm(max)
OD of die: 25mm
Die NO.: 24(max)
Elongation: The 1st to 21st: 13%: The 24th: 8%
Main motor: 15KW*4P(speed change by inverter)
Take-up motor: 3KW*4P(speed change by inverter)
Annealing: 500A(max)
Annealing: 60V
Annealing type: DC 3 phases
Annealing temp.: 400_450
Dia. Of capstan: 150mm
Cone pulley: 10 layers (ceramic coated)
Traverse type: Screw
Take-up bobbin: PN300
Total power: 60KVA
Weight: About 3500KG
Size: 3100*1300*2100
Compress air: Flow 5-8m3/h pressure 6-7kg/f clean without dirt or water drop
Cooling water: Flow 2.5-3m3/h pressure 2-4kg/f temp.: ≤28 clean
Drawing oil: Flow 150L/min pressure 2-4kg/f temp.: 30 - 40
