Home Mould Products Fire Seal/Nylon Cable Tie Injection Mould/ Moldmelee Mould -312)

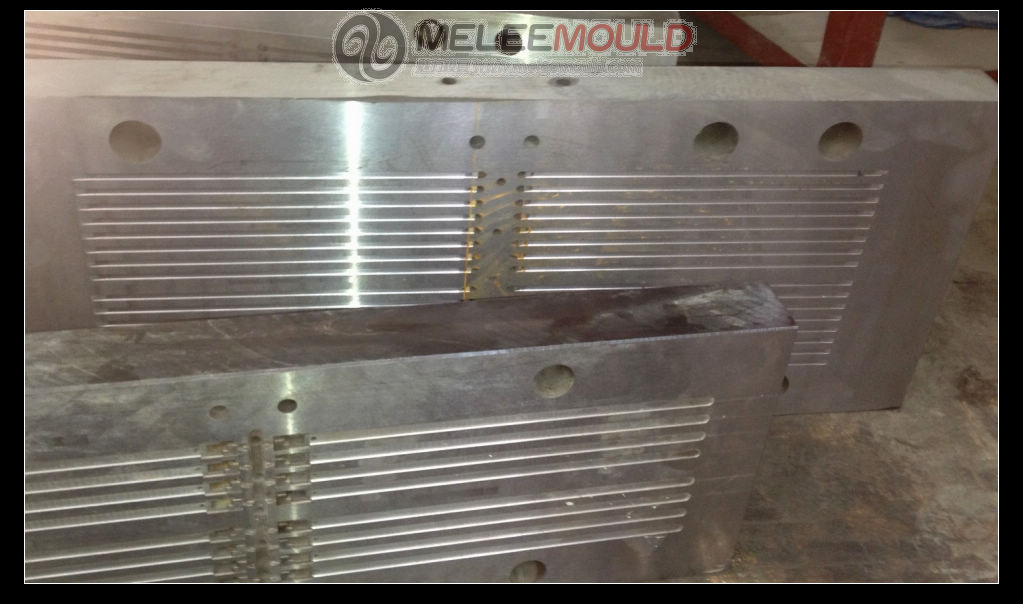

Fire Seal/Nylon Cable Tie Injection Mould/ Moldmelee Mould -312)

Fire Seal/Nylon Cable Tie Injection Mould/ Moldmelee Mould -312)
Price: US $ 4000/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: T/T,Western Union
Contact Supplier
Taizhou Melee Mould Co., Ltd.
Showroom Product Company Profile
Nylon Cable Tie Injection Mould/MOLD. Cable Tie Mould/Mold, Nylon Cable Tie Mould/mold.
Detailed Product Description

1. Materials: Nylon 66, 94V-2 certificated by UL. Heat-resisting, acid & erosion control, insulate well and not apt to age
2. Operating temperature: -35 ~ +85oC
3. Color: Natural (or white, standard color), UV black and other colors are available
4. Maximum Bundle Diameter can reach 380mm. Minimum Loop Tensile Strength can be 18 pounds.

Self-lock nylon cable tie Mould

1. Multi-cavities, can be made as customers' need.
2. Maximum 3 million mold life can change as customers' production quantity.
3. Also available for OEM on your own design.
SPECIFICATION
(WIDTH*LONGTH)
mm		 Longth
INCH		 Packing
(Polybag)		 Min. Loop
Tensile
  Strength		 BUNDLE DIAMETER (mm) Carton Size
(cm)		 N. W
CTN
(Kgs)		 G. W
CTN
(Kgs)		 Quantity
per Carton
  (Bag)
1.8*100 4" 100pcs 14 LBS      6.5 KGS 2~22 54*35*35 16 18 1000pkt
1.8*120 4.7" 100pcs 14 LBS      6.5 KGS 2~30 54*34*34 16 18 800pkt
1.8*150 6" 100pcs 14 LBS      6.5 KGS 2~35 54*35*35 20 22 800pkt
1.8*200 8" 100pcs 14 LBS      6.5 KGS 2~50 54*32*32 19 21 500pkt
2.5*100 4" 100pcs 18 LBS            8 KGS 2~22 50*30*30 13 15 500pkt
2.5*150 6" 100pcs 18 LBS            8 KGS 2~35 50*32*32 18 20 500pkt
2.5*200 8" 100pcs 18 LBS            8 KGS 3~50 54*32*30 20 22 400pkt
2.7*150 6" 100pcs 22 LBS        10 KGS 3~35 52*30*30 13 15 300pkt
2.7*180 7" 100pcs 22 LBS        10 KGS 3~40 54*32*30 20 22 400pkt
2.7*200 8" 100pcs 22 LBS        10 KGS 3~50 50*30*30 14 16 250pkt
2.7*250 10" 100pcs 22 LBS        10 KGS 3~65 54*34*34 20 22 300pkt
2.7*300 12" 100pcs 22 LBS        10 KGS 3~80 54*32*32 17 19 200pkt
2.7*350 14" 100pcs 22 LBS        10 KGS 3~90 54*34*34 21 23 200pkt
3.6*150 6" 100pcs 40 LBS        18 KGS 3~35 54*30*30 17 19 300pkt
3.6*200 8" 100pcs 40 LBS        18 KGS 3~50 50*30*30 15 17 200pkt
3.6*250 10" 100pcs 40 LBS        18 KGS 3~65 54*35*35 24 26 250pkt
3.6*300 12" 100pcs 40 LBS        18 KGS 3~80 54*30*30 18 20 150pkt
3.6*350 14" 100pcs 40 LBS        18 KGS 3~90 54*30*30 14 16 100pkt
3.6*370 14.6" 100pcs 40 LBS        18 KGS 3~105 59*30*30 24 26 150pkt
3.6*400 16" 100pcs 40 LBS        18 KGS 3~105 54*32*32 17 19 90pkt
4.6*150 6" 100pcs 50 LBS        22 KGS 3~35 54*32*32 16 18 200pkt
4.6*200 8" 100pcs 50 LBS        22 KGS 3~50 50*30*30 16 18 150pkt
4.6*250 10" 100pcs 50 LBS        22 KGS 3~65 50*30*30 17 19 120pkt
4.6*300 12" 100pcs 50 LBS        22 KGS 3~80 50*30*30 17 19 100pkt
4.6*350 14" 100pcs 50 LBS        22 KGS 3~90 54*30*30 18 20 90pkt
4.6*370 14.6" 100pcs 50 LBS        22 KGS 3~98 54*32*30 21 23 100pkt
4.6*400 16" 100pcs 50 LBS        22 KGS 3~105 54*35*35 29 31 120pkt
4.6*450 17.7" 100pcs 50 LBS        22 KGS 3~130 54*35*35 28 30 100pkt
4.6*500 19.7" 100pcs 50 LBS        22 KGS 3~150 59*30*30 23 25 70pkt
7.2*250 10" 100pcs 120LBS        45 KGS 4~65 54*32*32 20 22 80pkt
7.2*300 12" 100pcs 120LBS        55 KGS 4~80 50*30*30 19 21 60pkt
7.2*350 14" 100pcs 120LBS        55 KGS 4~90 50*30*30 17 19 50pkt
7.2*370 14.6" 100pcs 120LBS        55 KGS 4~98 50*30*30 17 19 50pkt
Prod Model: MELEE MOULD -312
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Shaping Mode: Injection Mould
Installation: Fixed
Process Combination Type: Single-Process Mode
Application: Hardware, Mechanical and Electrical
MELEE MOULD Co., Ltd is located in Huangyan, Zhejiang ---" Mould Hometown of China". We specialize in manufacturing plastic mould, such as bumper mould, Auto parts mould, Commodity mould, Pallet mould, Trash bin mould, Waste bin mould, Home Appliance mould, Crate mould, Bucket mould, Plastic containers mould, Pipe fitting mould, Pet preform mould, Costing mould. Stamping die mould etc, more than 95Percent of the moulds were sold to Europe, North America, South America, Asia and so on for more than 30 countries and regions.

MELEE MOULD Co., Ltd have more than 15years experience for doing moulds. And we have technical personnel and designers. We can provide high quality moulds and best sevice for our customers based on great technical development and rich manufacturing experience. We won the good reputation of our customers at home and abroad.

We try our best to update technology and improve competitiveness. Now, our company has developed into a modern management enterprise. It will be a great help with the introduction of CAD/CAE/CAM technology, CAD/CAM graphics workstations and graphics drawing instruments and equipments. In addition, we can adapt to the requirements of customers quickly by using C-mould software and mould analysis of reverse engineering design software system.

All the moulds supplied by our company with the features as follows: High precision, long life, short production period & delivery time, reasonable price, satisfactory service, have enjoyed good popularity and high credit.

Melee mould Co., Ltd. Expect the cooperation with new and old customers, create beautiful future.
