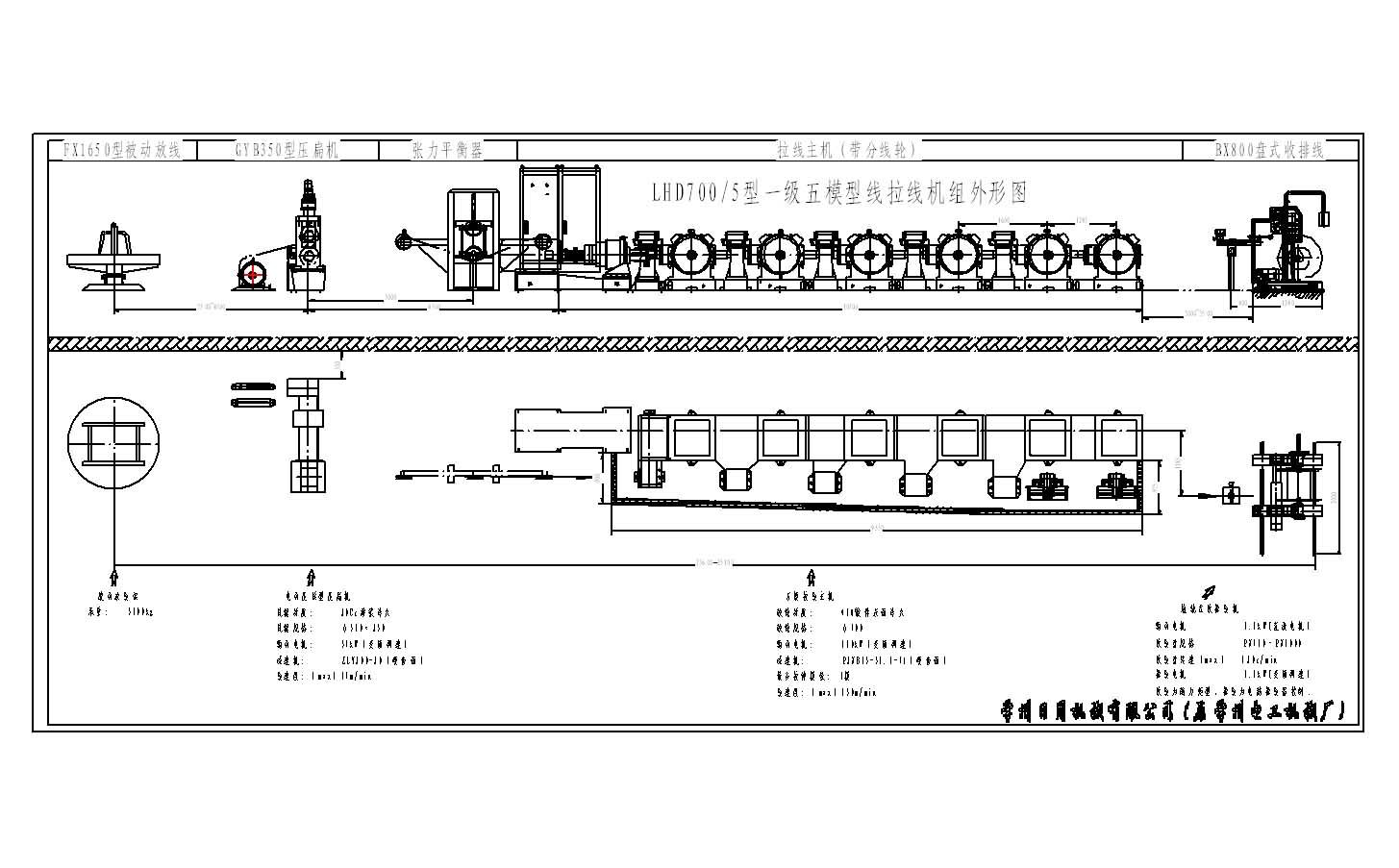

Five-Die One Wire Drawing Machine (LHD700/5)
For copper wire
Main technical parameter of LHD700/5:
Wire take-up device: Coiling passice take-up machine
Active flatting: Drive power 37kw, diameter of roller 350mm, wire out speed 85m/min
Tension controller: To control the speed of the flatting.
Wire drawing host machine: Drive power 90kw, Max diameter of wire in die14cm, diameter of wire drawing drum wheel 700mm, diameter of wire out dum wheel 700mm setion area of wire out 10-80mm(square) wire out speed 130m/min
Wire rewinding machine: Gantry wire rewinding reel specification PN710--PN1000.
Changzhou Riyue Machinery Co., Ltd. (former Changzhou Electrical Machinery Factory), having nearly thirty years of machinery manufacturing history, is an enterprise specially engaged in manufacturing electrical machinery products professionally with competitive technological design and product development capability, complete production and test means, perfect pre-sale and after-sale service. The TBJ300, TBJ350, TBJ400 etc copper and aluminum continuous extruders, copper wire and aluminum wire drawing machines are well known in the country and exported to foreign countries and regions such as South Korea, South Africa etc.
The company is ISO9001-2000 international standard certified and successively honored as AAA Credit Standing Enterprise, Provincial Level Advanced Enterprise of Quality Management, Start Enterprise, Changzhou City Civilized Unit, Contract-honoring and Faith-keeping Enterprise etc. The company sticks to develop by relying on good credit standing and to develop by relying on science and technology; keeps carrying out quality management activities in accordance with ISO9001-2000 quality manual, ensuring the customers at home and abroad with satisfactory products that are highly qualified, good in production performance and inexpensive.
The company is located at the south gate of Changhzou City of the well-known the Yangtze River Delta; occupies 36, 000 square meters; has a plant of over 20, 000 square meters, more than 130 staff, and more than 90 various machine tools for production. The environment and infrastructures are complete and well constructed, which is quite convenient in transportation.
