PE Flange
1)Use the imported polyethylrnr injection mould pipe fitting
2)Can use for fuel gas pipe
3)Heat-fusion injection

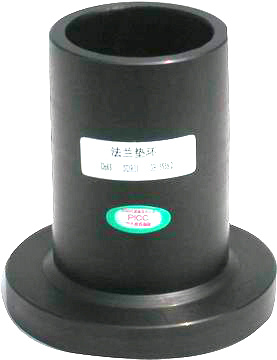

Heat-fusion injection mould flange (pipe fitting)
Imported polyethylene injection mould pipe fittings special for fuel gas pipe, it can be connected through abutting joints or electric fusion pipe fittings.
Table of Specifications and External Dimensions: PE80 SDR11(1.25Mpa) SDR17(0.8Mpa) PE100 SDR11(1.6Mpa) SDR17(1Mpa)
Dn Entire Length Hoop Thickness Hoop Dia. Dn Entire Length Hoop Thickness Hoop Dia.
Dn(mm) L(mm) L1(mm) D(mm) Dn(mm) L(mm) L1(mm) D(mm)
40 80 10 82 225 182 30 270
50 80 12 90 250 184 30 313
63 95 13 98 315 208 30 370
75 105 15 116 355 223 30 435
90 110 15 133 400 210 30 485
110 122 18 157 450 210 30 485
125 130 20 180 500 230 50 588
160 146 24 208 560 230 50 660
200 166 30 264 630 230 50 690
Yuyao Hemudu Qingfa Industry Co., Ltd. was founded in 1994. The company majors in manufacturing PE Pipes for gas as well as water, developed according to German technology, and PE ball valves, etc. The company takes "QINGFA" as its registered trade mark.
The company is located in Hemudu Town, 3 kilometers away from the famous Hemudu Historic Site. The company covers an area of 60, 000 square meters, and the building area is more than 20, 000 square metres. Now the company owns a staff of 130 with more than 20 technicians, and its fixed assets have exceeded 50, 000, 000 yuan.
The company has introduced galvanothermy thread PE Pipes developed according to German technology. In 2002, it was confirmed fully meeting the national standards after being sampled by National Technology Supervising
Bureau and being tested by the National Chemistry Material Testing Center as well as Zhejiang Disease Prevention & Control Center. The company has also obtained the admission for manufacturing products used in the field of drinking water as well as the certificate for manufacturing special equipment (pressure pipes).
Pipes of the sizes between Dn20-Dn630 and ball valves of the sizes between Dn50-Dn315 are available at the moment.
The company owns 14 plastics mould processing lines of 35, 500 kilogram and 12, 000 kilogram, and other more than 30 pieces of assistant equipment. The company also has a quality supervising and testing center, with a few professional engineers in pipe and ball valve designing and manufacturing.
It is encouraging that some of the technology is the first at home, and the company has applied for national patent, with the number 02288722.9. The company has passed ISO9001.
We sincerely look forward to serving you with products of superb quality and excellent service.
