Restrictor bar for option
Various width adjust systems are optional

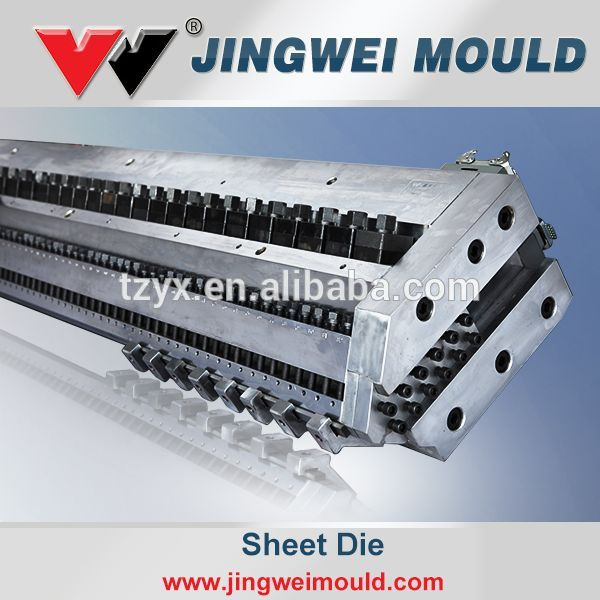

Heavy Gauge Sheet Dies
With 90° Restrictor bar
Upper die lip adjustment range max.: 11mm
Width adjustment system optional
Product thickness max.: 60mm
Cast film dies
Die width: Tailor made up to 8000mm
Product thickness tolerance: ± 3%
Die lip radius: R0.05
Die lip surface finish: Up to R 0.01μm
Flow channel surface harden treatment by chromium plating. Plating thickness: 0.02-0.03mm
Hardness: HV900-1000
Roughness of flow channel: R 0.01-0.02
Coating film dies
Surface finish-polishing could reach R 0.02-0.04μm.
Suitable linear speed is 100-4 0 0M/min
The fillet coefficient of die lip edge could be reach about 0.045mm through special process
Coating thickness: From 0.015 to 2.5mm
Viscosity of raw materials: 100CPC to 120000CPC
Tolerance: Within ± 1%
PVC Foam Sheet Dies
Application: Foam PVC building products, bathroom fixtures, poster boards etc.
Die structure: Special design for flow channel and multiple oil temperature control
Zones at dip lips which stabilize the flow and calibrating area.
Updated design for PVC celuka dies: The lip exit is equipped with a unique water
Cooling system, to reduce foam density and make the surface harder.
Taizhou Huangyan Jingwei Mould Co., Ltd., is one of the pioneer manufacturers of molds for plastic panels, sheets and films. We are located in the Economically Developed Land of Molds & Dies, Huangyan, Zhejiang. Jingwei is a professional manufacturer of single-layer/multi-layer dies, either-thin or extra-thick, of various sizes. Customized sizes to meet customer's every demands are available.
Our mission statement: Excellent quality, sound goodwill, and service. Satisfactory long-term unremitting efforts have resulted in extensive quick screen-changing units and multi-layer co-extrusion feed-block of various sizes and types are available. We have CAD/CAM designing and CNC machining, contributing to higher precision premium products of consistent quality products.
We are your trust worthy partner.
