Structure
Lining: Polyurethane
Reinforcement: high tensile steel
Outer layer: Polyurethane
Temperature range: -40ºC~90ºC
Features
1. High low temperature performance good, strong adaptability,
2 .High pressure, light weight, small bending radius, light and flexible, convenient technical design and production installation.
3. Good flame resistance, impact resistance, aging resistance, fatigue resistance, non-toxic
4 .Has high elasticity, high elongation, high strength.

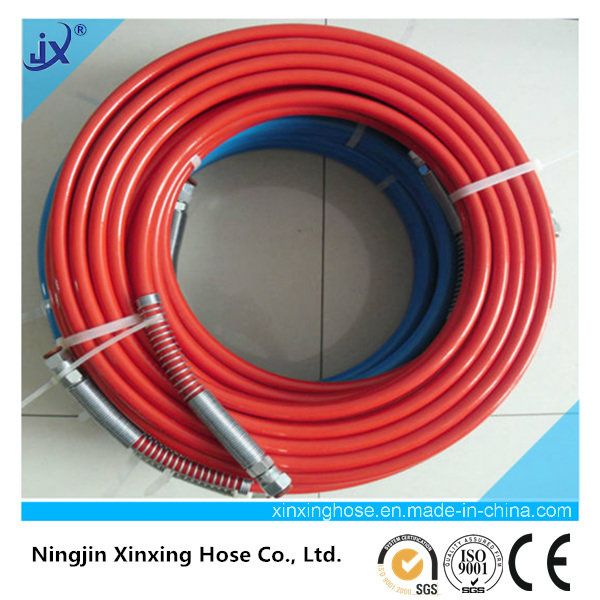

5.The paint hose is suitable for pneumatic tooling, spray and painting guns
6.High pressure spray paint hose has been created for the high pressure conduction of Polyols, Solvents, Paints and Compatible gas.
Applications
Airless spray paint Machinery, ship factory, auto factory, machinery factory, etc.
Technical parameters
NO. | Hose Type | I.D. | O.D. | W.P. | B.P. | Min.Bend Radius | Weight |
|
| mm | mm | MPa | MPa | mm | g/m |
| 1 | GDN6-20MPa | 6 | 12.5 | 20 | 60 | 50 | 130 |
| 2 | GDN6-30MPa | 6 | 14 | 30 | 90 | 55 | 200 |
| 3 | GDN6-40MPa | 6 | 14 | 40 | 120 | 55 | 210 |
| 4 | GDN8-20MPa | 8 | 13.5 | 20 | 60 | 60 | 210 |
| 5 | GDN8-30MPa | 8 | 16 | 30 | 90 | 70 | 320 |
| 6 | GDN8-40MPa | 8 | 16 | 40 | 120 | 75 | 350 |
| 7 | GDN10-20MPa | 10 | 16 | 20 | 80 | 80 | 310 |
Our Advantage
(1)We can do the designs according to customers' requirements (2)We can open customers' own mold as per their requirements.
(3)We can offer you a good after-sell service.
(4)Prompt delivery.
Quality Testing & Packing
(1)Quality test: 100% pressure test and leakage test before packing.
(2) packing details: standard export packing or according to customer's special requirements
Ningjin Xinxing hose Co., Ltd. is a new enterprise development of high performance resin hose
The products have been widely used in petroleum, chemical industry, engineering machinery manufacturing, coal mining, shipbuilding, aviation, automotive, medical equipment and other industries, is the hydraulic and mechanical equipment ideal pneumatic hose, is the most ideal equipment pressure hose, liquid, and powder delivery, high pressure spraying, high pressure cleaning, sand blasting and other fields.
The company has strong technical force and professional design production capacity, have established close cooperative relations with many domestic university and Research Institute, and constantly develop new practical quality products.
Our company supplys different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
