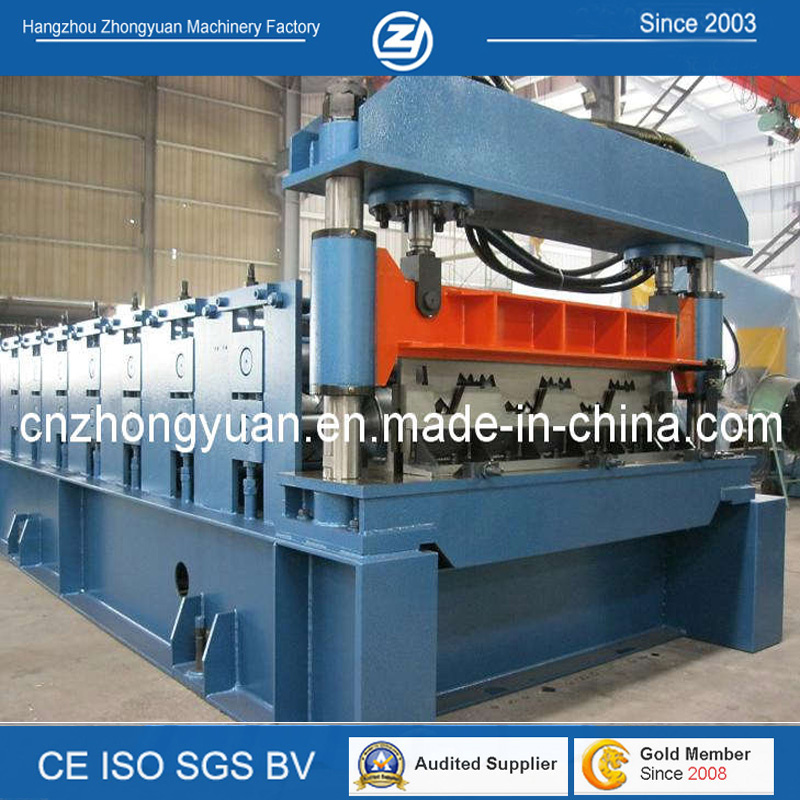

Floor Deck Forming Machine
Our Metal Roll Forming Machine's advantages
1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .
2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.
3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.
4. High precision: shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.
5. People originate: introduced Mitsubishi PLC with touch screen. Friendly man-machine interaction.
6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifetime services for our machines.
7. All-in-house source: We are "All-in-house source" factory to ensure quality and delivery of your machines.
8. Long life: Ensure you our produce machine's lifetime more than 10 years.
Certificate: ISO 9001, CE,
Parameter
Iterm | Specification |
Material | Type | Color steel sheet or galvanized steel sheet |
Thickness(mm) | 0. 8 -1.2 |
Yield strength(mpa) | 235 -345 |
Roller material | 45#Chrome steel |
Forming speed(m/min) | About 15-20m/min |
Speed adjusting mode | AC Frequency |
Roller drive | Decelerating motor + Chain drive |
Cutting mode | Hydraulic cutting |
Cutter material | Cr12 mould steel |
Length measurement | Encoder |
Control mode | Mitsubishi PLC |
Operating mode | Button + Mitsubishi Touch screen |
Main motor power(kw) | 18.5KW (Depend on final design) |
Hydraulic station power | 5.5K W (Depend on final design) |
Total power(kw) | 30KW |
Uncoiler's loading capacity | Max. Capacity: 5000kgs (can be increased to be 10T) |
Machine`s size | About 20*1.5*1.6m (Depend on final design) |
Machine weight | About 15000kgs |
Components of machine:
Decoiler | 1set |
Feeding & guiding device | 1set |
Pressing system | 1set |
Main roll forming machine | 1set |
Cutting device | 1set |
Hydraulic cutting system | 1set |
PLC Controlling system | 1set |
Run out table | 1set |
Process flow:
Decoiler -- Feeding & Guiding -- Pressing--Roll Forming--Hydraulic Cutting - Product to Run Out Table
Controller:
We choose Mitsubishi PLC from Japan.We choose Mitsubishi PLC from Japan.
With touch screen mode, let your workers enjoy the easy operation; with auto working mode, let your workers free their hands!
