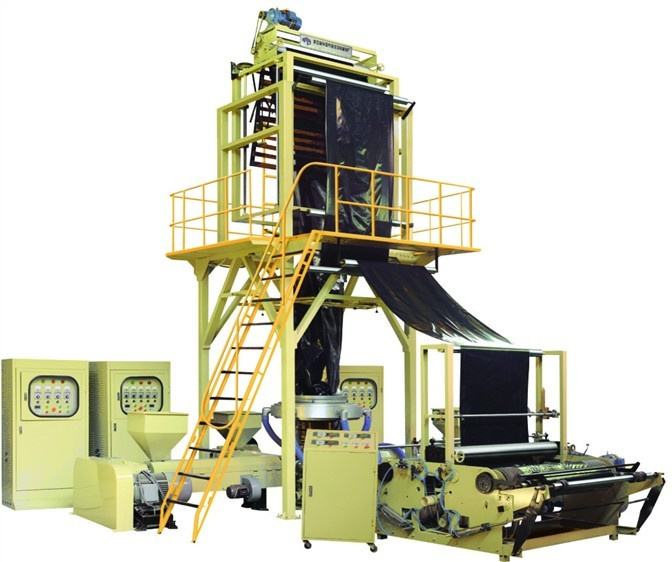

Feature
Haul-off unit is oscillating reverse by horizontal± 180° . Its structure is reasonable, so it economizes lots of energy and it is easy to maintain. By means of the reversing haul-off unit, films can be produced without requiring rotating diehead, so the structure of diehead is simplified. Reversing haul-off unit eliminates many problems of ling channel for the rotating diehead, diffficult sealing for the melt, compound leakage being easy, unsymmetrical heating, difficult maintenance, macro film tolerance and so on Haul-off unit reduces the drgree of difficulty for recipe of the multi-layer coextruded product and production technical processing control, If the blown film line is with IBC (Internal Bubble Cooling system), it can produce film with the quality of more high-grade transp-arency and better all round performance. The produced film is very flat, reel is high-quality by the use of reversing haul-off units. The film can meet the demand for the high-speed printing.
|
Type |
M3B-1300Q |
M3B-1500Q |
M3B-1700Q |
|
Max.Layflat Width mm |
1200 |
1400 |
1600 |
|
Film Layer |
3 |
3 |
3 |
|
Film Thichness mm |
0.02-0.12 |
0.02-0.12 |
0.02-0.12 |
|
Max.Output kg/h |
120 |
150 |
180 |
|
Raw Material |
MLLDPE/LLDPE/LDPE/EVA |
|
Screw Diameter mm |
Φ55×3 |
Φ60×3 |
Φ65×3 |
|
Screw L/D Ratio L/D |
28:1 |
28:1 |
28:1 |
|
Screw Max.Rotation Speed |
100r/min |
100r/min |
100r/min |
|
Extruder Driving Power kw |
22×3 30×3 37×3 45×3 |
|
The Way of Screen Changing of Extruder |
Manual Twin-station Changing Screen Quickly |
|
Die Structure |
IBCWith or Without IBC(Internal Bubble Cooling System) |
|
Air-ring Srtucture |
Cual-lip |
|
|
Film Turning Mode |
Horizontal |
|
Reversing Haul-off System |
Angle of Reversing |
±1800 |
|
Take-off Wind-up Speed |
45r/min |
45r/min |
45r/min |
|
Total Power kw |
≈85 |
≈110 |
≈140 |
|
Overall Dimensions(L×W×H) M |
10×6×9 |
10×6×9.5 |
11×7×10 |
|
Weight T |
≈20 |
≈25 |
≈32 |
