Food Machine for Biscuit

Food Machine for Biscuit
Price: US $ 400000/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: L/C,T/T

                          Food Machine for Biscuit

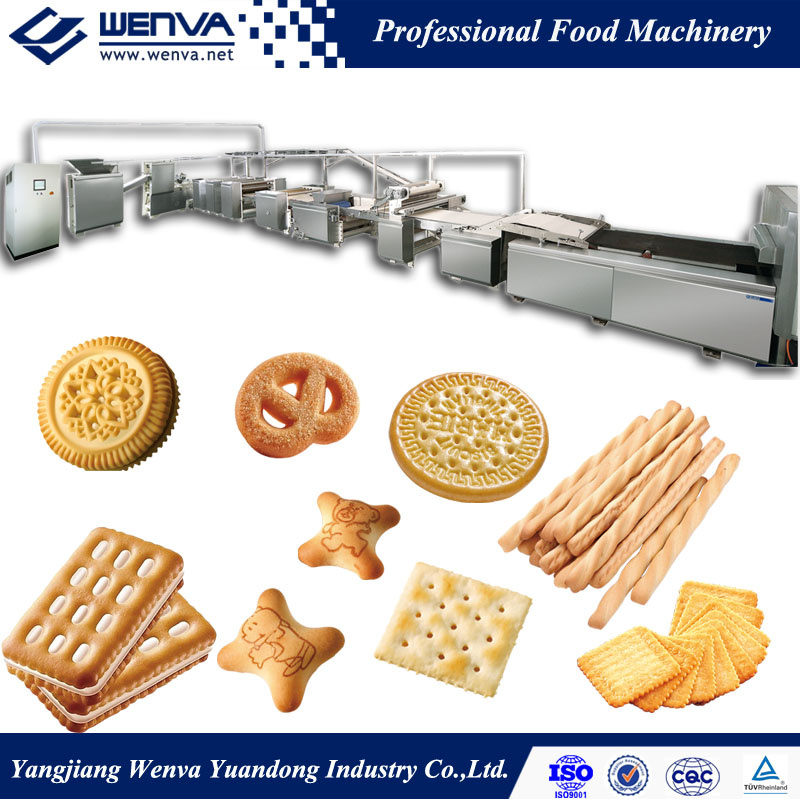

Food machine for biscuit is uesd  for producing hard & soft biscuit, cracker, sandwich biscuit, core filling biscuit and wire cut cookies, deposited cookies.

All working procedures that from dough mixing,feeding, sheeting, moulding, scrap recycling, baking,cooling to stacking can be completed automatically in one line.



Different woking widths 620mm,800mm,1000mmm,1200mm are available.






Tunnel oven power resource: eletricity, natural gas, LPG.



High yield.



Multi-purpose.

Hard Biscuit,

Soft biscuit,

Cracker,

Cookies. ( just need to install a cookies machine in the line, sharing the dowmstream machines)

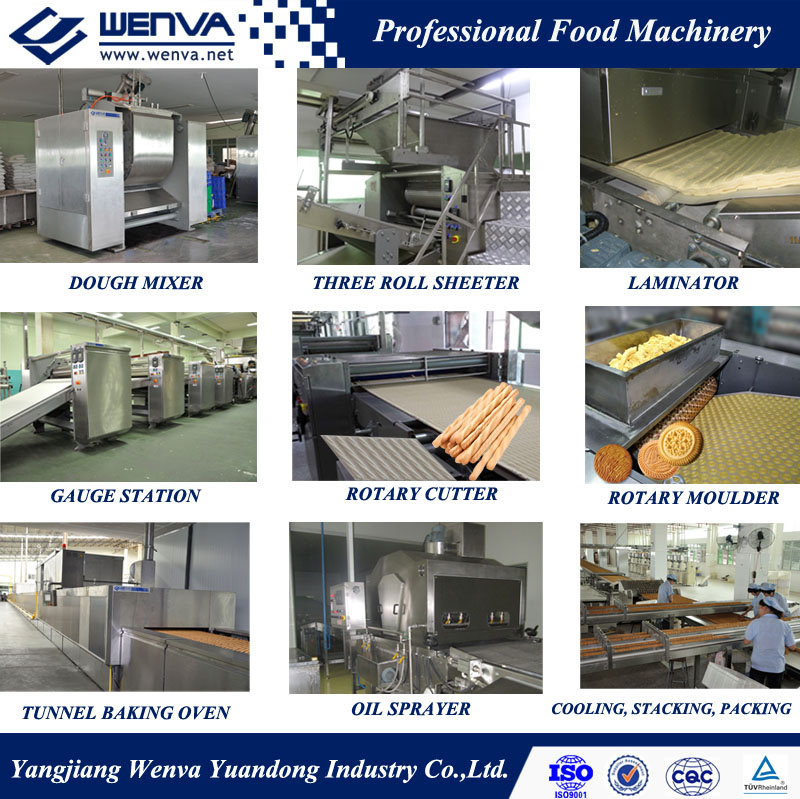

Food machine for biscuit comprises various type of mixers, dough feeding systems, different configurations of sheeting equipment,  laminator, rotary cutter at one or two rolls with its ancillary equipment (decorators, sugar or salt sprinklers), rotary moulder(for soft biscuit), Baking oven ( Convection , Direct Gas Fired or Hybrid at two or three combinations), Cooling conveyors, Stacker and final Packaging conveyor for product collecting.



Dough mixer:

used for dough mixing.



Dough dump station:

transport large batches of dough from portable dough troughs into a continuous dough feeding or sheeting system.





Dough feeding system :

Dough is dumped into the Feeder and the conveyor moves the dough evenly  and send the dough to the guillotine, the pneumatic-powered guillotine cut the  dough into the right-sized pieces, the outlet conveyor to moves them to the sheeting equipment.




Three-roll sheeter:

generates a consistent dough sheet ready for further thickness reduction or lamination. Two grooved rolls draw the dough into the pressurized cavity between the three rolls, and the dough is compacted and discharged as a continuous sheet. The thickness of the dough sheet is changed by adjusting the gap between rolls.




Laminator(with flour sprayer):

Laminating produces a light, crisp texture, which cannot be achieved in any other way.

Gauge station (Two-roll sheeter):

is a fundamental machine in most cracker, hard biscuit production lines. Parallel, hardened, solid-steel rolls  reduce the dough sheet thickness.



Rotary cutter:

Rotary cuttier is forming machine for cracker and hrad biscuit.

When dough sheet go through rotary cutter, it will be cut and shaped by moulds.




Rotary moulder: used to form the soft biscuit.

After crushed by roller, the dough go through the moulder to form.

Grooved feed roller ensures uniform pressure across the die roller.

The distance between feed roller and die roller is adjustable.



Separate machine:

Separating the scrap from the biscuit sheet after rotary cutting.



Recycle device:

transporting the scrap by conveyor to hopper of the three-roll sheeter for reuse.



Baking Oven:

Baking oven is used for baking biscuits, cookies and ruffles and potato chips and crisp and  many more products.

Heated by LPG and natural gas or electricity.

Pre-manufactured and insulated in 3-m-modules for fast and easy installation.

Burner flames heat up the burner chamber and the tubes in the heat exchanger.

Heated air transferred via tubes to the top and the bottom of the baking chamber.

Combustion gases removed by flue system without contacting the products.

Heat recovery unit for energy savings and reduction of CO2 emissions.

Burners controlled by temperature sensor to ensure constant and correct baking temperature.

Band driving and tensioning stations ensure smooth running of the bands.

PLC controlled and operation via touch screen.





Cooling conveyor, stack and packing table.


biscuit sample

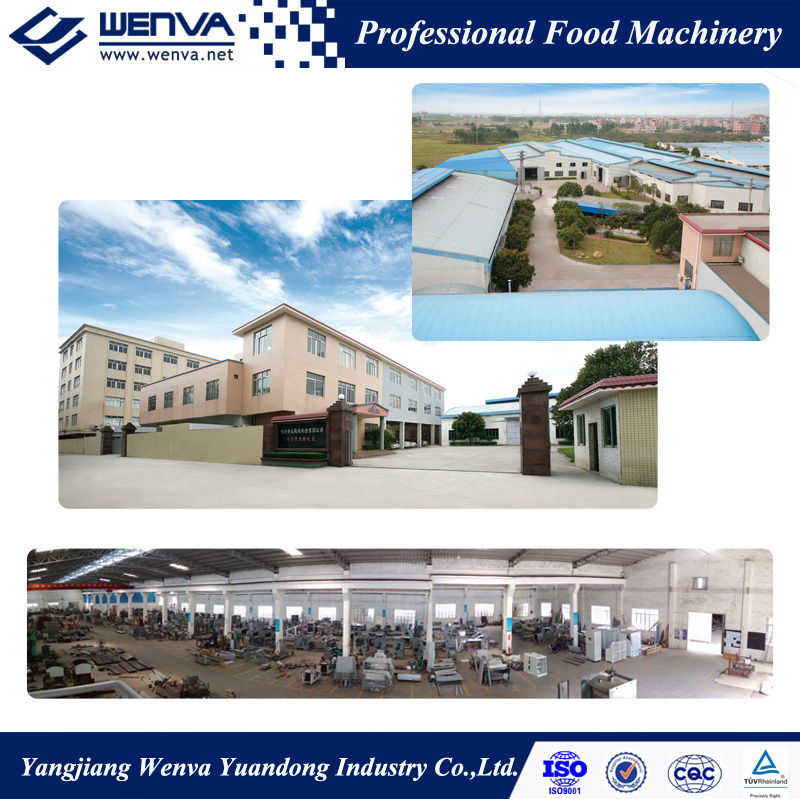

Factaory




Working widthLength of oven Heating zoneOutput capacity
62050M3500-630KG
80050-60M4750-1000KG
100050-60M4880-1130KG
120065M41000-1250KG

Prod Model: 620/8000/1000/1200
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Condition: New
Place Of Origin: Guangdong, China (Mainland)
Brand Name: Wenva
Model Number: 620/800/1000
Usage: Biscuit
Type: Tunnel Baking Oven
Power Source: Electric/Gas
Voltage: 380V
After-Sales Service Provided: Engineers Available to Service Machinery Overseas
Automatic: PLC Controlled
Application: Cookie
Yangjiang Wenva Yuandong Industry Co., Ltd.Is an industrial company with the manufacture food machine experience more than 30 years in China.Our company is specialized in manufacturing series of biscuit production line,biscuit sandwiching machine,injection machine and packaging machine for biscuits,cookies production line,canday production line etc.Our products with complete function,good appearance and practical,easy operation,safe and reliable,production processing,hardware configuration are fully exceed the industry level of similar products.Our factory covers more than 15,000 square meters for manufacturing.There are top-ranking engineer team,top-class technology,qualified inspection,excellent training and elegant office buildings.We have been exported to Nigeria,South Africa,Russia,Vietnam,Thaliland,Malaysia,Indonesia and many other countries and regions.Yangjiang yuandong food industry co.,Ltd.Is an integrated with development,manufacturing and after-sale service.And equipped with a strong technical stength,advanced mechanical processing equipment and production base for the clients to visit and investigate.We not only can provide complete biscuit production line as the clients needs,including whole factory project,system design,technological process,production line configuration,equipment modification plan and project implementation.But also we can provide our profoessional engineers to your plant to assemble your machine and show you the operation.

We go forward to fulfill customer's requests with the latest technique.And we adhere to technical innovation progress and scientific management.We are committed to providing quality products and service.Sincerely welcome both new and old clilents to come for inquiries and negotiations.We have professional team in machinery industry, they are good at food machinery technology and equipment production for many years.In recent years, we educate many young engineers in order to sustainable development of company and new subsequent blood in the company.

Yangjiang yuandong food industry co.,Ltd.Is an industrial company with the manufacture food machine experience more than 30 years in China.Our company is specialized in manufacturing series of biscuit production line,biscuit sandwiching machine,injection machine and packaging machine for biscuits,cookies production line,canday production line etc.Our products with complete function,good appearance and practical,easy operation,safe and reliable,production processing,hardware configuration are fully exceed the industry level of similar products.Our factory covers more than 15,000 square meters for manufacturing.There are top-ranking engineer team,top-class technology,qualified inspection,excellent training and elegant office buildings.We have been exported to Nigeria,South Africa,Russia,Vietnam,Thaliland,Malaysia,Indonesia and many other countries and regions.Yangjiang yuandong food industry co.,Ltd.Is an integrated with development,manufacturing and after-sale service.And equipped with a strong technical stength,advanced mechanical processing equipment and production base for the clients to visit and investigate.We not only can provide complete biscuit production line as the clients needs,including whole factory project,system design,technological process,production line configuration,equipment modification plan and project implementation.But also we can provide our profoessional engineers to your plant to assemble your machine and show you the operation.

We go forward to fulfill customer's requests with the latest technique.And we adhere to technical innovation progress and scientific management.We are committed to providing quality products and service.Sincerely welcome both new and old clilents to come for inquiries and negotiations.

We warmly welcome friends both at home and abroad to contact us for more information, and look forward to opportunities of establishing business relationships with you in near future.
