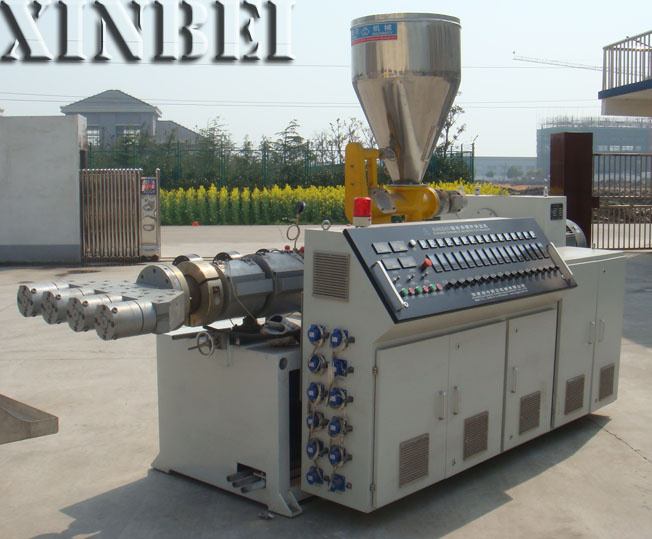

This machine is the core and head part of PVC pipe production line.
Raw material could be PVC particles or powder, feeded through hopper in the top. The output PVC pulp extruded by the srews will go through the special designed mould for the first step shaping. The pipe diameter is controlled by the mould which will be designed accordingly.
The equipment is suitable for extruding thermoplastics, such as hard and soft polypropylene\PVC\polyester, for example, pipe, stick, film, thread, cable insulation, hollow article etc.
Features:
1) Suitable for extruding all types of polyene materials
2) Can be combined with various auxiliary machinery
3) Screw L/D ranges: 30, 45, 65, 90, 100, 120, 150, 200
4) Controller: Normal, HMC microcomputer controller (optional)
5) Length / diameter ratio can be changed (suitable between 25: 1 - 33: 1)
6) Specially designed screw, high-torque decelerator and high power DC motor ensure good mixture of material and high output.
The machine is equiped with three-phase asynchronous motor, drive device, extruding parts, temperature controlling syestem, independent electrical cabinet etc.
Whole processing line description:
After the material is extruded out, the shaped pipes will be tracted through vaccum box and water tank for cooling, lastly they will be a cutting machine or winding machine to collect ready goods...
|
Model |
XB-45/33 |
XB-65/33 |
XB-75/33 |
XB-90/33 |
XB-120/33 |
XB-150/33 |
|
Screw diameter(mm) |
45 |
65 |
75 |
90 |
120 |
150 |
|
L/D |
33: 1 |
33: 1 |
33: 1 |
33: 1 |
33: 1 |
33: 1 |
|
Transmission Power(kw) |
30 |
75 |
90 |
160 |
250 |
315 |
|
Center Height |
1000 |
1000 |
1100 |
1100 |
1100/1300 |
1300 |
|
Output(kg/h) |
150 |
250 |
350 |
500 |
800 |
1000 |
Our company is a company that engaged in providing all kind of plastic recycling machinery. We are especially specialized in manufacturing and exporting recycling machines such as:
Single-Shaft Shredder, Double-shaft Shreder, Four-shaft Shredder, Plastic Crusher, PET Flakes Washing and Recycling Machine, PE/PP Film/Woven Bags Washing and Recycling Line, PE/PP/PET/PA/PS/PC/ABS, etc. Pelletizing Line, Film/Woven Bags Squeezer; And the high-speed mixer and plastic pipe production line are also in our range of specialization, we are providing other relative auxiliary machines at the same time.
Innovation and creation is our constant goal, and our company has already had a complete machinery manufacturing system after years of technological breakthroughs.
We provide customers with high-quality equipments. Our headquarters is in Zhangjiagang city along the Yangtze River. We have administrative systems to strengthen our company. We also have a complete and scientific quality management system to ensure our product quality. Our goal is providing customers high-quality machines and creating win-win situation.
We welcome friends worldwide to our factory for visiting, guiding and doing business negotiations. We are looking forward to establishing long-term business relationships with you in the near future.
