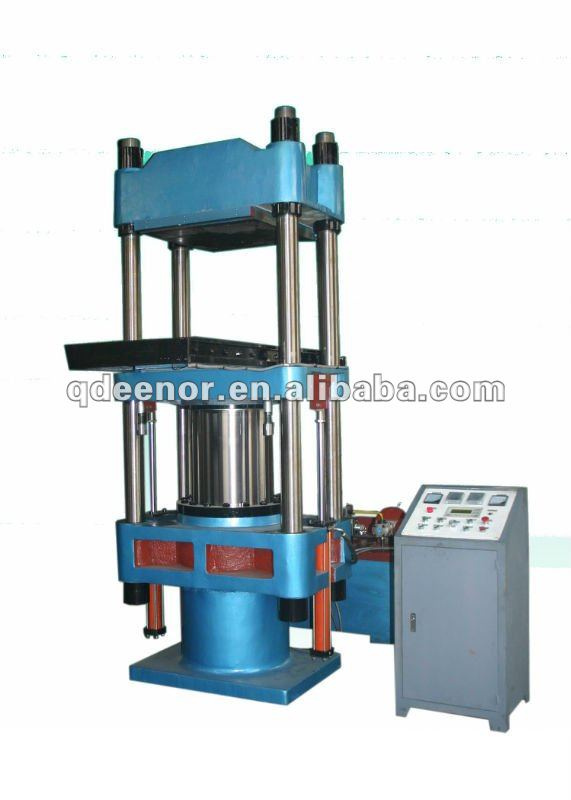

Four column type rubber tile hydraulic machine:
1-produce various of rubber tiles, by molds.
2-has 20 year experience.
This machine can open and push out the mould by itself, also, auto close the mould and let tas, time the vulcanizer. Etc can be finished by the pc, besides, the machine has a hand controller, it's really a advanced machine for rubber and plastic vulcanization.
|
Type |
XLB-DQ400*400*2 |
XLB-DQ660*600*2 |
XLB-DQ750*750*2 |
XLB-DQ1200*1200*2 |
|
Total pressure(MN) |
0.50 |
1.00 |
3.00 |
3.15 |
|
Plate size(mm) |
400x400 |
600x600 |
750x750 |
1200x1200 |
|
Working layer nuber |
2 |
2 |
2(4) |
2(4) |
|
Piston stroke(mm) |
250 |
250 |
250(500) |
250(500) |
|
Plate pressure(Mpa) |
3.1 |
2.8 |
5.3 |
2.2 |
|
Motor power(kw) |
2.2 |
3 |
5.5 |
5.5 |
Overall dimension
(L*W*H) |
2400*550*1500 |
1410*680*1750 |
1900*750*2200 |
1685*1320*2450 |
|
Weight (kg) |
1300 |
3500 |
8000 |
9500 |
Qingdao Eenor SCIENCE&TECHNOLOGY Co., Ltd is a professional production of rubber machinery company, has the independent production companies and import and export corporation. The company has the abundant technical force and rich production experience. Our main products: Plate vulcanizer, open mixing mill, mixer, tire vulcanizing machine, rubber cutting machine, rubber extrusion machine, rubber tile vulcanizing press, tyre crusher etc. Complete sets of equipment are: Ordinary conveyor belt production line, waste tyre reclaimed rubber powder production line. We can also according to the customers request; Design and manufacture all kinds of standard rubber machinery and equipment.
My company's products have passed the certification of the various, such as: Plate vulcanizing machine has passed the SGS certification, scrap tire rubber powder production equipment certified by BV certification (France). Product best-selling more than 30 provinces and regions, and exported to southeast Asia, the Middle East, Africa, Europe and the America and other 20 shelves and regions.
Our Company Motto: "THE HONESTRY IS THE ROOT, A PROMISE IS A PROMISE" the enterprise idea, adhere to market-oriented, providing customers with advanced products and quality services. Mr kIMSUN PANG(Chairman) together with all staff warmly welcome customers at home and abroad to the company to negotiate, guidance, my company is willing to first-class technology, first-class service, first-class quality, sincerely service for you.
