Description:

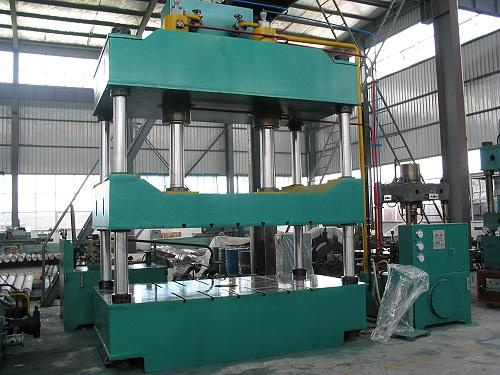

The purpose and characteristics of the hydraulic machine: This machine is suitable for plasticity, pressed powder material molding.
This machine has an independent power sector and electrical systems, and the use of centralized control buttons, craft movements with 220V automatic control. Can achieve jog, semi-automatic two modes of operation.
|
No. |
Item |
Unit |
400T |
|
1 |
Nominal force |
KN |
9450 |
|
2 |
Return force |
KN |
1500 |
|
3 |
Maximum working pressure liquid |
MPa |
25 |
|
4 |
Slider stroke |
mm |
1200 |
|
5 |
Slider maximum distance from table |
mm |
2000 |
|
6 |
Slow downward slide |
mm/s |
5-7 |
|
7 |
Rapid downward slide |
mm/s |
120-140 |
|
8 |
Return slider speed |
mm/s |
45 |
|
9 |
Maximum table Dimensions |
mm |
3200X2300 |
|
10 |
Total motor power |
KW |
3X22+7.5 |
